| Brand | LED Global |
|---|---|
| SKU | LG707 |
| EAN / Barcode | 4255929220404 |
| Product Type | Beacon |
| Mounting / Base Type | Flexi din. Pole mounted, high quality flexible rubber stem |
| Light Function / Color | Amber |
| Lens Color | Amber |
| Number of Flash Patterns | 4: Rotating, single flash, double flash, quad flash (ECE R65) |
| Operating Voltage | DC 12-24V |
| Power | 12LED*1W |
| Max current: | 0.95A@12V；0.42A@24V |
| ECE Approvals | CE, UKCA, ECE R10, ECE R65 TA1; R65: E9 00.6860; R10: E9 06.23345 |
| EMC | CISPR 25 Class 3 |

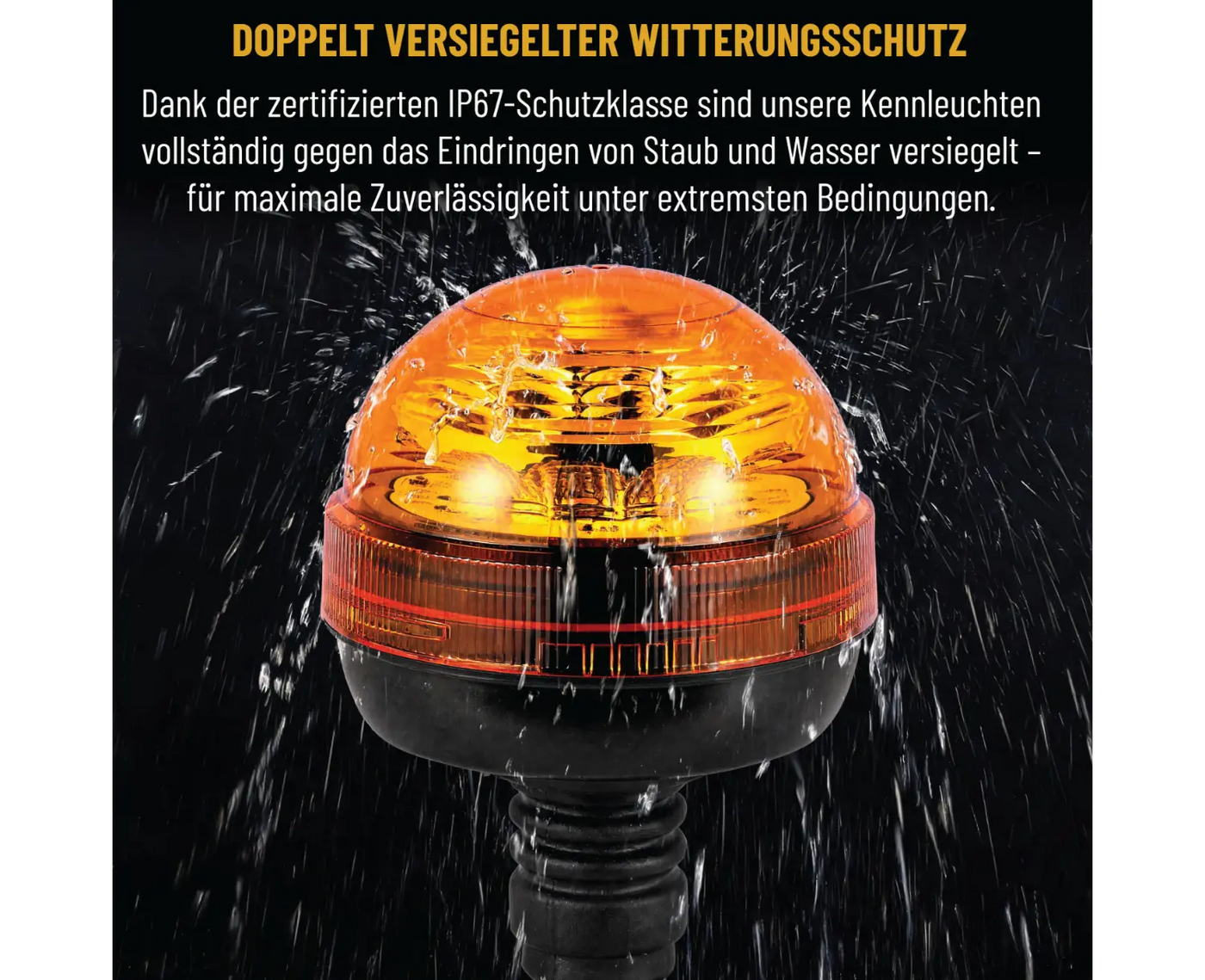

| Protection Rating (IP) | IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate with UV resistance |
| Lens Material | Polycarbonate with UV resistance |

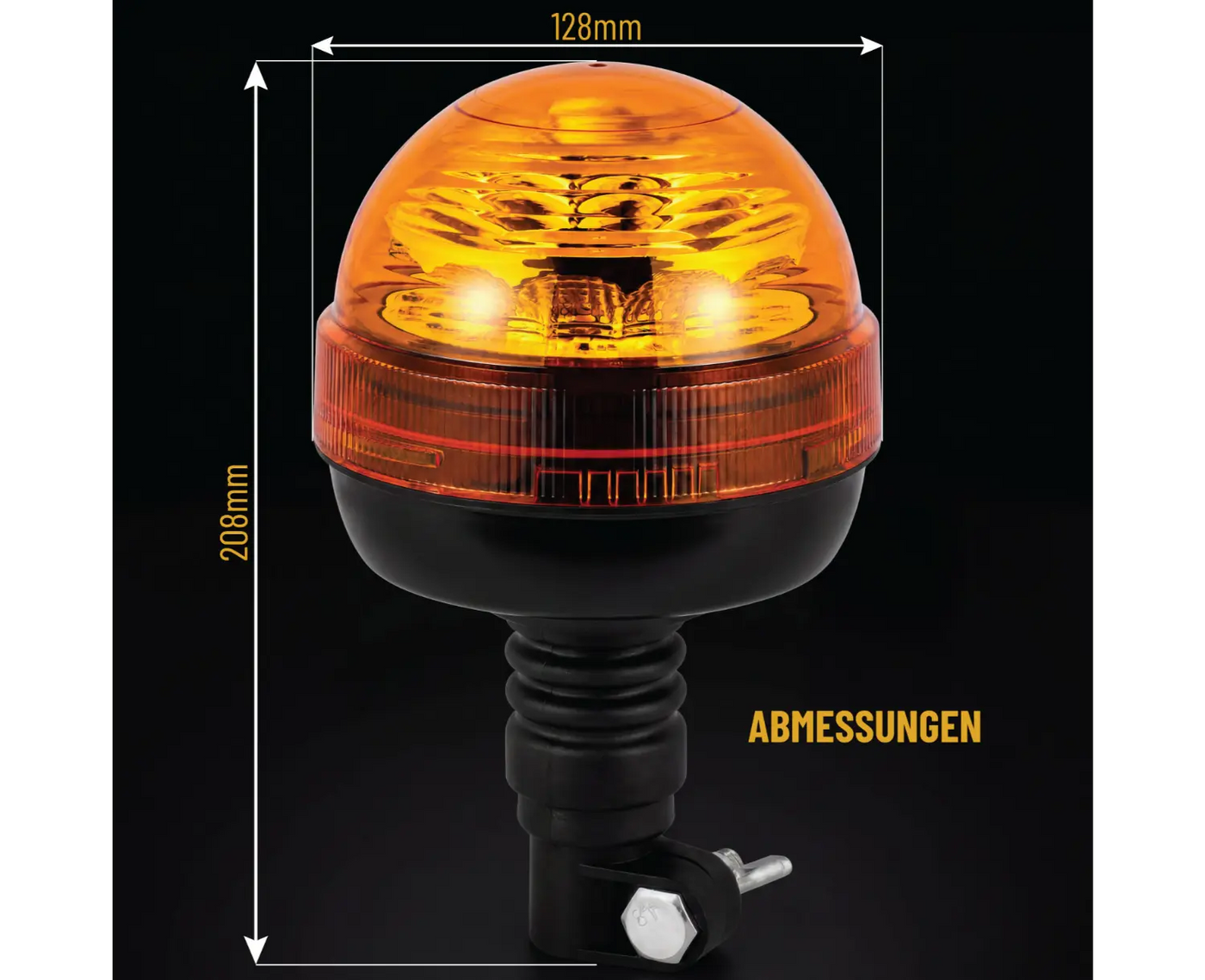

| Height (mm) | 208 mm |
| Diameter (mm) | 128 mm |
| Net weight | 420.5 g |
| Gross Weight | 523.6 g |
Warning Beacons

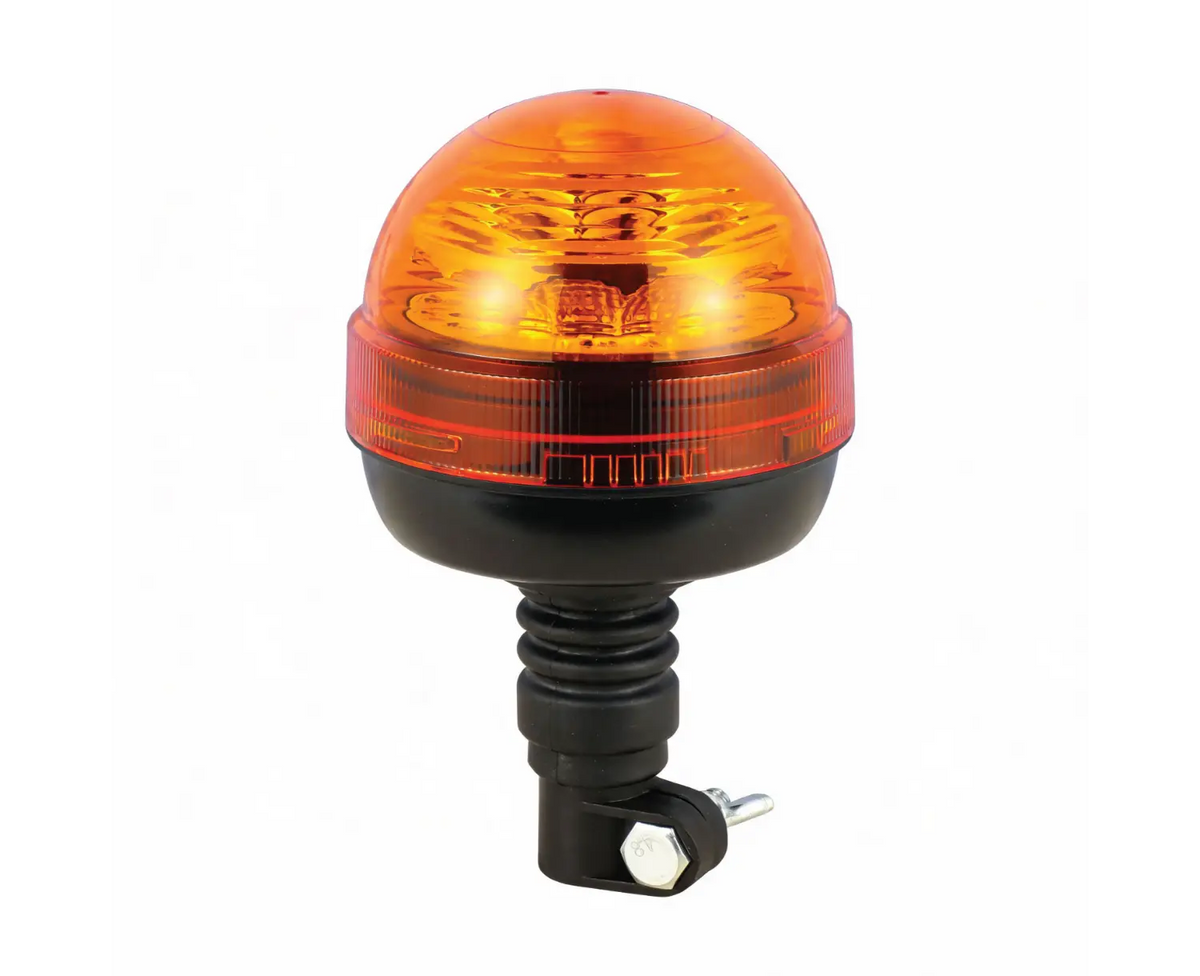

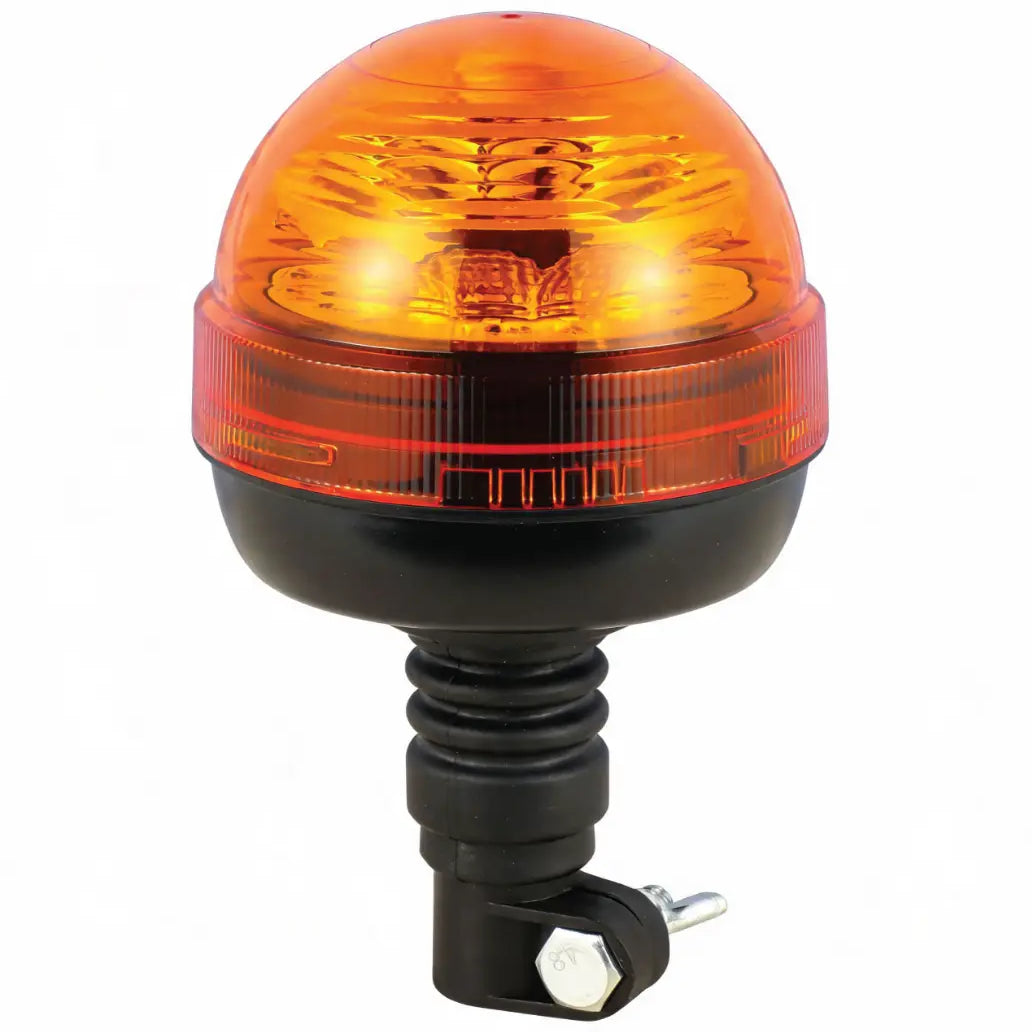

Orange Pole-Mounted Flashing Beacon Light 12V/24V – LG707
12W amber LED beacon with four flash patterns

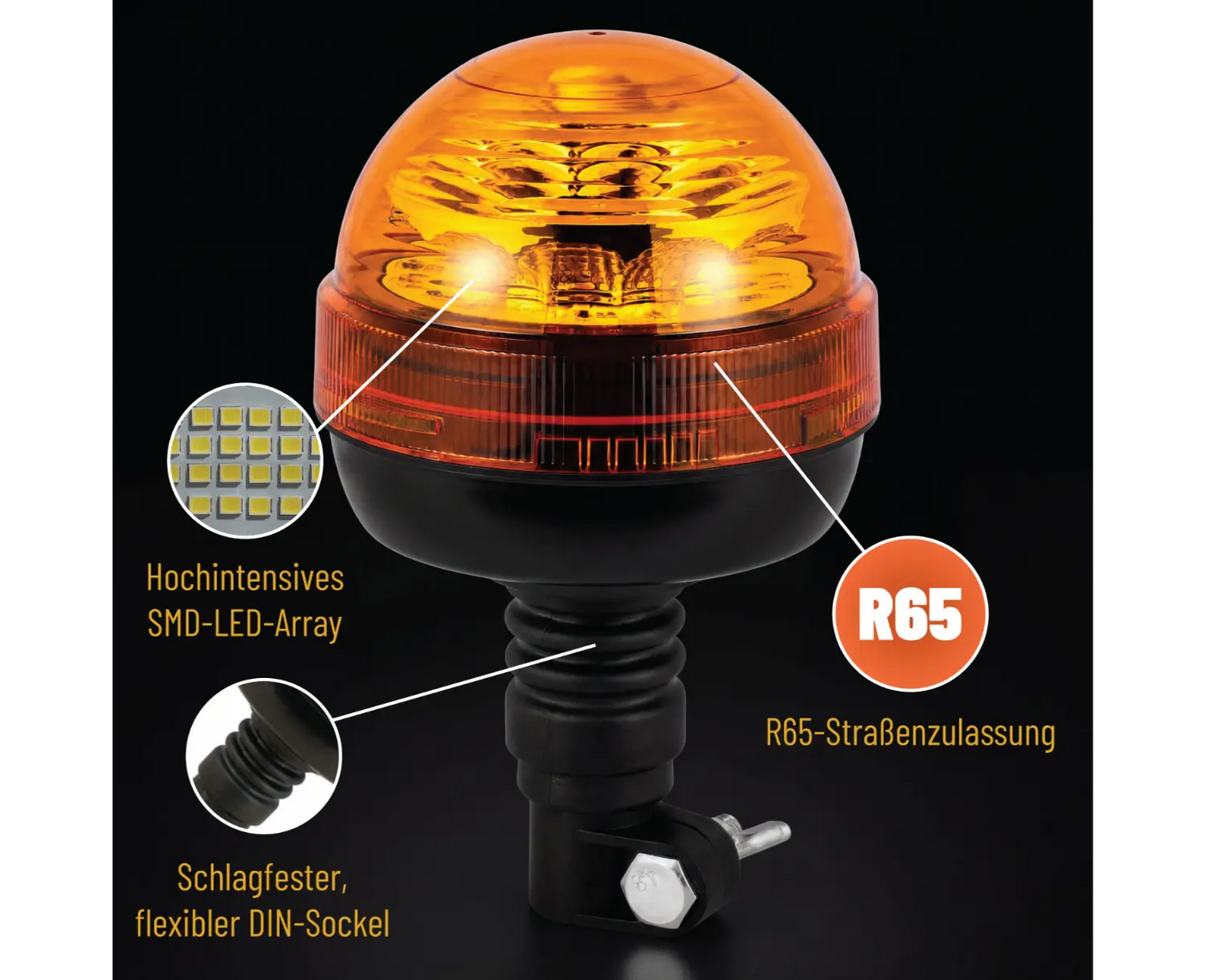

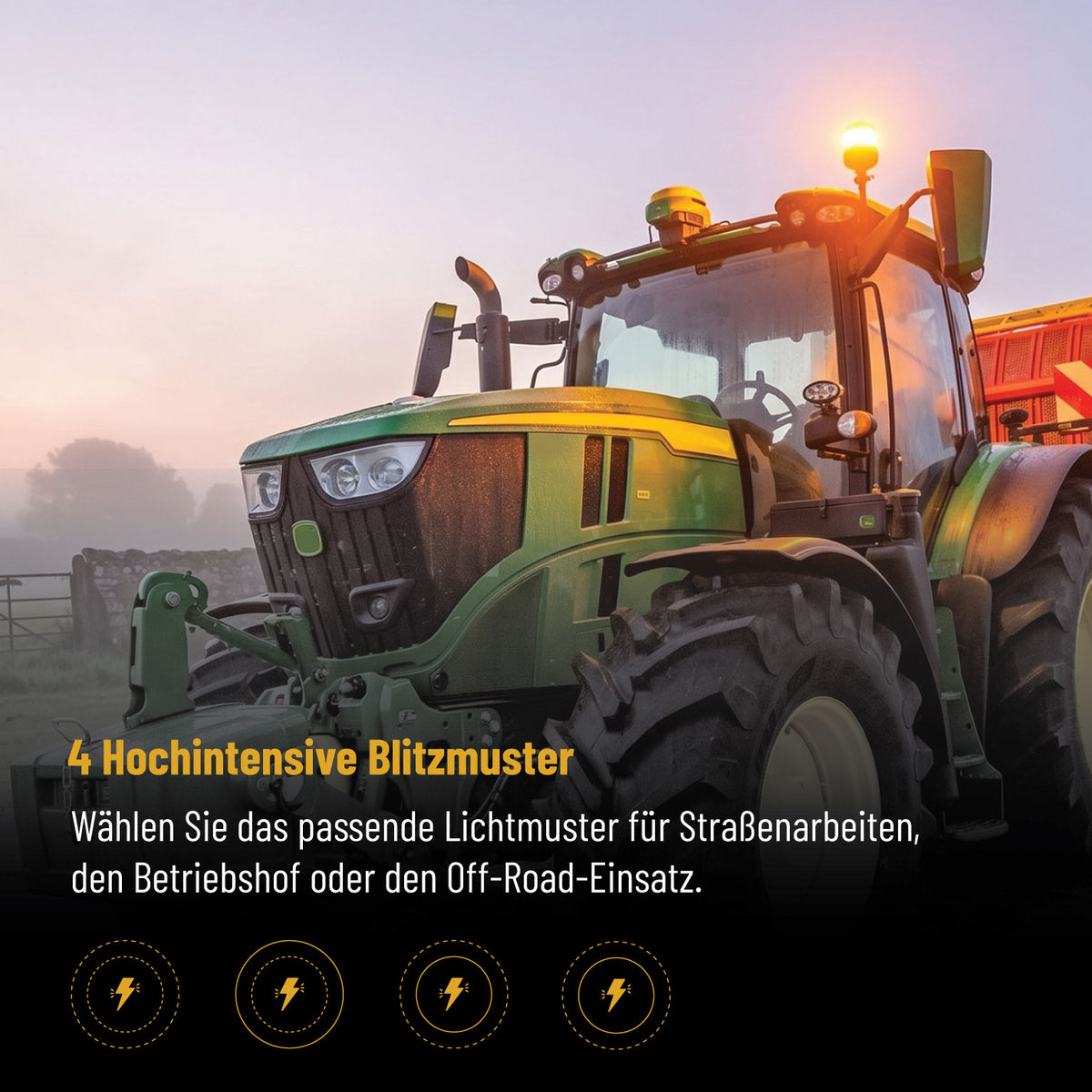

The LG707 uses twelve 1W LEDs and a flexible DIN pole-mount base. Four ECE R65 patterns are available: rotating, single flash, double flash and quad flash. It operates on 12–24V DC.

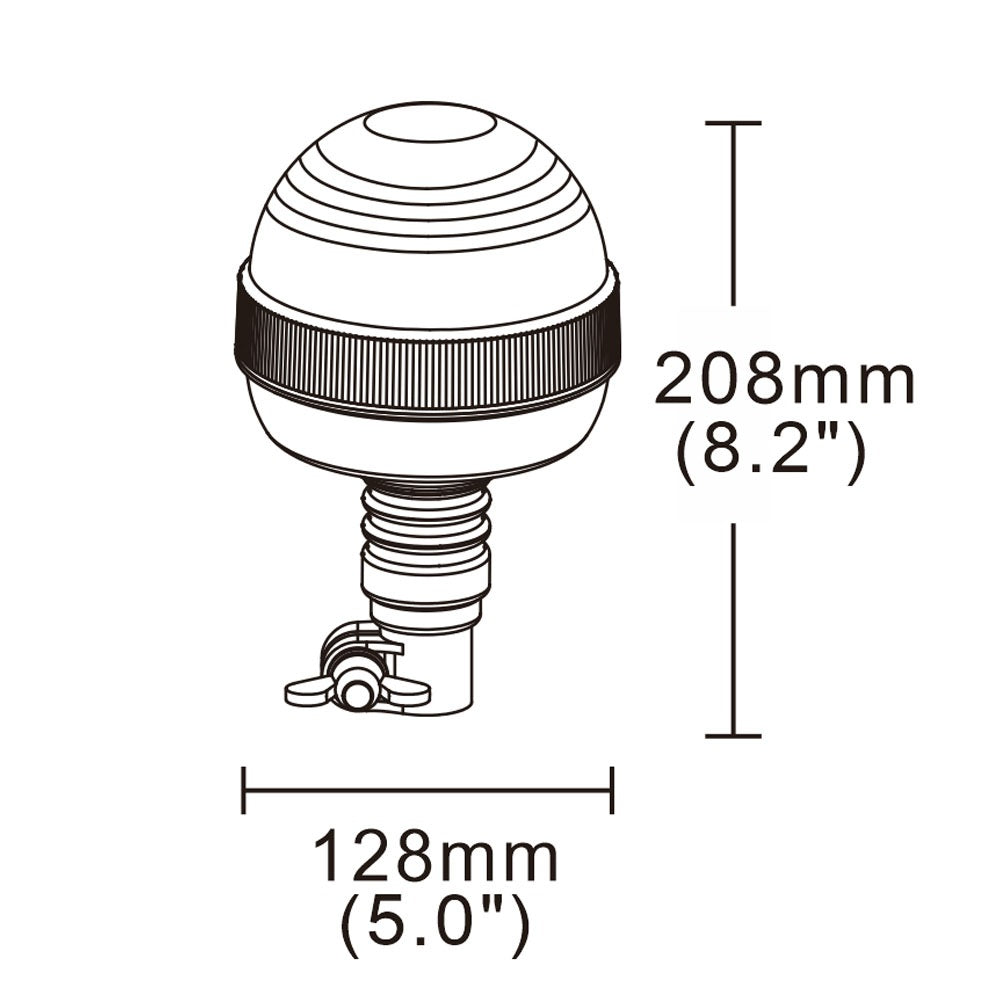

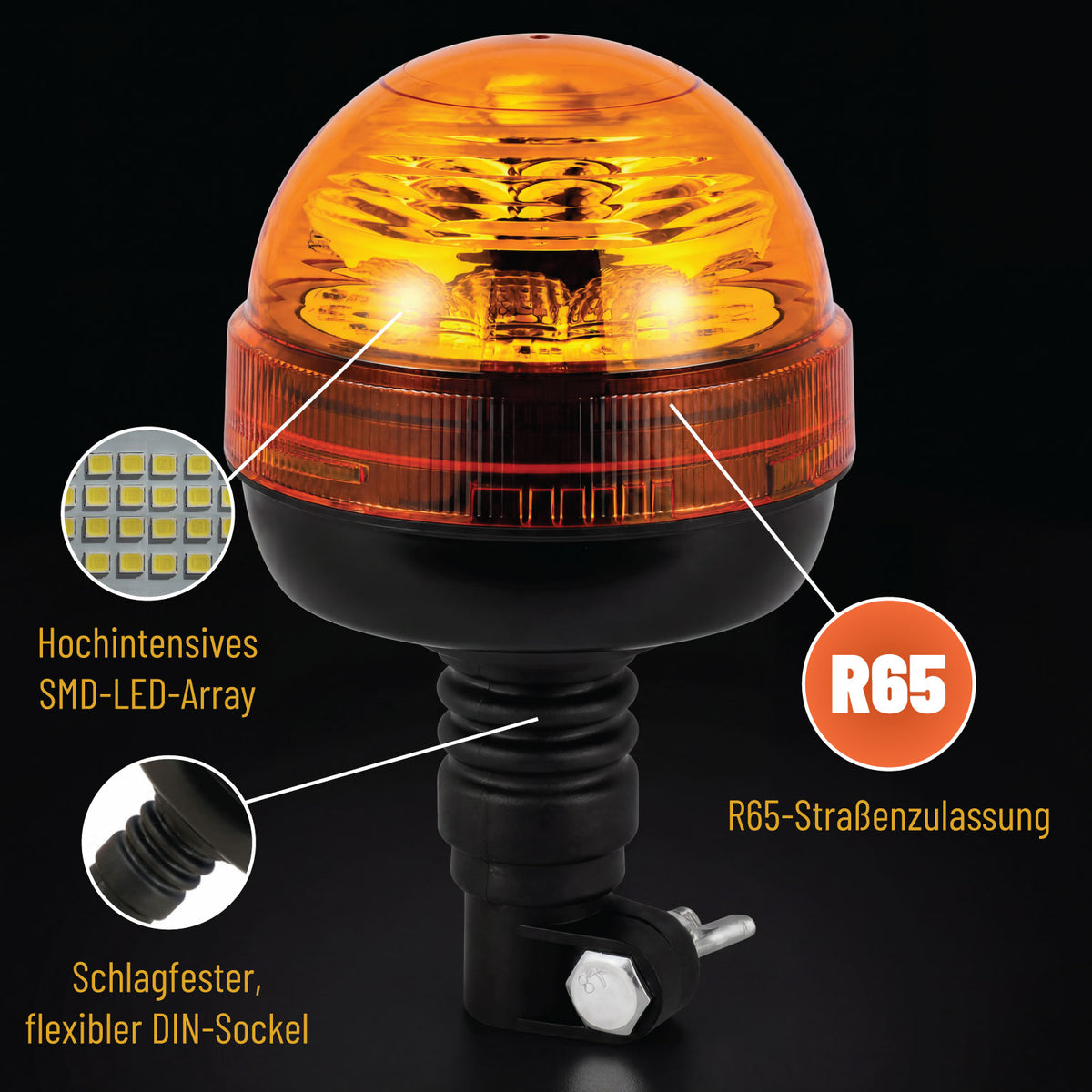

The UV-resistant polycarbonate lens and housing are IP67 rated. ECE R65 TA1 and ECE R10 approvals, CISPR25 Class 3 suppression and reverse-polarity protection are specified. The flexible rubber stem helps absorb contact with obstacles. Overall dimensions are 208 mm high and 128 mm in diameter.
£23.00
● In stock
