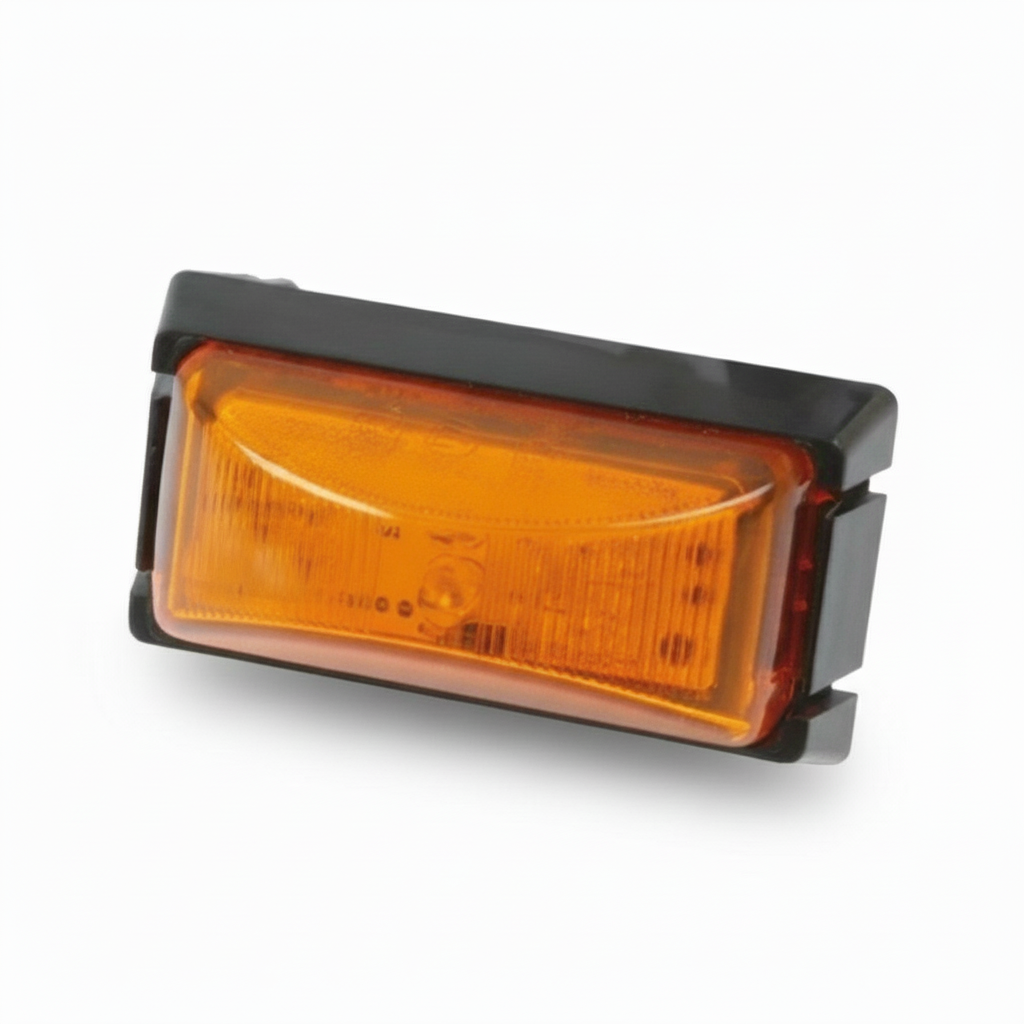

LED Rectangular Marker Light with 6 Diodes (AMBER) - LG104

LED Rectangular Marker Light with 6 Diodes (Amber) - LG104 is a compact, flat surface-mount LED marker/position light designed to improve side visibility on commercial vehicles and machinery. Built with a durable H/D plastic housing and PMMA lens, it is suited to everyday road spray and wash-down environments, with a sealed IP67 design. The lamp is pre-wired for straightforward installation and supports both 12V and 24V systems via a wide 10-30 V DC operating range.

Using 6 high-intensity OSRAM LEDs (6 pcs x 0.1 W), the LG104 delivers an even amber marker output with low power draw (0.6 W nominal). It is ECE approved / e-mark certified for road-use lighting applications when installed in a compliant layout, and includes EMC / radio suppression to help reduce interference with onboard electronics.

• Model/SKU: LG104
• Light color: Amber
• Voltage: 10-30 V DC
• Power: 0.6 W nominal
• Luminous flux: 14.4 lumens
• LEDs: 6 OSRAM LEDs
• Ingress protection: IP67

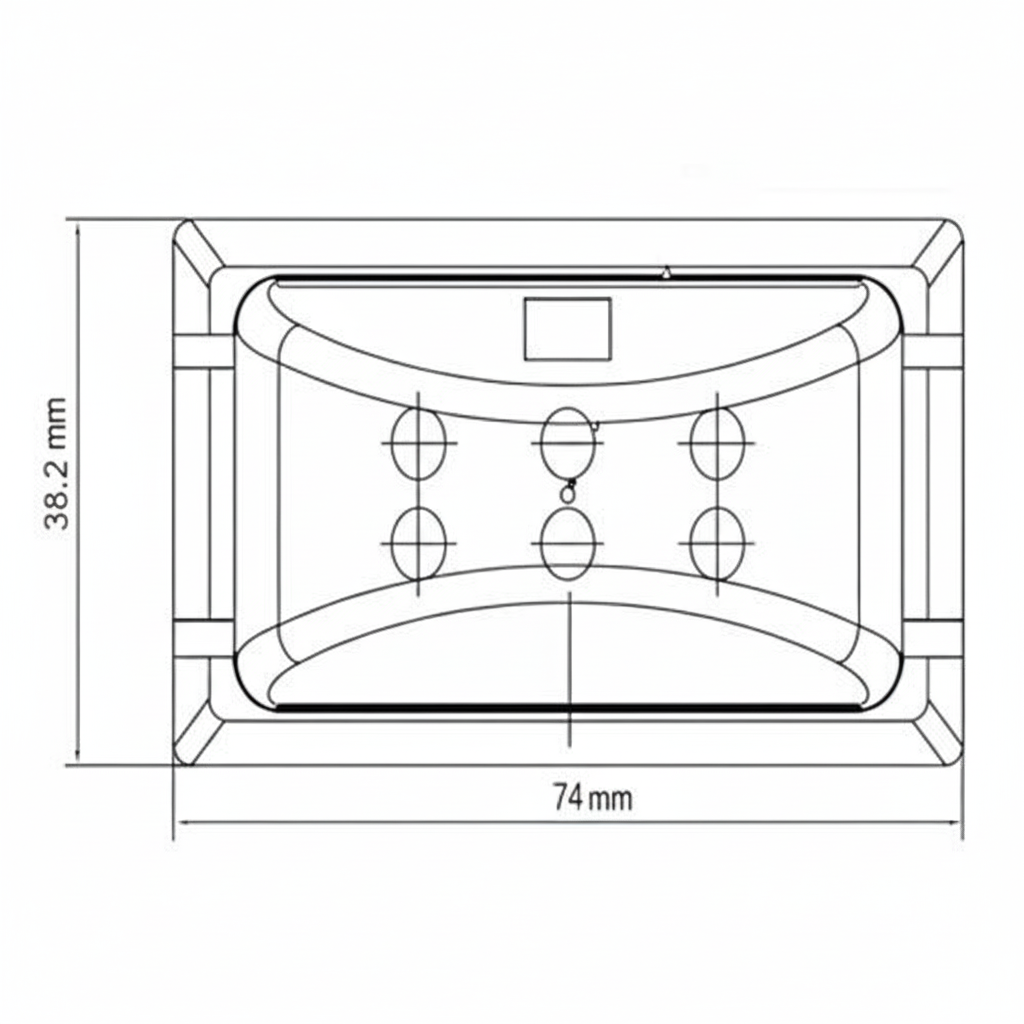

• Dimensions: 73 mm (Width) x 37 mm (Height) x 30 mm (Thickness)

Common uses: side marker lighting on trucks, trailers, rigid bodies, agricultural equipment, and construction/plant machinery.

Included: 1x pre-wired LED marker light.
