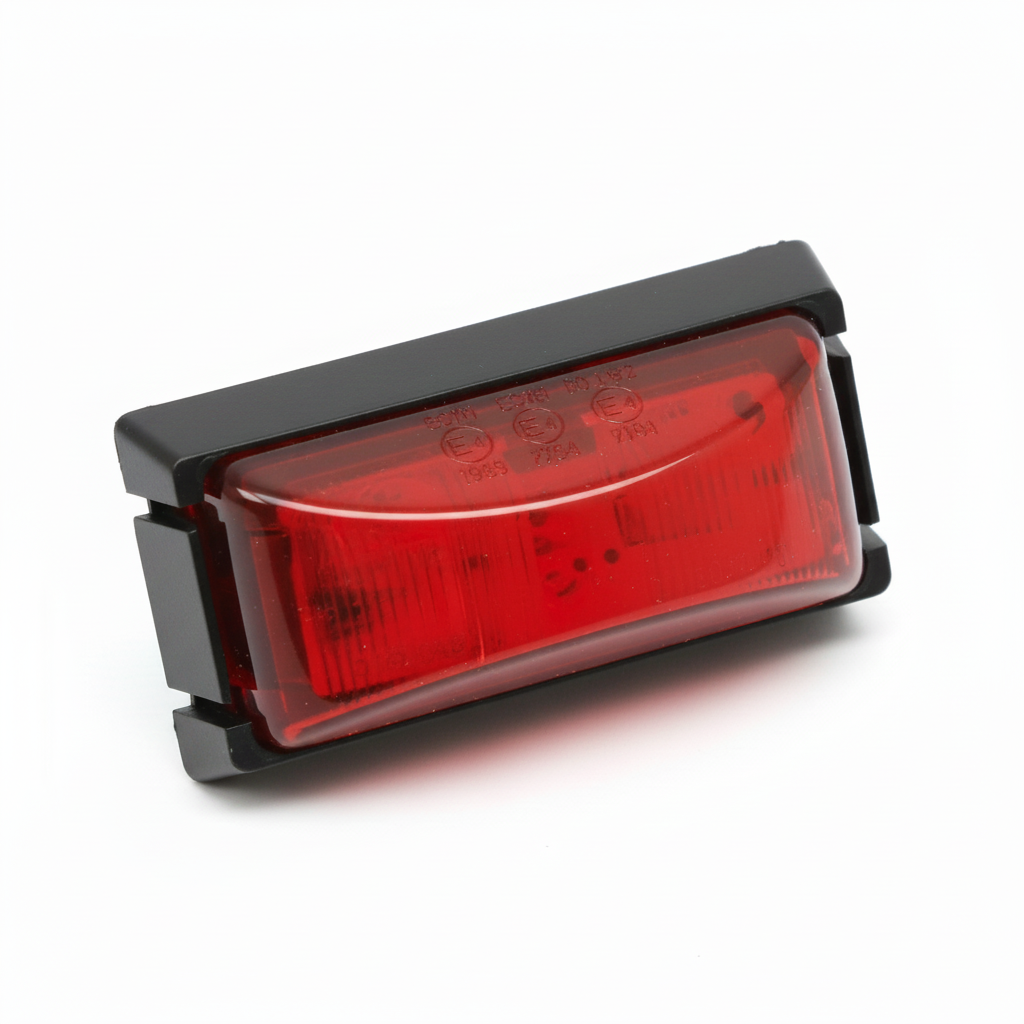

LED Rectangular Marker Light with 6 Diodes (RED) - LG105

LED Rectangular Marker Light with 6 Diodes (Red) - LG105 is a compact, flat surface-mount side marker lamp for commercial vehicles and machinery. Built with a durable plastic housing and PMMA lens, it provides clear red marking for improved visibility on trucks, trailers, agricultural equipment, and plant. The pre-wired design helps speed up installation, while the wide 10-30 V DC input suits both 12 V and 24 V systems.

Designed for on-road and off-road use, the LG105 uses 6 high-intensity OSRAM LEDs and features IP67 splashproof sealing plus EMC/radio suppression to support modern vehicle electronics.

• Model / SKU: LG105
• Light color: Red
• LEDs: 6 x 0.1 W high-intensity OSRAM LEDs
• Nominal power: 0.6 W
• Voltage: 10-30 V DC
• Luminous flux: 14.4 lumens
• Ingress protection: IP67 splashproof
• Certifications: ECE approved / e-mark, EMC / radio suppression

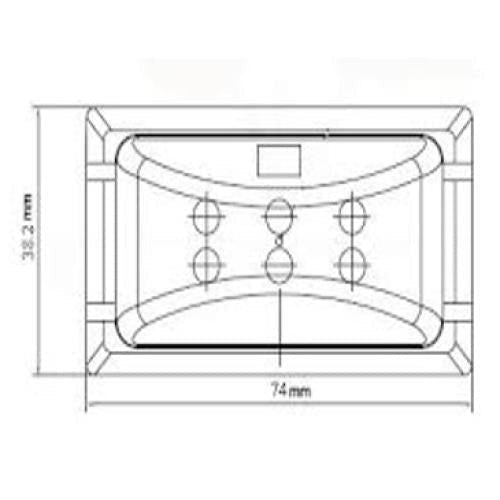

• Dimensions: 73 mm (Width) x 37 mm (Height) x 30 mm (Thickness)
• Wiring: Pre-wired

Includes: 1 x LED rectangular red marker light (LG105).
