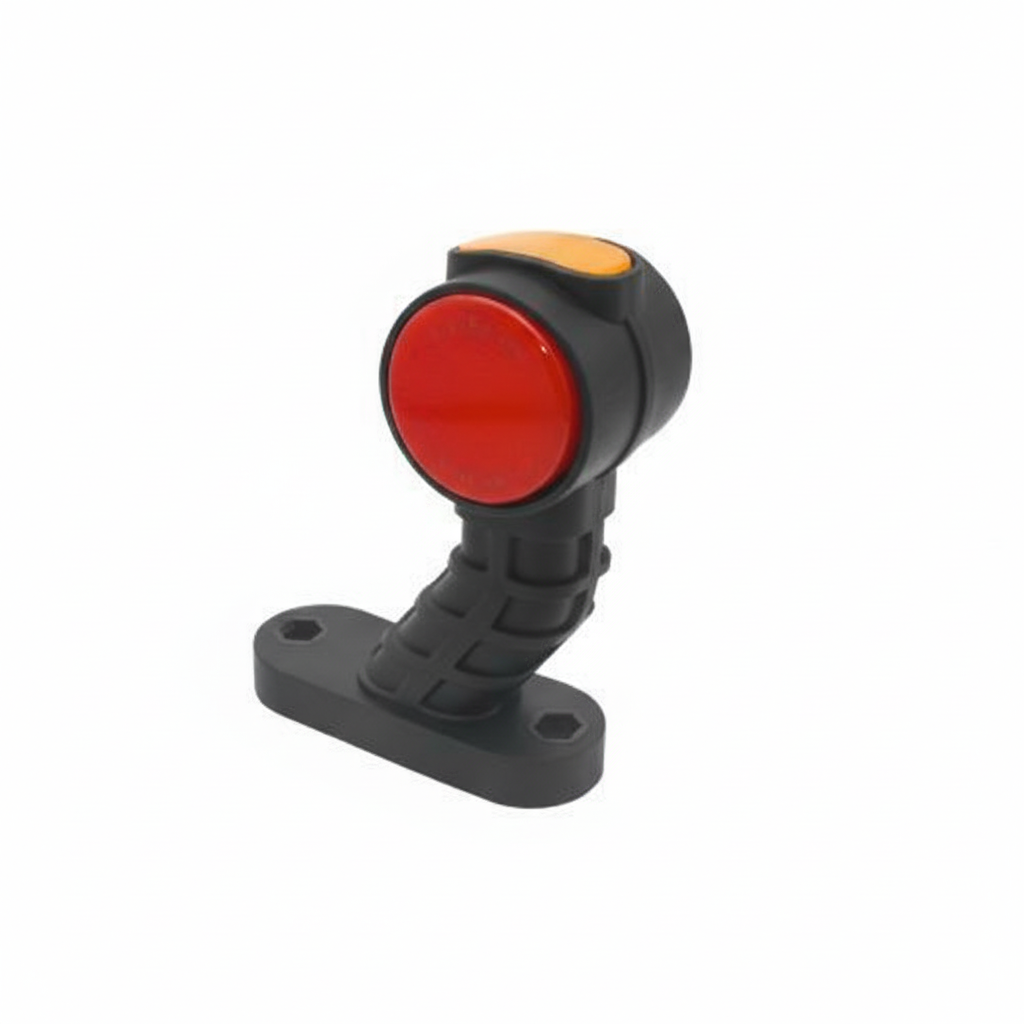

LED Stalk Marker Light Right – LG164R

The LG164R LED stalk marker light is a right-hand marker lamp designed for trailers, plant, agricultural machinery, commercial vehicles and fleet bodies. It combines front, rear and side marker functions in one compact stalk-mounted unit, helping improve vehicle outline visibility from multiple angles.

With 10–30 V DC operation, IP67 protection, ECE approval and EMC R10 compliance, the LG164R is suitable for both 12 V and 24 V vehicle systems. It is built for demanding outdoor use where reliable marker lighting, simple installation and road-ready performance are important.

Right-Hand LED Stalk Marker Light

The LG164R is designed for the right-hand side of vehicles, trailers and machinery. Its stalk design helps position the light away from the bodywork, improving visibility around corners, panels, brackets and wide vehicle edges.

This makes it a practical marker light for trucks, trailers, recovery vehicles, tippers, plant carriers, agricultural trailers and utility fleets.

Front, Rear and Side Marker Functions

The lamp combines three visibility functions in one unit. The rear position light uses 6 LEDs with 1 W red output, the front position light uses 6 LEDs with 1 W white output, and the side marker uses 3 LEDs with 0.5 W amber output.

This combined design helps reduce the number of separate lamps required while keeping the vehicle clearly visible from the front, side and rear.

Suitable for 12 V and 24 V Systems

The wide 10–30 V DC voltage range makes the LG164R suitable for both 12 V and 24 V vehicle electrical systems. This is useful for mixed fleets that include light commercial vehicles, trailers, HGVs, agricultural machinery and construction equipment.

The lamp is designed to provide stable LED output across normal vehicle voltage conditions.

Built for Harsh Outdoor Conditions

The LG164R is rated IP67, helping protect the lamp against dust, rain, spray, road grime and temporary water exposure. It is suitable for vehicles that work in wet, muddy and demanding outdoor environments.

The operating temperature range of -40°C to +65°C supports reliable use in cold winters, hot summers, depots, farms, construction sites and road transport applications.

ECE Approved and EMC R10 Compliant

The marker light is ECE approved and EMC R10 compliant, supporting road-ready installation where correctly fitted. EMC compliance helps reduce the risk of electrical interference with radios, CANbus systems and other sensitive vehicle electronics.

This makes the LG164R suitable for modern commercial vehicles and professional fleet installations.

Simple Bolt Mounting

The bolt mounting design allows secure installation on brackets, panels, trailer bodies, mudguards and vehicle frames. The stalk size is 54 × 132 mm, while the base size is 101.9 × 37.5 mm.

This gives installers a solid mounting footprint and enough stalk projection for clear side visibility.

Key Features

• Right-hand LED stalk marker light.
• Combines front, rear and side marker functions.
• Rear position light with 6 LEDs, 1 W red output.
• Front position light with 6 LEDs, 1 W white output.
• Side marker with 3 LEDs, 0.5 W amber output.
• 10–30 V DC input for 12 V and 24 V systems.
• Red, amber and white LED colours in one unit.
• IP67 protection against dust, rain, spray and temporary water exposure.
• Operating temperature range from -40°C to +65°C.
• ECE approved for road-ready marker light applications.
• EMC R10 compliant to help reduce electrical interference.
• Bolt mounting design for secure installation.
• Stalk size: 54 × 132 mm.
• Base size: 101.9 × 37.5 mm.

Ideal Applications

• Truck and trailer right-hand marker lighting.
• Curtainsiders, flatbeds, box bodies and low loaders.
• Agricultural trailers, implements and forestry machinery.
• Recovery trucks, tippers and plant carriers.
• Municipal vehicles, gritters, refuse trucks and utility fleets.
• Construction site trailers and plant equipment.
• Commercial vehicles needing improved front, side and rear outline visibility.

Why Choose the LG164R LED Stalk Marker Light?

The LG164R is designed for professional users who need reliable right-hand marker lighting with clear front, rear and side visibility. Its multi-voltage operation, IP67 protection, ECE approval, EMC R10 compliance and robust stalk-mounted design make it a practical choice for trailers, commercial vehicles and working machinery.

For fleet managers, bodybuilders, farmers, contractors and auto electricians, this right-hand LED stalk marker light offers a dependable, low-maintenance solution for improving vehicle outline visibility.

Important Fitment Note

Please confirm the required side, mounting position, wiring layout, voltage system and vehicle lighting requirements before installation. The marker light should be securely mounted and positioned in accordance with local road lighting regulations.
