Agricultural Lighting
Tail Light Details
| Description | Details |
|---|---|
| Model / SKU | LG528 |
| Application | LED Trailer Tail Light Combination |
| Functions | Stop / Tail / Dynamic Indicator / Fog / Reverse / Reflector |
| Operating Voltage | 9-30 V DC |
Protection & Approvals
| Description | Details |
|---|---|
| Lifetime | 50,000 h |
| Ingress Protection | IP68 |
| Approvals | ECE R10, R3, R6, R7, R23, R38, R91 |
| EMC Approval | CISPR25 Class 4 (Radio Frequency Suppression) |
Dimensions
| Description | Details |
|---|---|
| Lamp Width | 284 mm |
| Lamp Height | 100 mm |
| Lamp Thickness | 32 mm |

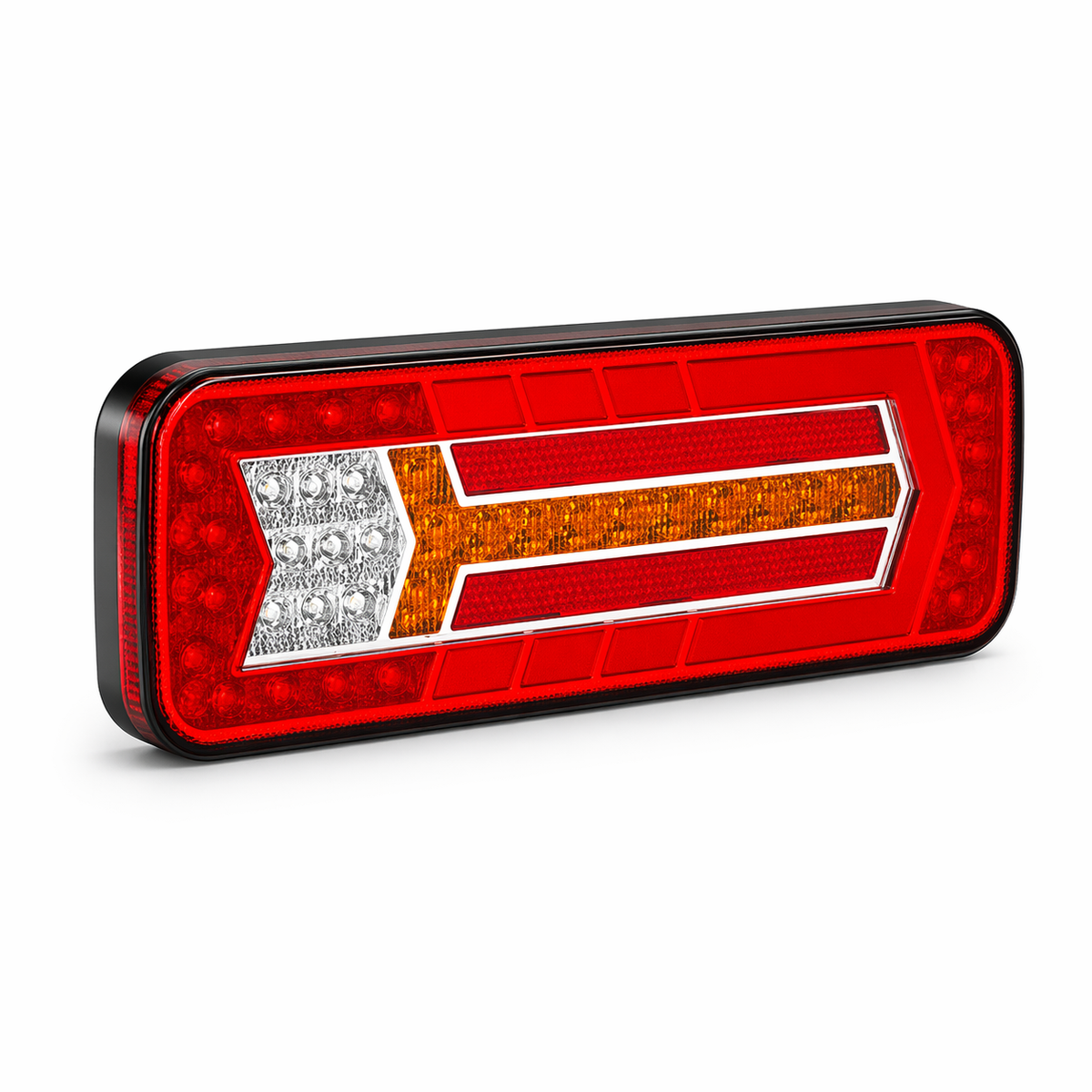

The LG528 LED universal combination tail light is a professional rear lighting solution designed for trailers, trucks, vans, agricultural machinery, plant equipment and fleet vehicles. It combines stop light, tail light, dynamic indicator, fog light, reverse light and reflector functions in one slim, durable unit.
Built for 9–30 V DC systems, this LED tail light is suitable for both 12 V and 24 V vehicles. With full ECE approvals, ECE R10 EMC compliance, CISPR 25 Class 4 performance and IP68 ingress protection, the LG528 is made for demanding European road, farm and construction environments.
The LG528 helps reduce the need for multiple separate rear lamps by combining key rear lighting functions into one compact housing. This creates a cleaner installation, reduces wiring points and helps lower the risk of faults caused by loose connections, water ingress or damaged lamp units.
With a slim size of 284 × 100 × 32 mm, the lamp sits neatly against trailer bodies, truck rear panels, machinery frames and custom vehicle builds. Its low-profile design makes it easier to fit in tight spaces while reducing exposure to knocks and impact during daily use.
The built-in dynamic amber indicator provides a modern sequential signal pattern that helps improve visibility and driver awareness. This is especially useful in heavy traffic, poor weather, dusty yards, construction sites and rural roads where clear signalling is essential.
The lamp also provides red stop and tail light functions, a white 6000 K reverse light and an integrated reflector. This gives clear rear visibility for braking, turning, reversing and general road presence in one complete lighting unit.
The LG528 is sealed to IP68, protecting it against dust, water, road spray, mud, salt and washdown conditions. This makes it suitable for vehicles and trailers that operate in wet, dirty and high-use environments throughout the year.
Long-life LED technology provides up to 50,000 hours of service life, helping reduce bulb changes, maintenance costs and vehicle downtime. For fleet operators, workshops and trailer owners, this makes the LG528 a practical upgrade from older halogen or multi-lamp rear lighting setups.
The LG528 is approved to ECE R3, R6, R7, R23, R38 and R91 for rear lighting functions, with ECE R10 approval for electromagnetic compatibility. It is also tested to CISPR 25 Class 4, helping reduce interference with radios, GPS, telematics, CANbus systems and other sensitive vehicle electronics.
This makes the lamp a strong choice for modern commercial vehicles and agricultural machines where reliable lighting and clean electronic performance are both important.
| Product Code | LG528 |
| Product Type | Universal LED Combination Tail Light |
| Functions | Stop, Tail, Dynamic Indicator, Fog, Reverse, Reflector |
| Voltage | 9–30 V DC |
| Vehicle Systems | 12 V and 24 V |
| Indicator Type | Dynamic Sequential Amber Indicator |
| Reverse Light Colour | 6000 K White |
| Ingress Protection | IP68 |
| EMC Rating | CISPR 25 Class 4 |
| Approvals | ECE R3, R6, R7, R10, R23, R38, R91 |
| LED Lifetime | Up to 50,000 Hours |
| Dimensions | 284 × 100 × 32 mm |
| Connection | Socket with 50 cm Cable |
| Wiring Colours | Black Earth, Brown Tail, Red Brake, Yellow Indicator, Blue Reverse, Green Fog |
The LG528 is a strong upgrade for operators who need a reliable, road-compliant and low-maintenance LED rear light. It brings multiple rear lighting functions into one slim housing, helping improve visibility while keeping installation clean and efficient.
For workshops, fleet managers, farmers, trailer builders and commercial vehicle operators, the LG528 helps reduce downtime, improve road safety and keep vehicles visible in demanding daily working conditions.
