| Brand | LED Global |
|---|---|
| SKU | LG706 |
| EAN / Barcode | 4255929205227 |
| Product Type | Halogen Rotating Warning Beacon |
| Mounting / Base Type | Flexi DIN Mount |
| Scope of Delivery (Included in Box) | 1x Halogen Warning Beacon, 1x Spare 12V H1 Bulb, User Manual |
| Ideal Applications | Agricultural Machinery, Tractors, Construction Equipment, Commercial & Utility Vehicles |
| Light Function / Color | Rotating Flash / Amber |
| Lens Color | Amber |
| Housing Color | Black |
| Number of Flash Patterns | 1 (Rotating) |
| Names of Flash Patterns | Rotating |
| Theoretical Power (Watts) | 55 W (12V) |
| Actual Power Consumption (Watts) | 55 W @ 12V |
| Current Draw (Amps @ 12V / 24V) | 4.6A @ 12V |
| Operating Voltage Range | DC 12V |
| Connection Type / Cable Length | Flexi DIN Connector (Pipe Mount) |
| ECE Approvals | ECE R65 (TA1 - E9*65R00/11*6559*01) |
| EMC / Suppression Rating | ECE R10 (E9-10R-06.1898 Ext.02), CISPR 25 Class 3, CE, UKCA |
| Protection Rating (IP) | IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate (PC) with UV resistance |
| Lens Material | Polycarbonate (PC) with UV resistance |

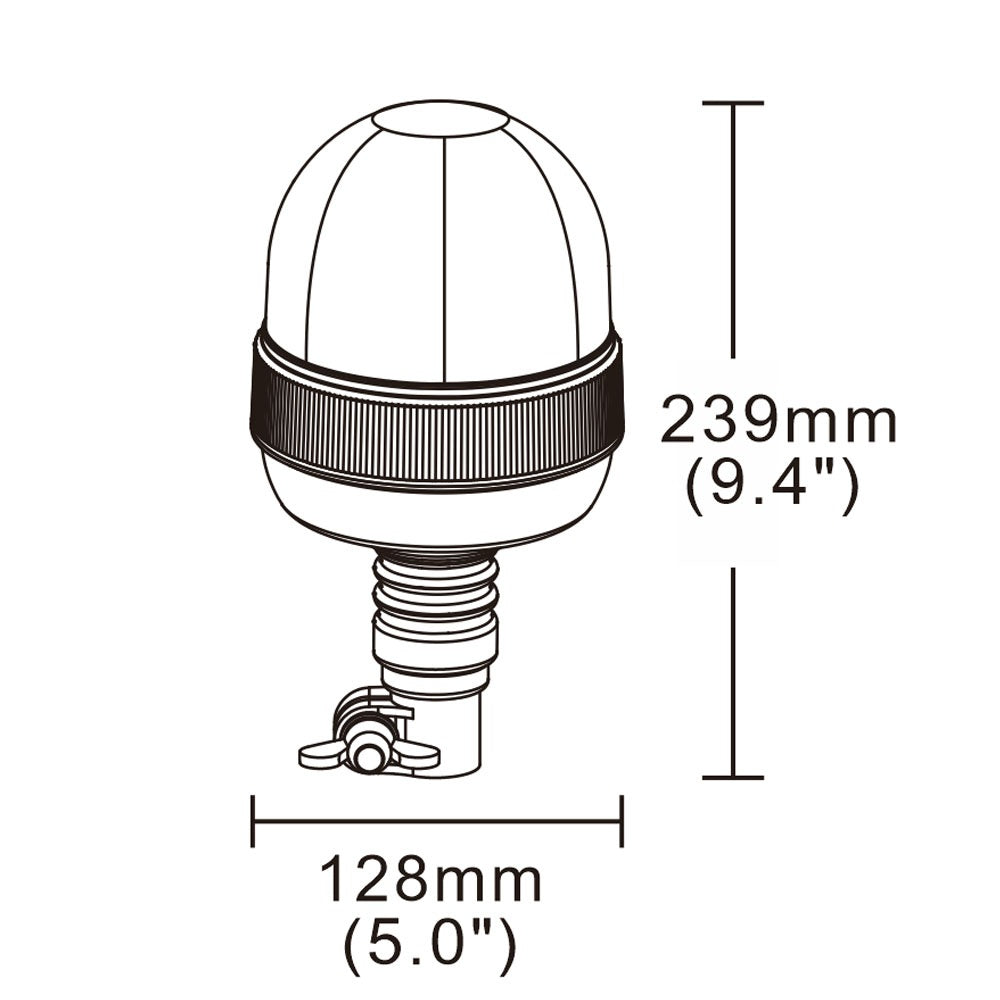

| Height (mm) | 239 mm |
| Diameter (mm) | 128 mm |
Bulb Beacons

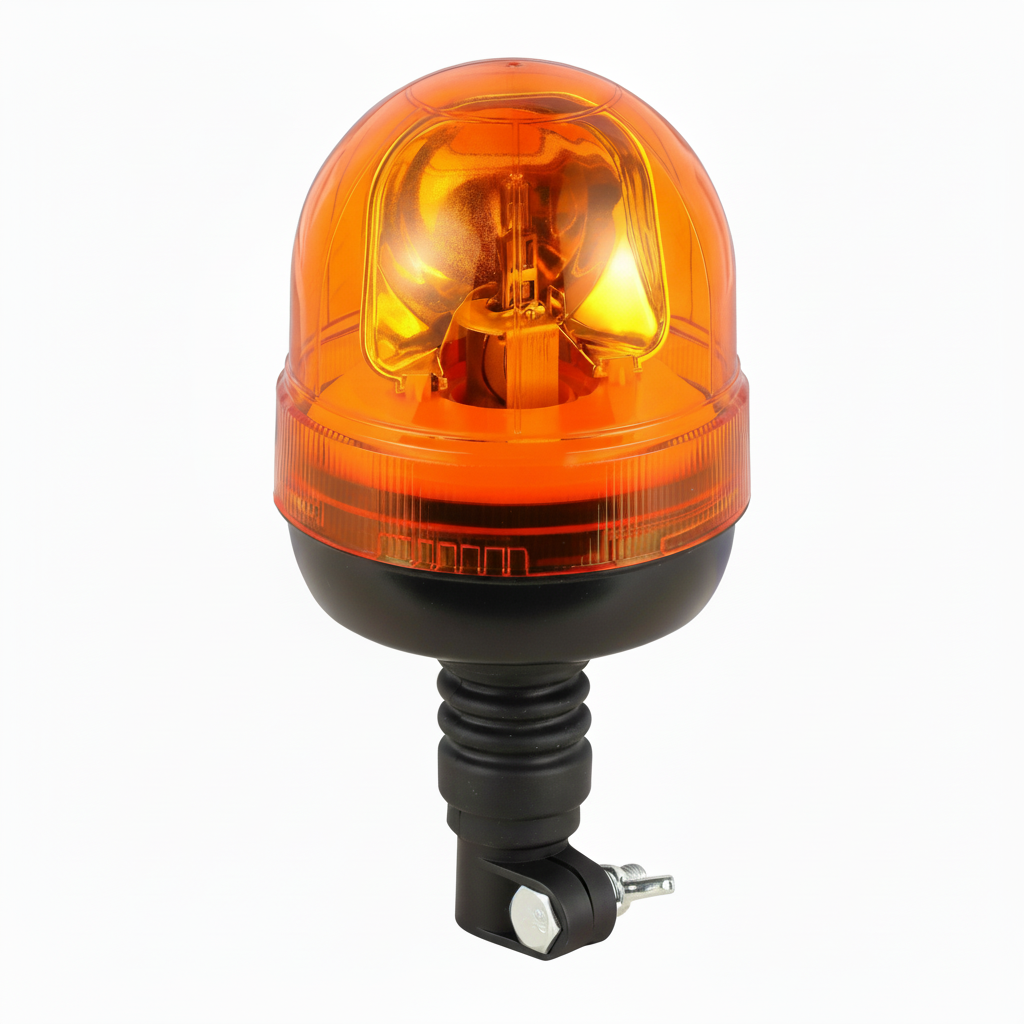

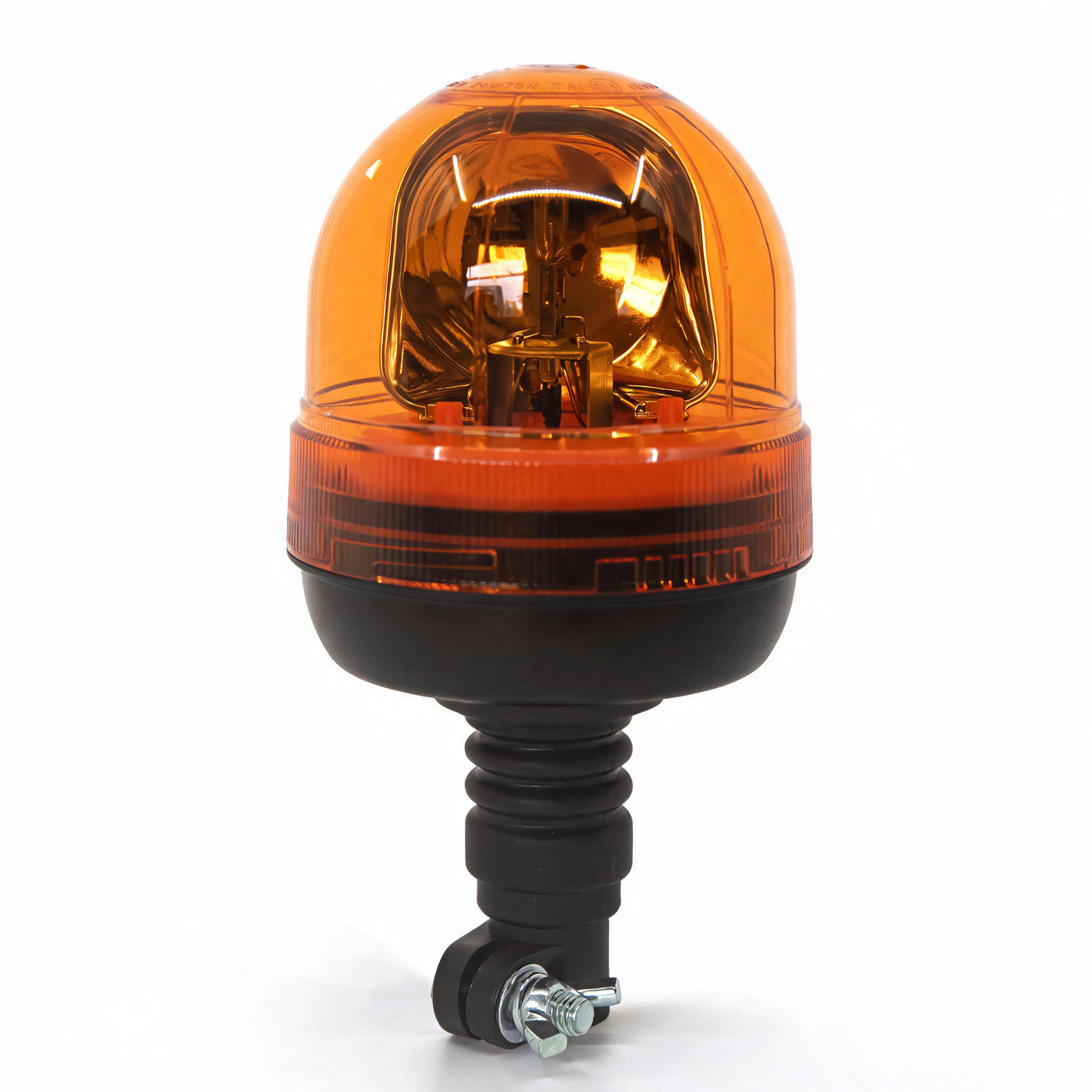

12V Halogen Rotating Warning Beacon, Flexi DIN Mount - LG706
12V halogen rotating beacon with flexible DIN mount

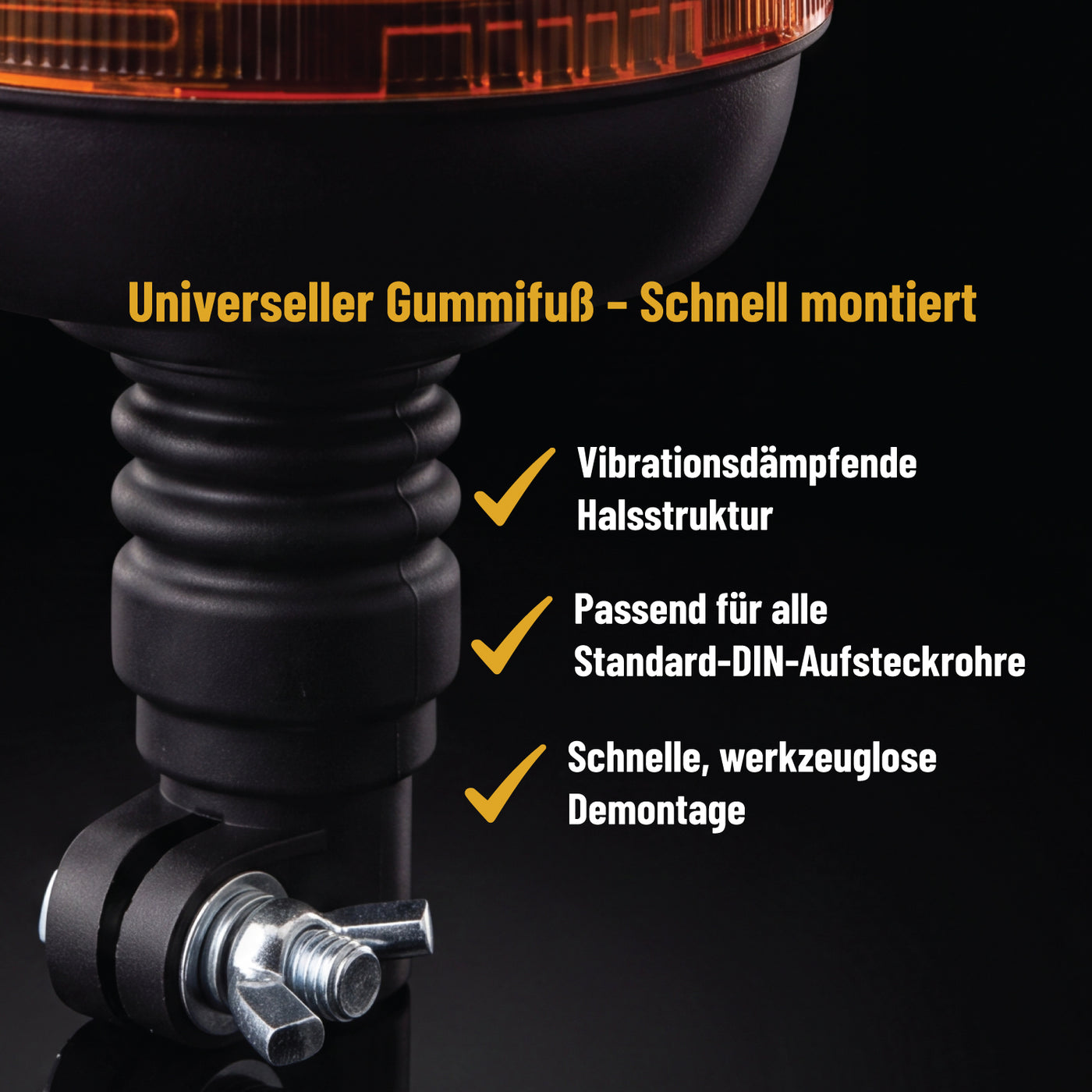

The LG706 provides amber rotating warning light using a 12V H1 55W bulb. It is supplied with a fitted bulb, an additional spare 12V H1 bulb and a user manual. The flexible DIN base fits a compatible mounting pole.

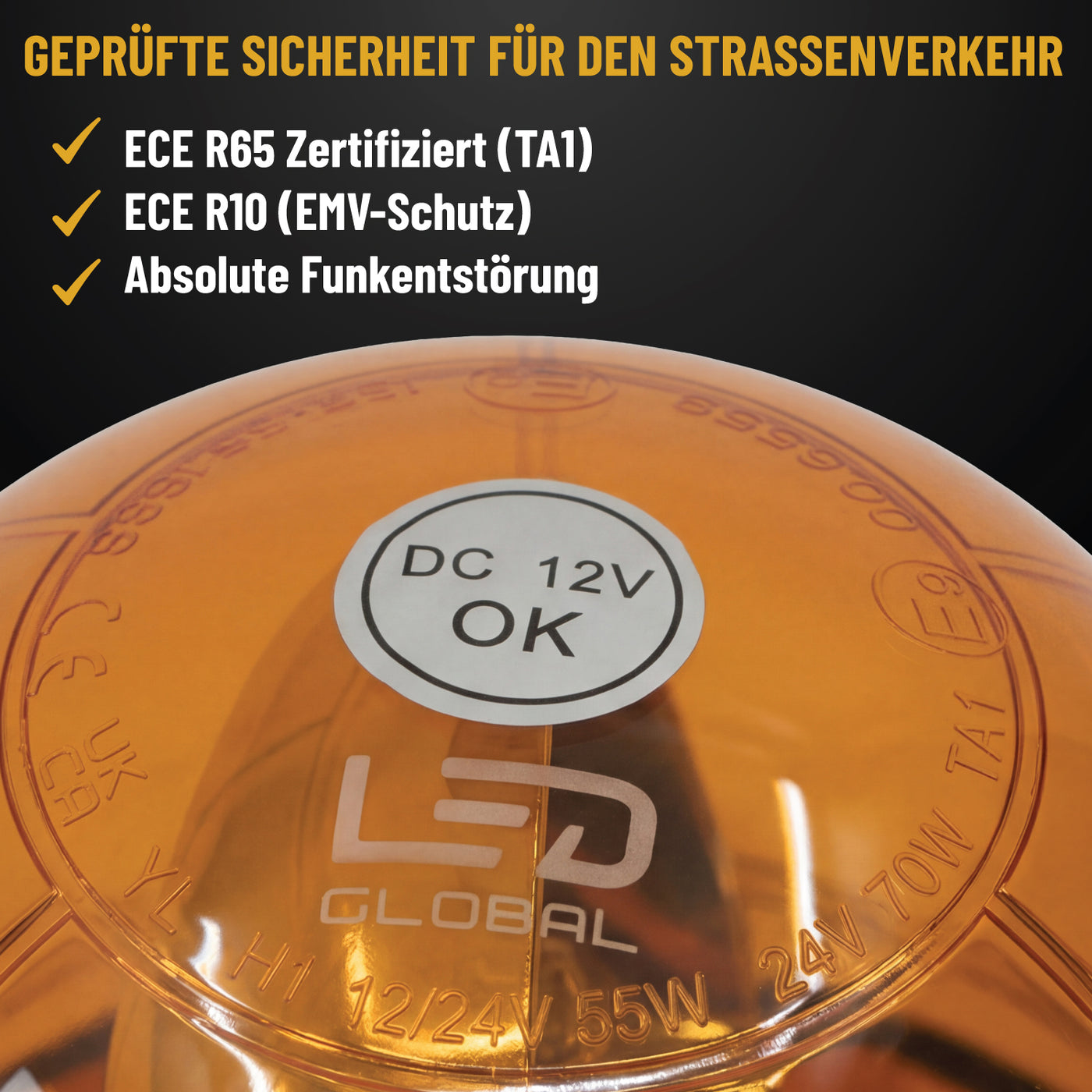

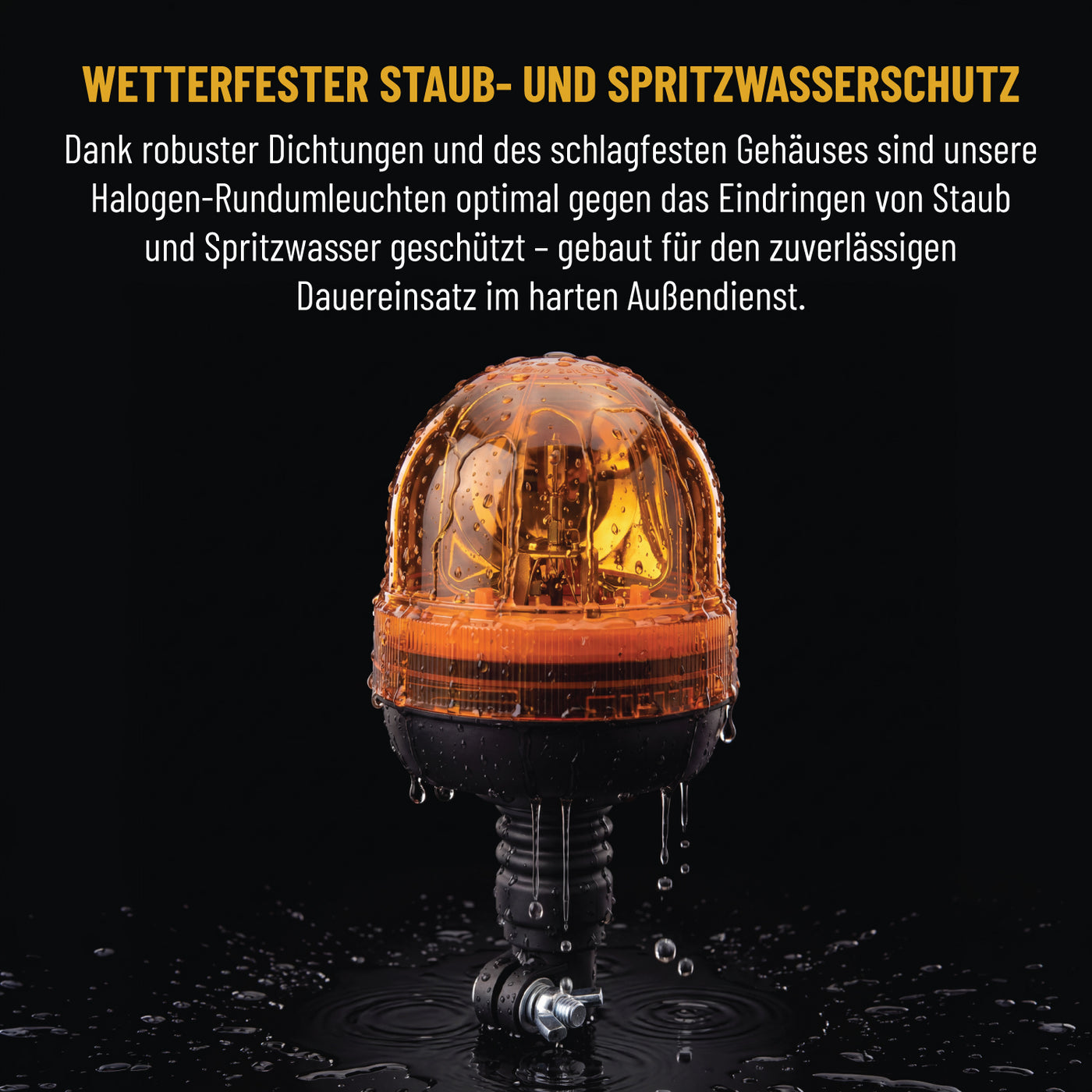

The UV-resistant polycarbonate lens and base are rated IP67. ECE R65 TA1 and ECE R10 approvals and CISPR25 Class 3 suppression are specified. Current draw is 4.6A at 12V; dimensions are 239 mm high and 128 mm in diameter.
£24.00
● In stock
