| Brand | LED Global |
|---|---|
| SKU | LG505 |
| EAN / Barcode | 4255929219798 |
| Product Type / Line | Wireless LED Rear Combination Lamp Kit |
| Specific Vehicle Fitment / Make & Model | Universal (Trailers, Agricultural Equipment) |

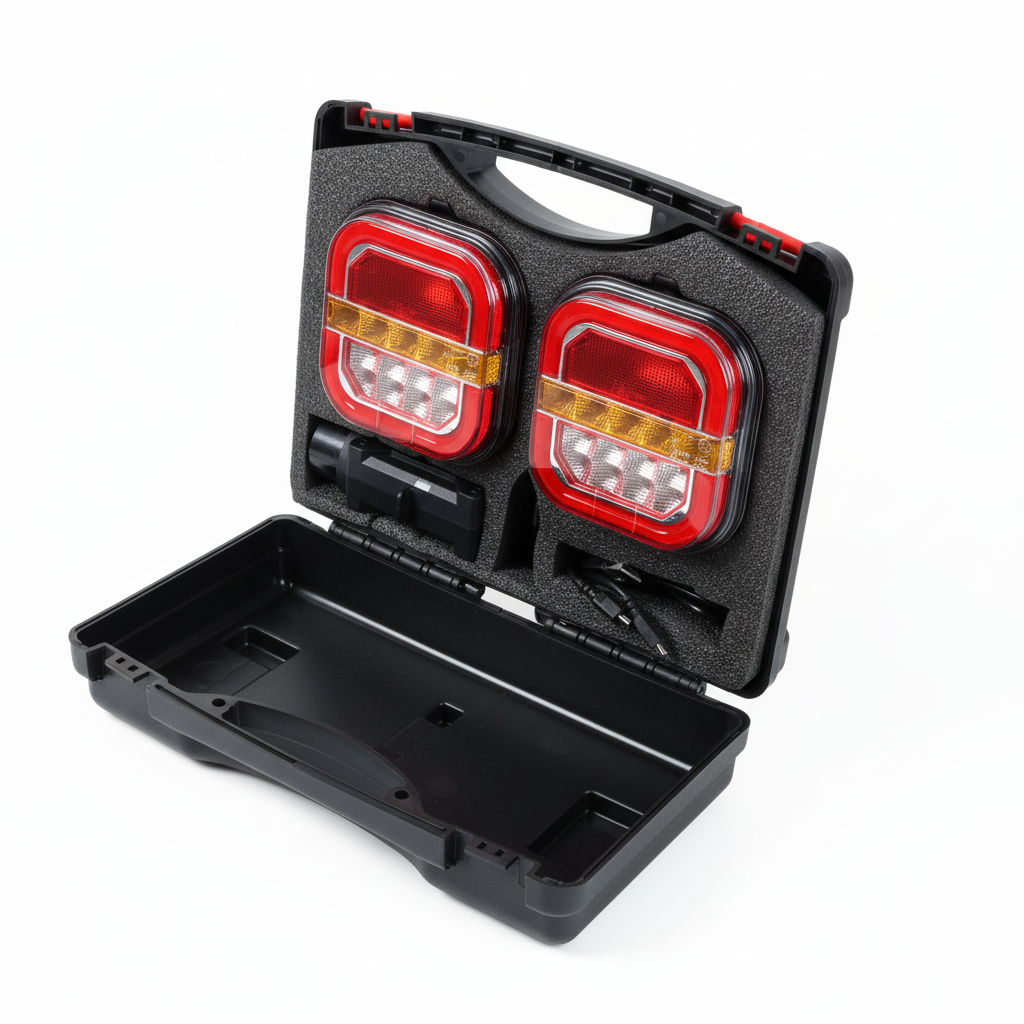

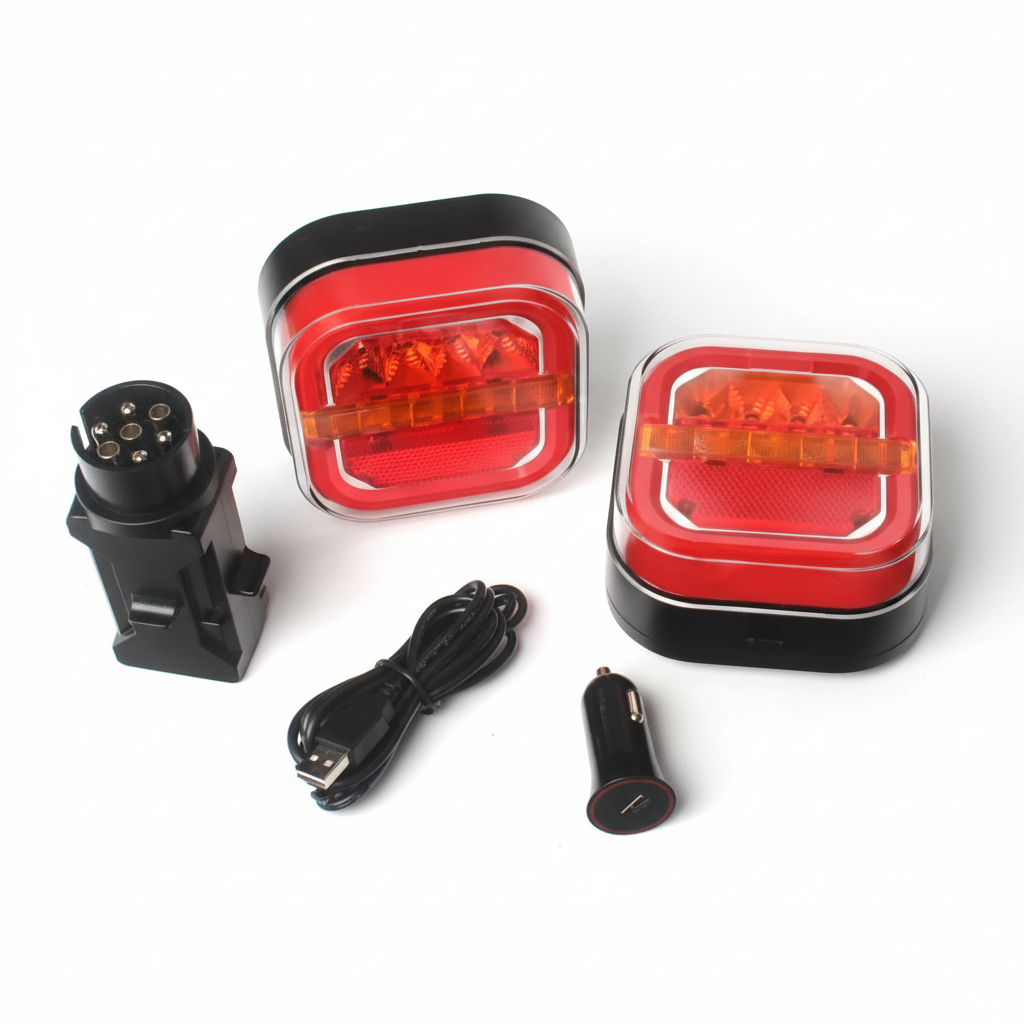

| Scope of Delivery (What's Included) | 1x Left Lamp, 1x Right Lamp, 1x 7-pin Transmitter, 1x USB Adaptor, 1x Charging Cord, 1x Storage Box |
| Fitting Position (Left / Right / Universal) | Left & Right Pair |
| Light Functions | Rear Position, Stop, Direction Indicator, Number Plate Light, Reflector |
| Number of Light Functions | 5 |
| Lens Color | Red / Clear |
| LED Color | Red, Amber, White |
| Optics / Reflector Design | SMD LEDs with built-in Reflex Reflector |
| Number of LEDs | Position: 24pcs, Indicator: 5pcs, Stop: 8, Number Plate: 4pcs |
| Supply Voltage Range (V) | 12-24V (Transmitter) / 5V USB (Charging) |
| Power Consumption - Stop (Watts) | 2W |
| Power Consumption - Tail (Watts) | 2W |
| Power Consumption - Indicator (Watts) | 1W |
| Number plate / reverse light | Number Plate: 0.5W / Reverse: N/A |
| ECE Approvals (R148, R150, etc.) | ECE R3, ECE R6, ECE R7 |
| Other conformity | RED, CE, RoHS |
| Ingress Protection Rating (IP Class) | IP67 |
| Operating Temperature Range (°C) | -40°C to +65°C |
| Housing Color | Black Base |
| Width (mm) | 108mm |
| Height (mm) | 110mm |
| Depth/Length (mm) | 58mm |

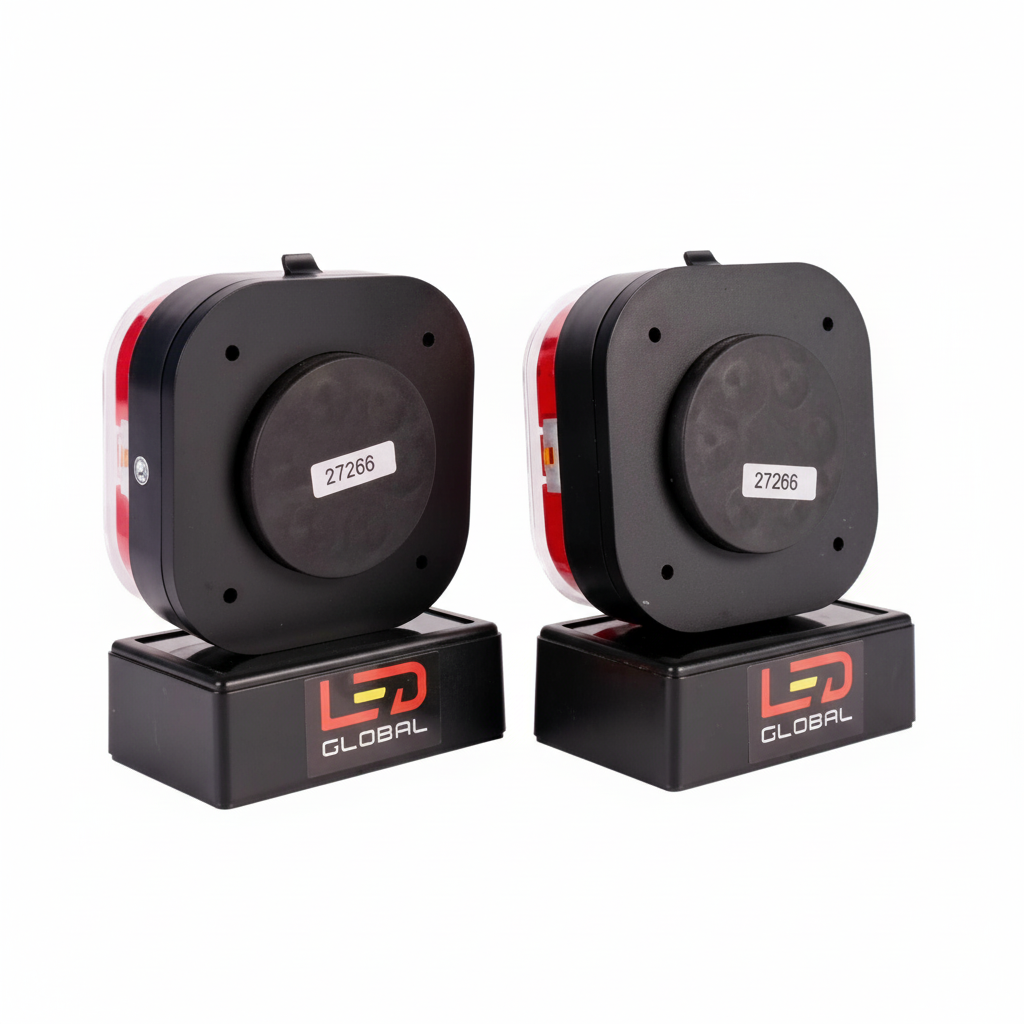

| Mounting / Fastening Type | Magnetic Mount |
| Mounting Orientation | Universal |
| Bolt Hole Center-to-Center Spacing (CC mm) | N/A (Magnetic) |
| Net Weight (kg) | 0.75kg |
| Gross Weight (kg) | 1.55kg |
| Plug / Connector Type | Wireless (7-Pin Transmitter Plug) & Micro USB charging port |
| Cable Length (mm) | Cable-free (Wireless) |
| Battery | 2600 mAh lithium battery |
| Battery life | Up to 8 hours |
| Charging time | 2.5 hours |
| Battery indicator | 25%, 50%, 100% |
Tail Lighting
Wireless Rechargeable LED Magnetic Trailer Tail Light Kit - LG505
Wireless rechargeable magnetic trailer light kit

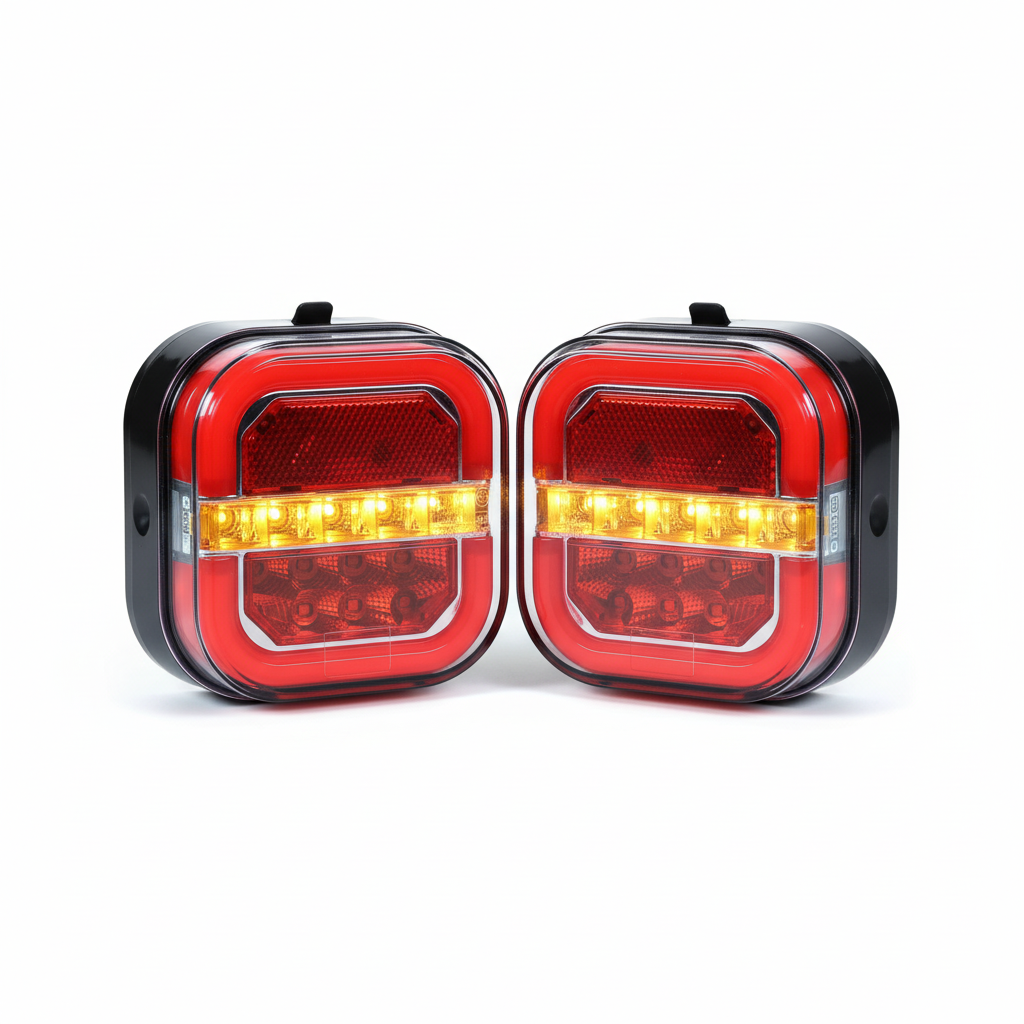

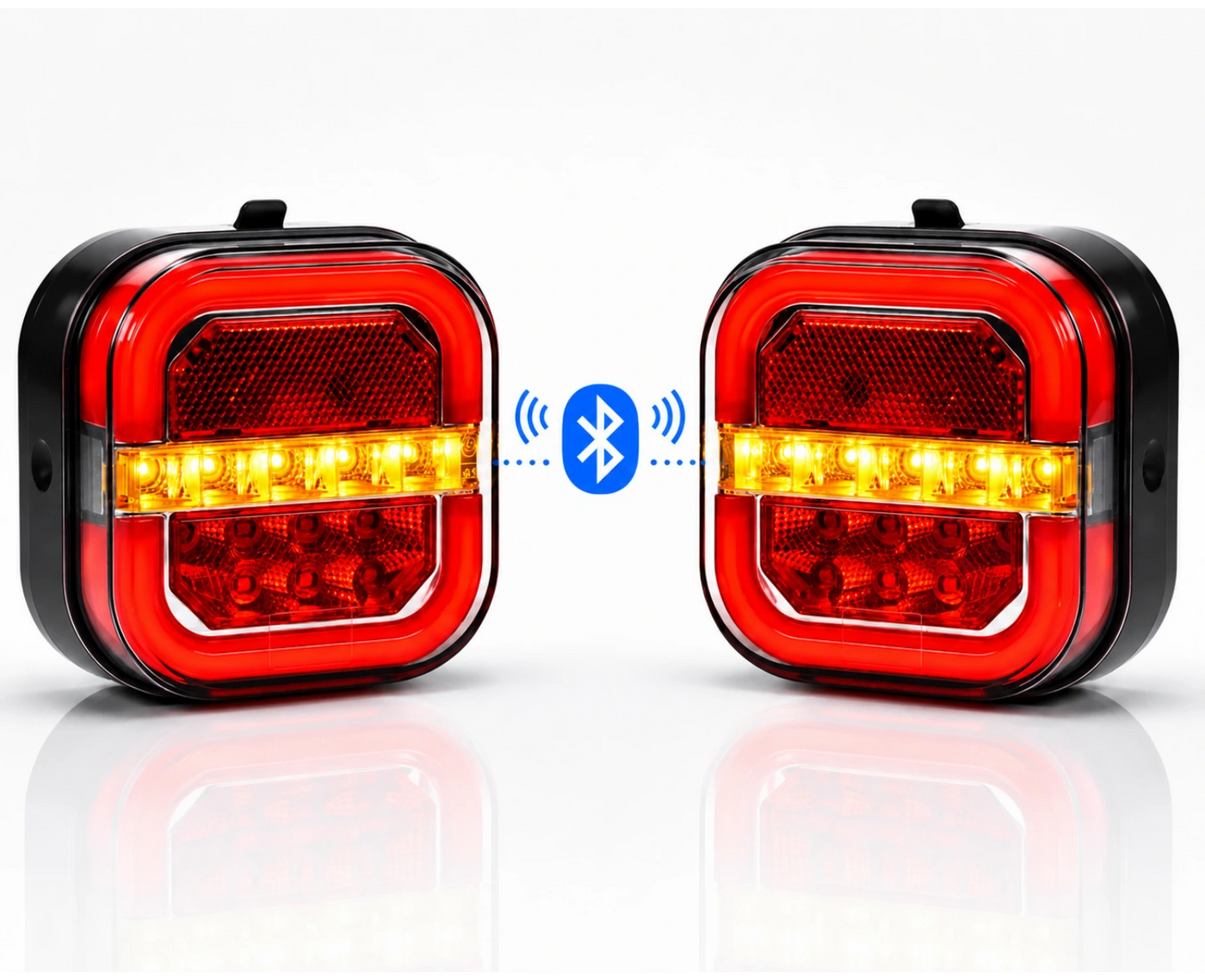

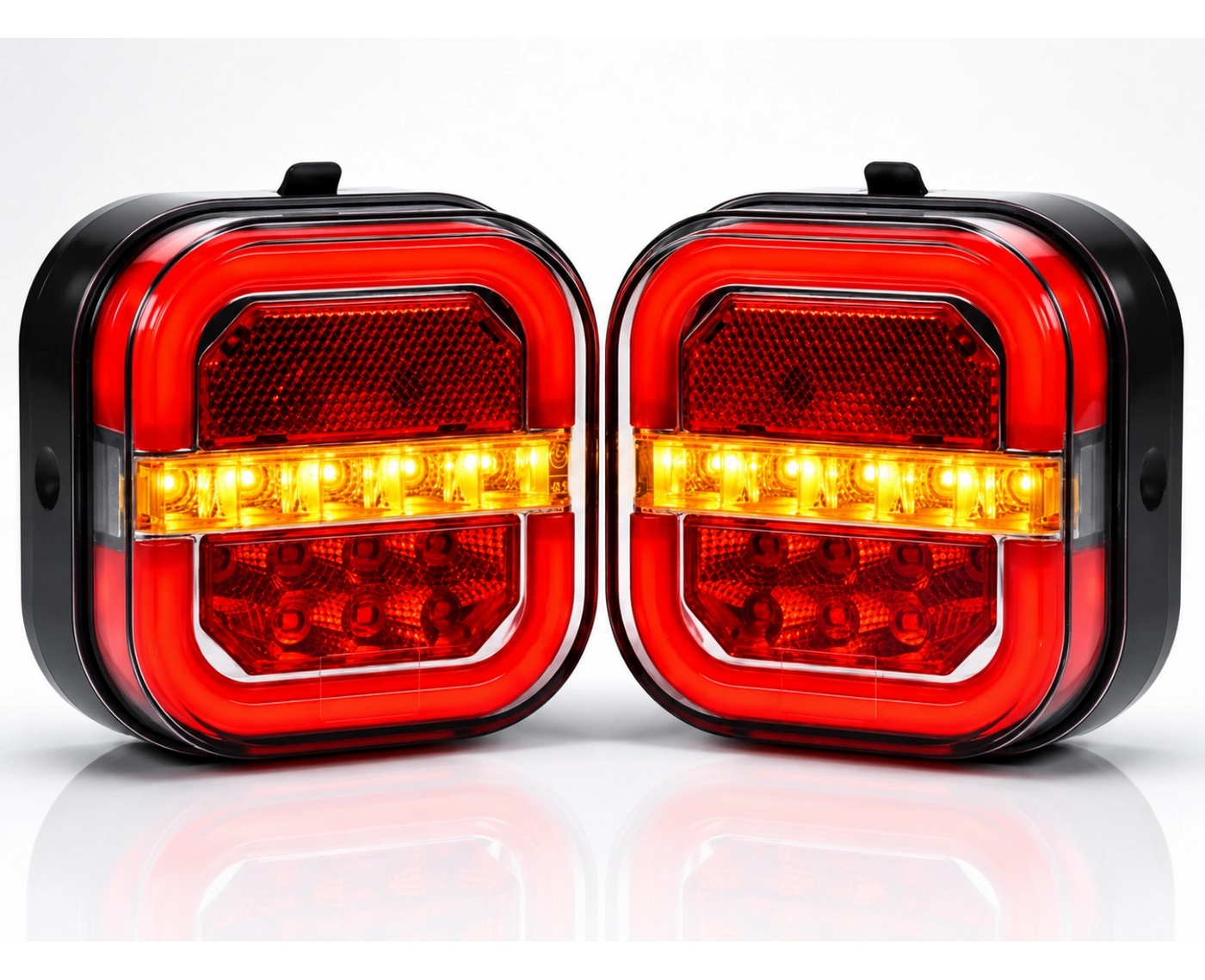

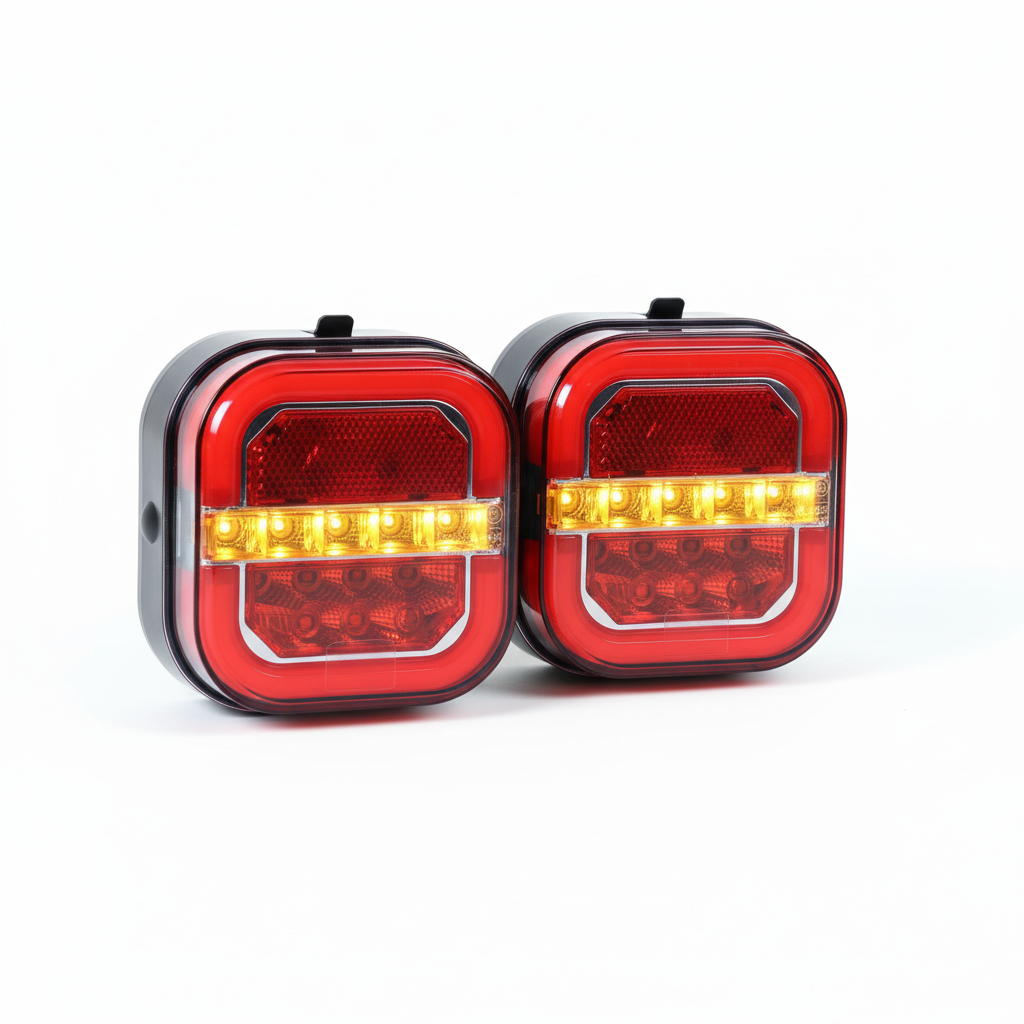

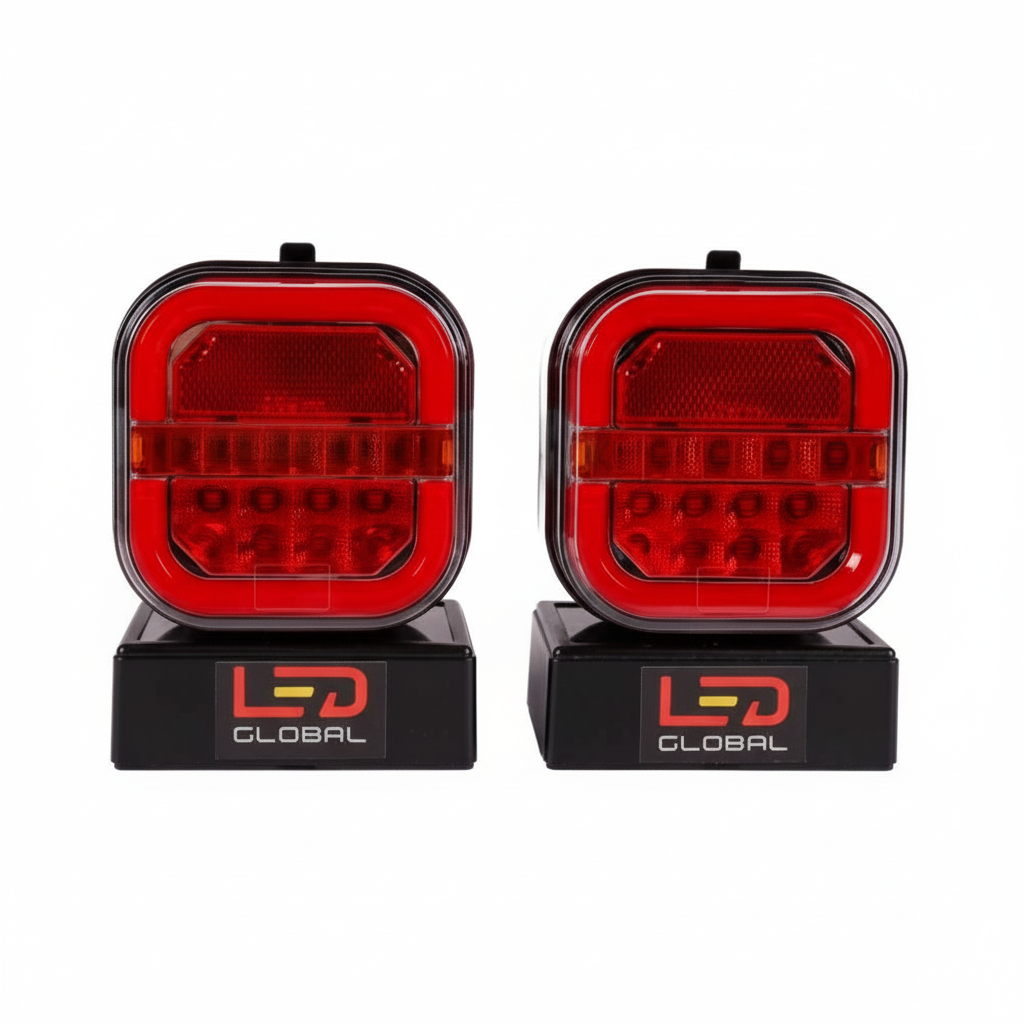

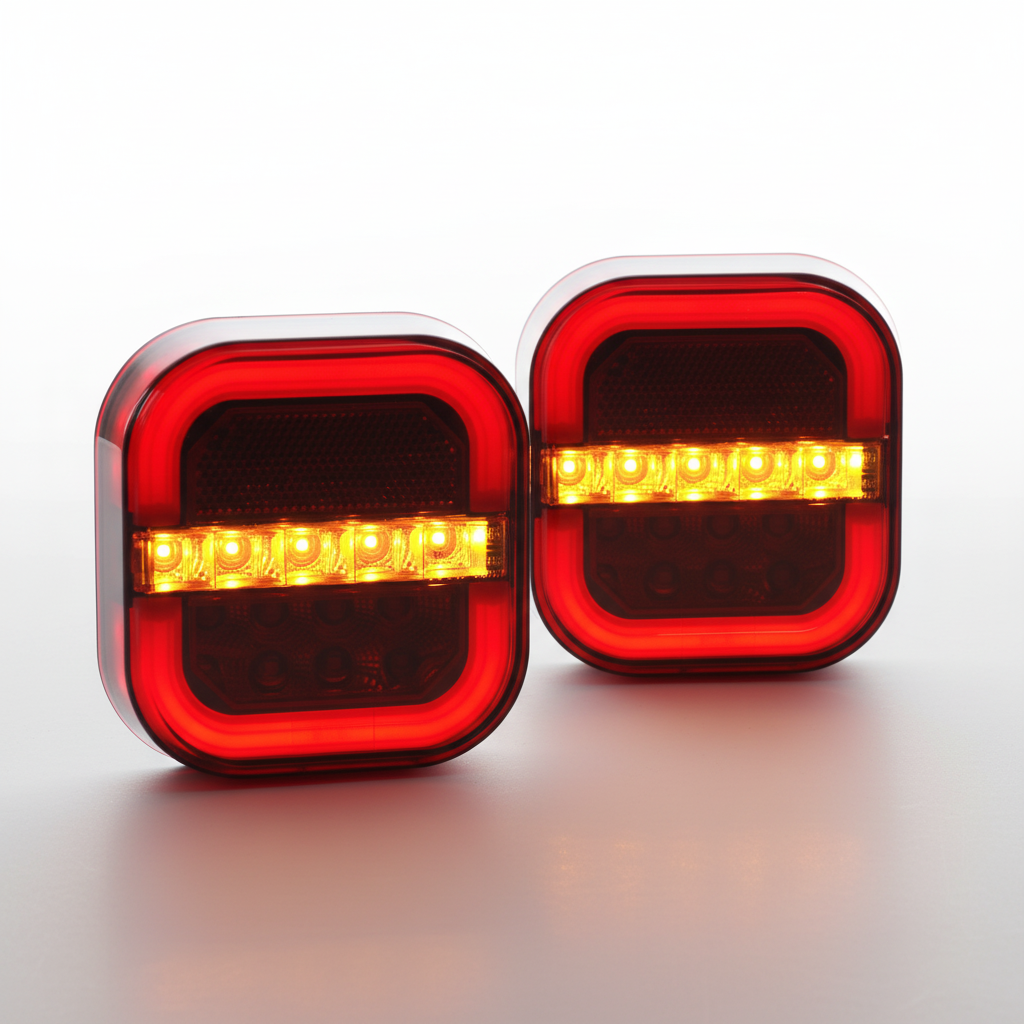

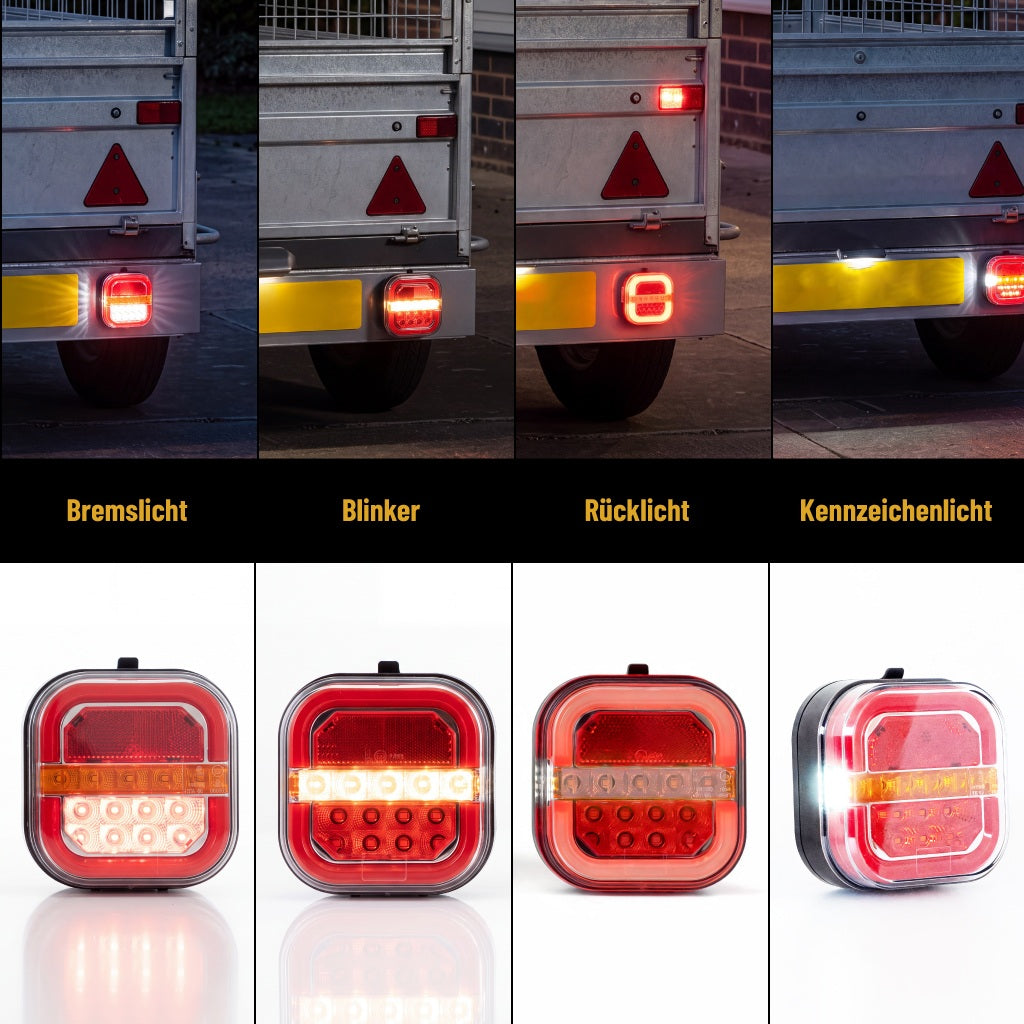

The LG505 provides rear position, brake, indicator and number-plate lighting with an integrated reflector. The left and right lamps receive their signal wirelessly from the 7-pin transmitter, avoiding a lighting cable along the trailer.

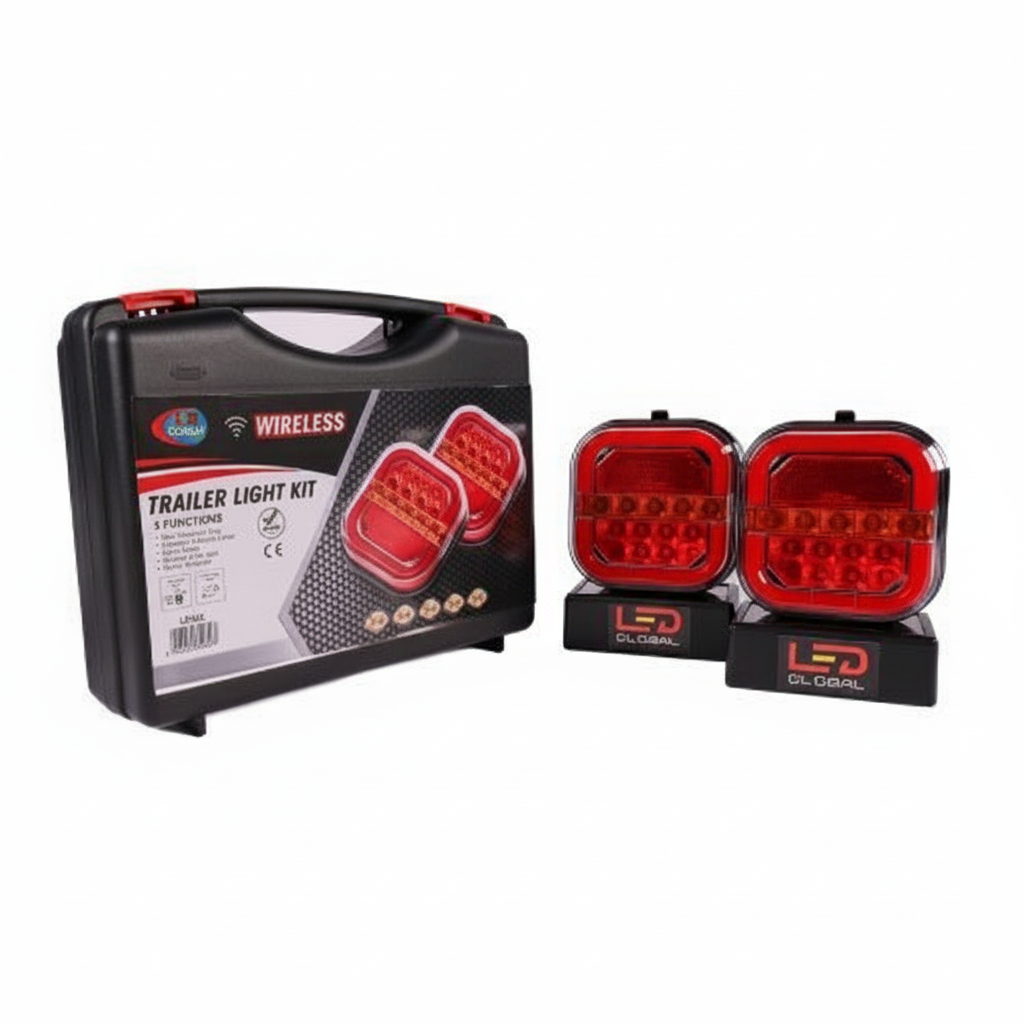

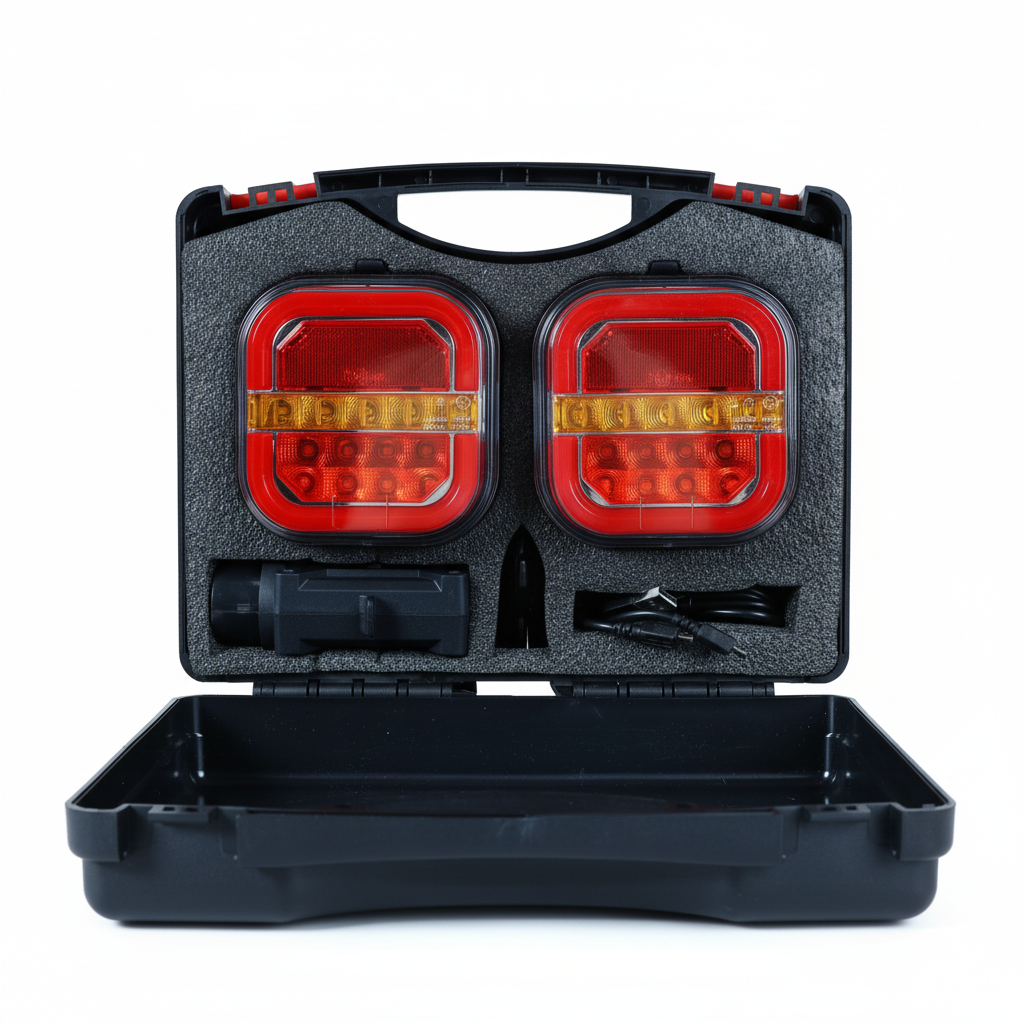

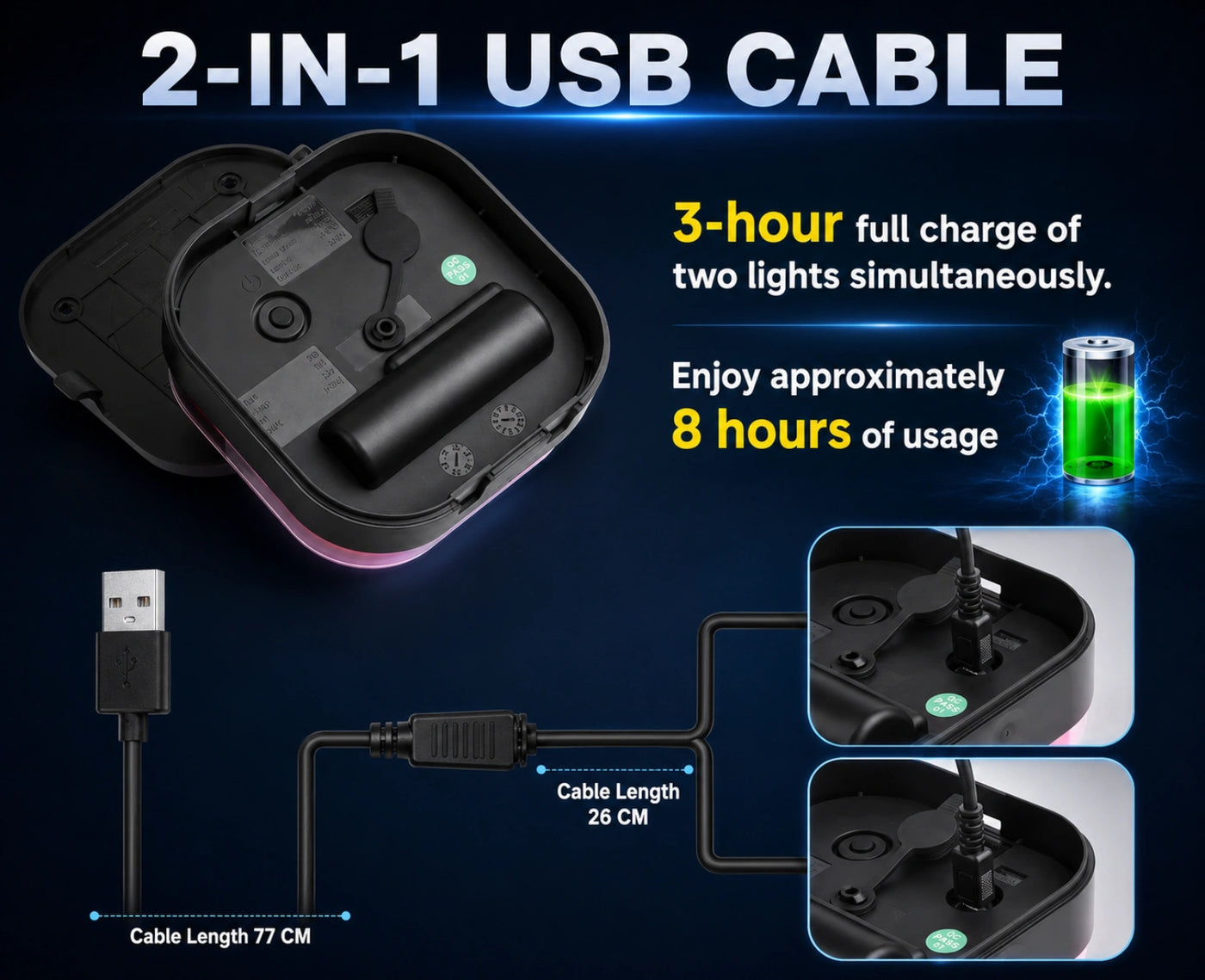

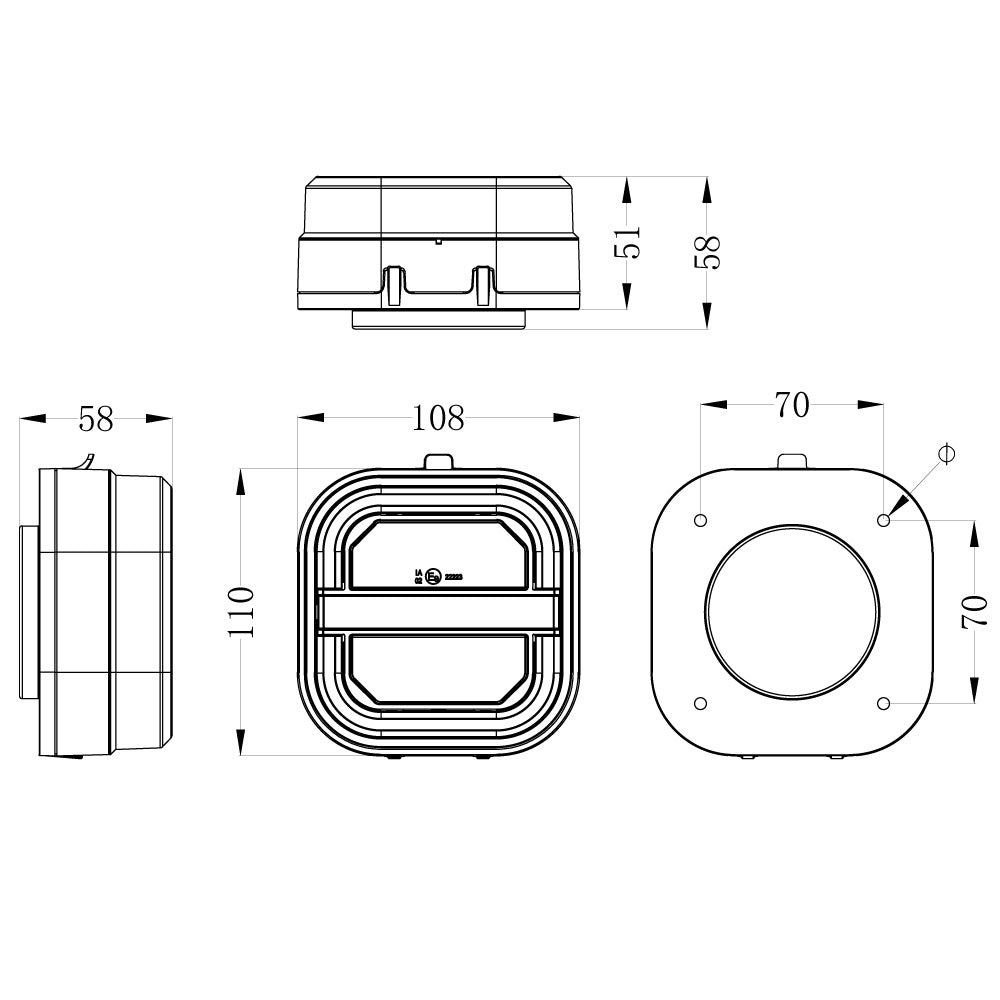

A 2600mAh lithium battery provides up to eight hours of operation, with a 2.5-hour Micro-USB charging time and 25%, 50% and 100% charge indication. The transmitter operates on 12–24V; charging uses 5V USB. Each lamp measures 108 × 110 × 58 mm. The IP67 kit includes both lamps, a 7-pin transmitter, USB adaptor, charging cord and storage box. ECE R3, R6 and R7 approvals and RED, CE and RoHS conformity are listed.
£58.00
● In stock
