40W LED-Eckleuchte - Links (Geeignet für John Deere) - LG915L

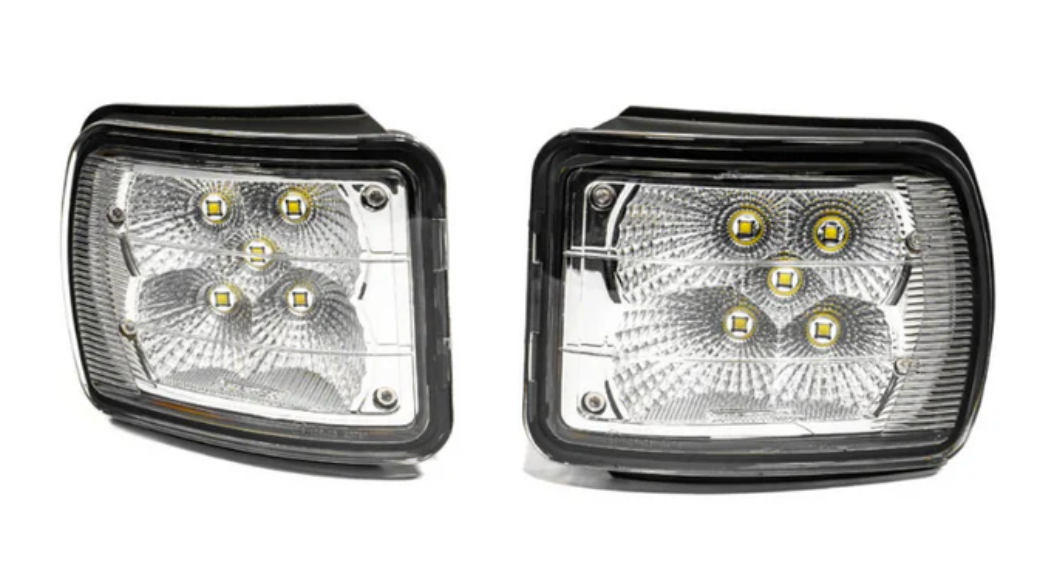

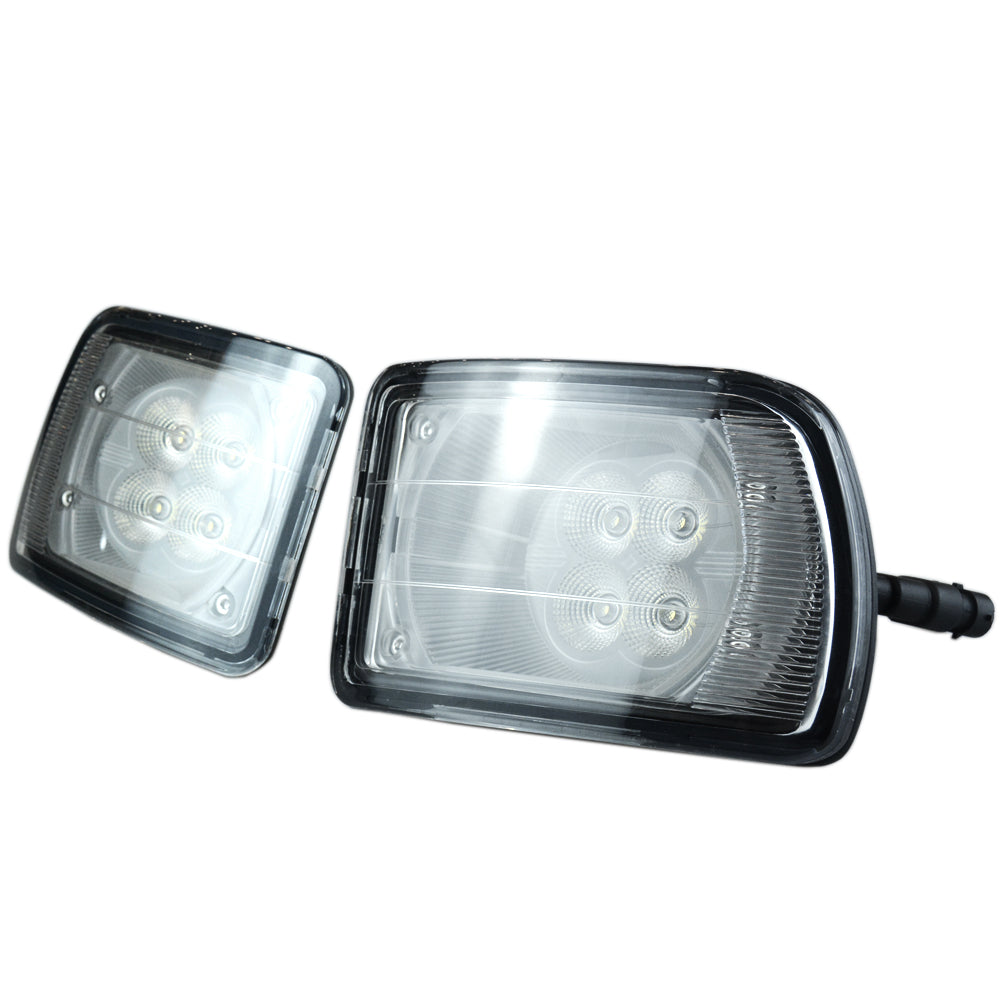

40W LED Corner Light – Left (Suitable for John Deere) – LG915L

This 40W LED corner light for John Deere tractors delivers a clean 6000K work light beam with 3200 lumen output, designed to replace the OEM left-hand corner unit. It slots into the original position, uses the built-in H11 connector, and runs on 10–30V DC, so it suits both 12V and 24V machines. ECE R10 and CISPR 25 Class 4 approvals keep your tractor lighting upgrade electrically safe and fleet-friendly.

This left-hand LED corner light is built for operators who work long days and nights and need reliable, flicker-free lighting on John Deere tractors. Using 4 x 10W OSRAM LEDs, it gives a strong, focused white light at 6000K, ideal for field work, yard manoeuvring, and road-side tasks where you need clear visibility around the corner of the tractor. With a rated 30,000-hour LED lifetime, it’s a fit-and-forget upgrade compared with halogen.

The LG915L runs on 10–30V DC, drawing only 2.33A at 12V and 1.17A at 24V, so it puts less load on older charging systems while still giving a full 3200 lumen output. The housing is die-cast aluminium for strength and thermal management, and the PC (polycarbonate) lens resists impact and vibration around the farm. Its IP68 protection rating means it is sealed against dust and can handle continuous immersion, so regular washing, slurry splash or driving in heavy rain won’t phase it.

Electromagnetic compatibility is often overlooked until it causes trouble. This lamp is EMC protected to CISPR25 Class 4 and ECE R10 approved, helping to prevent interference with tractor radios, GPS receivers and control systems. The OEM cross-reference AL172569 and compact 122 x 106 x 111mm dimensions mean it replaces the original John Deere left corner light cleanly, with no messy rewiring thanks to the integrated H11 connector.

Key Features

• 40W LED output using 4 x 10W OSRAM LEDs for a bright, efficient corner work light
• 3200 lumen light output to improve visibility around the front corner of the tractor
• Operating voltage: 10–30V DC – suitable for both 12V and 24V electrical systems
• Low current draw: 2.33A @ 12V, 1.17A @ 24V to reduce load on alternator and wiring
• Colour temperature: 6000K for a crisp white light that improves contrast in low light
• IP68 protection – fully dust-tight and protected against continuous immersion for harsh farm and construction environments
• Operating temperature: -40°C to +60°C for reliable performance in winter starts and hot summer work
• Die-cast aluminium housing for strength and effective heat dissipation
• PC lens (polycarbonate) for impact resistance and durability under vibration

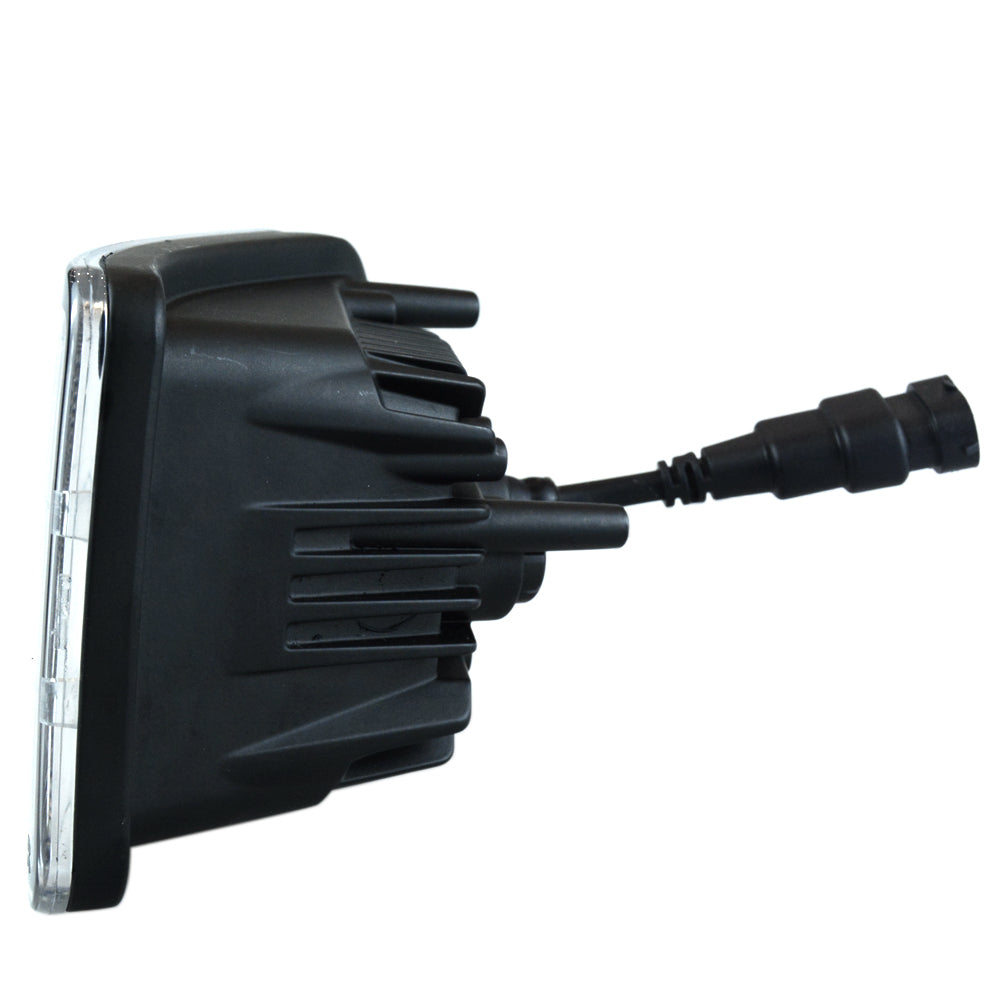

• Built-in H11 connector for straightforward plug-in replacement of OEM units
• EMC protection to CISPR25 Class 4 to minimise electrical interference with vehicle electronics
• ECE R10 approved and RoHS compliant for EMC and environmental standards
• Dimensions: 122 x 106 x 111mm for direct-fit installation in the original lamp position
• OEM reference: AL172569 (Left) for accurate part cross-matching

Ideal Applications

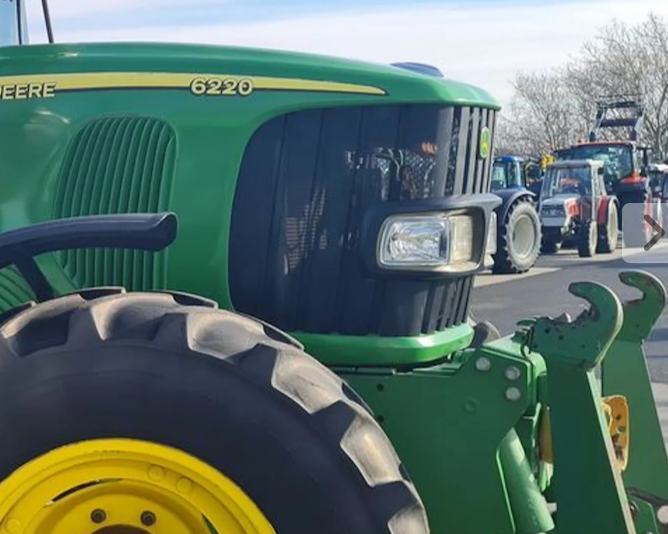

• John Deere M, R and 20/30 series tractors using OEM part AL172569 for the left-hand front corner light:
• 5070M, 5080M, 5100M
• 5080R, 5080RN, 5090R, 5090RN, 5100R, 5100RN
• 5620, 5720, 5820
• 6020, SE6020, 6120, SE6120, 6120L, 6130
• 6215, 6220, SE6220, 6220L, 6230
• 6320L, SE6320
• 6330, 6415, 6420, SE6420, 6420L, 6420S, 6430
• 6520, SE6520, 6520L, 6530, 6534
• 6615, 6620, SE6620, 6630, 6715
• 6820, 6830, 6920, 6920S, 6930
• 7130, 7230, 7330
• Farm, forestry and municipal work, where side and corner illumination reduces blind spots around attachments and implements
• Contractor and fleet upgrades, standardising on LED lighting for reduced maintenance and improved operator comfort
• Mixed-age tractor fleets needing a plug-and-play LED replacement that respects OEM wiring and EMC limits

Why Choose LED-Global Lighting

LED-Global focuses on practical, engineered lighting solutions for professional users, not throwaway gadgets. Every work light is specified with European conditions in mind – long hours, rough tracks, cold starts and constant washing. Products like the LG915L are selected and tested for output, EMC stability and build quality, so fleet managers and operators can upgrade to LED with confidence. You get clear documentation, honest specifications, and lighting that earns its place on your machines.
