40W LED-Eckleuchte - vorne links (*geeignet für John Deere) - LG916L

40W LED Corner Light – Front Left (Suitable for John Deere) – LG916L

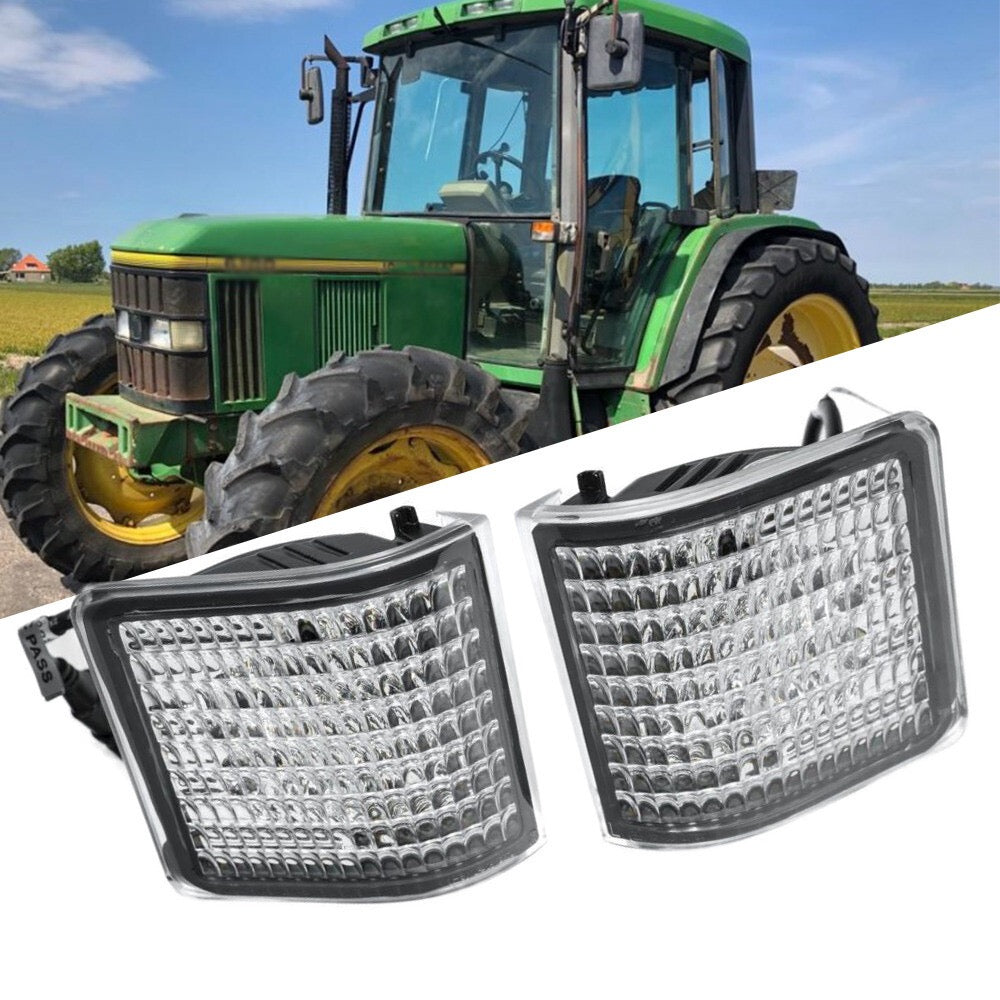

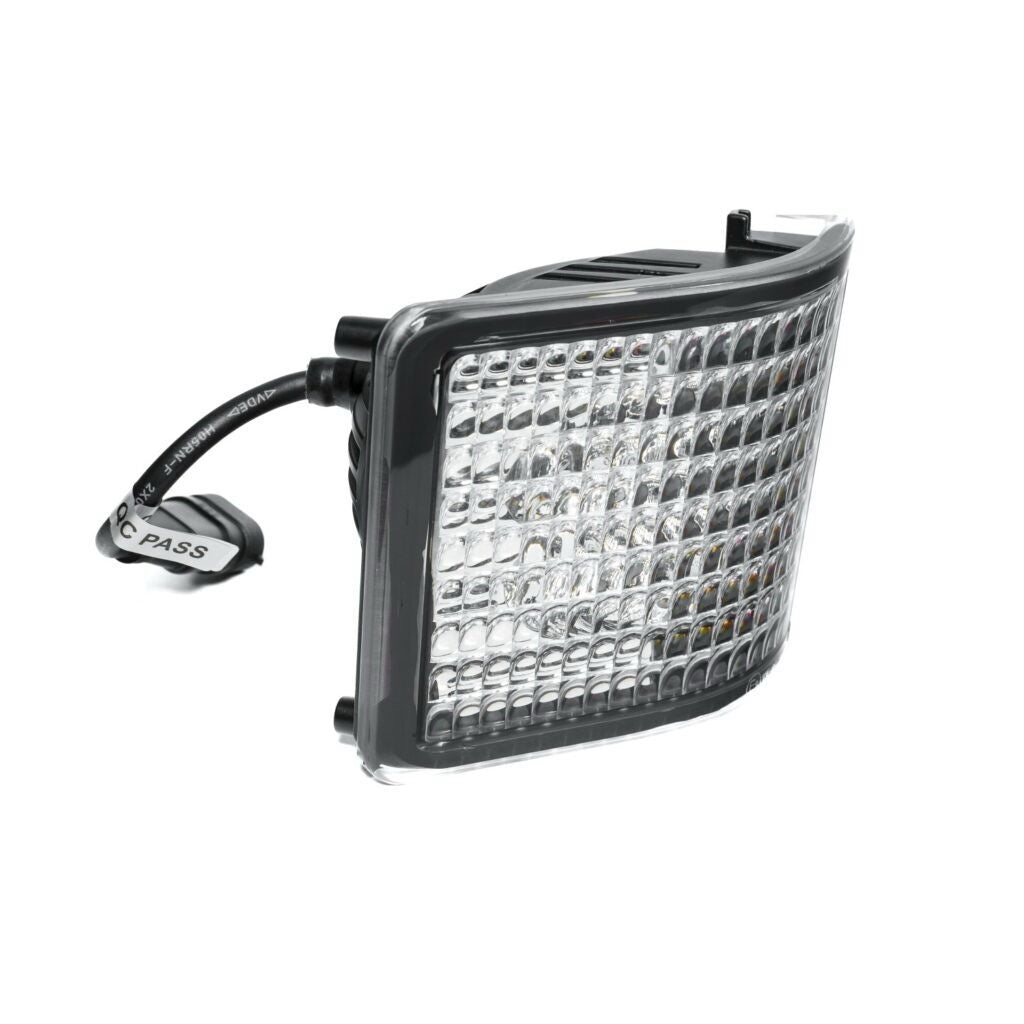

This 40W LED corner light for John Deere tractors gives you strong, clean light exactly where you need it at the front left corner. It delivers 3200 lumen from proven OSRAM LEDs, with stable performance on both 12 V and 24 V systems. Fully ECE R10 approved and CISPR 25 Class 4 compliant, it’s engineered to drop into the OEM position and work hard in real farm conditions.

This corner work light exists for one reason: to replace tired factory lamps with something you can trust after dark. The 4 x 10W OSRAM LEDs push out a crisp 6000K white light, so you see edges, implements and obstacles sooner, not guess where they are. On tractors that earn their keep at night, that matters for both productivity and safety.

The LG916L runs on 10–30 V DC, so it’s fully at home on modern 12 V or 24 V agricultural electrics. At 2.33 A @ 12 V and 1.17 A @ 24 V, current draw stays modest while light output stays high. The die-cast aluminium housing manages heat and resists vibration, while the PC lens handles the usual abuse from dust, chaff and stone strikes. With a rated 30,000-hour lifetime, it’s built as a fit-and-forget upgrade, not a consumable.

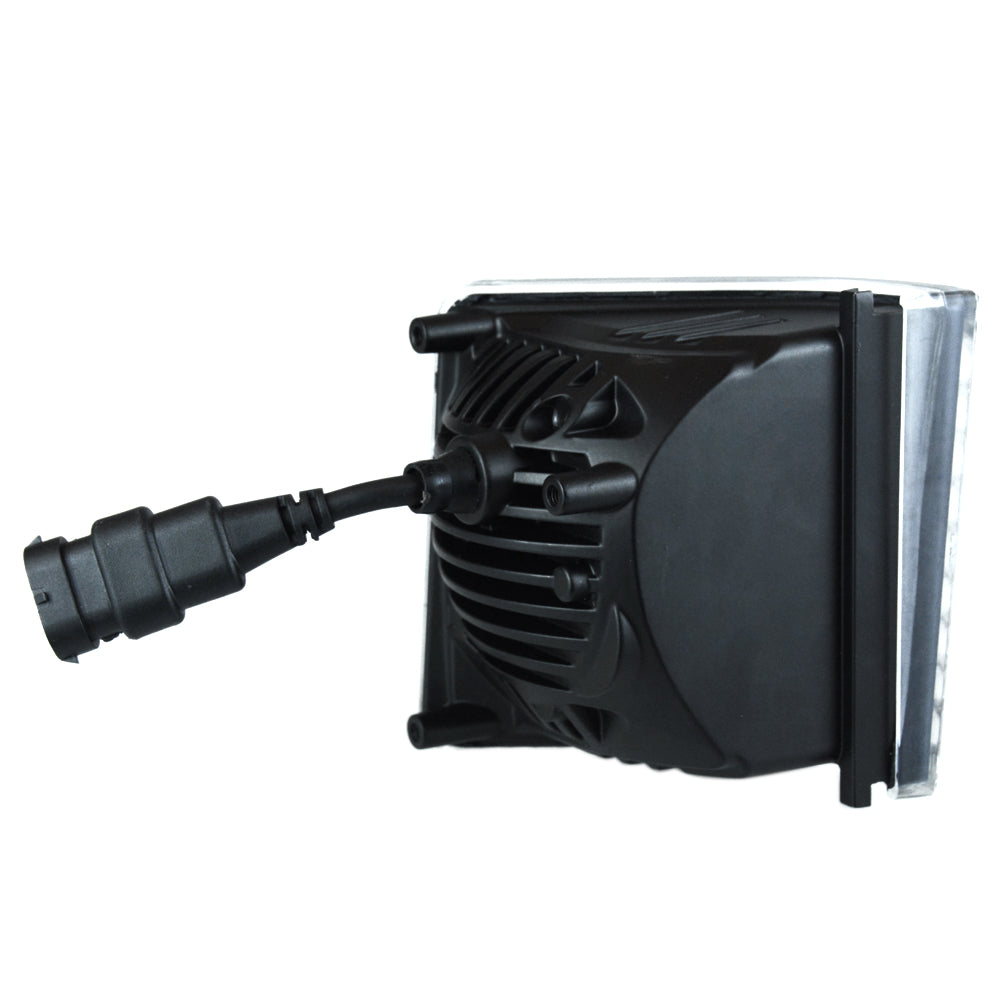

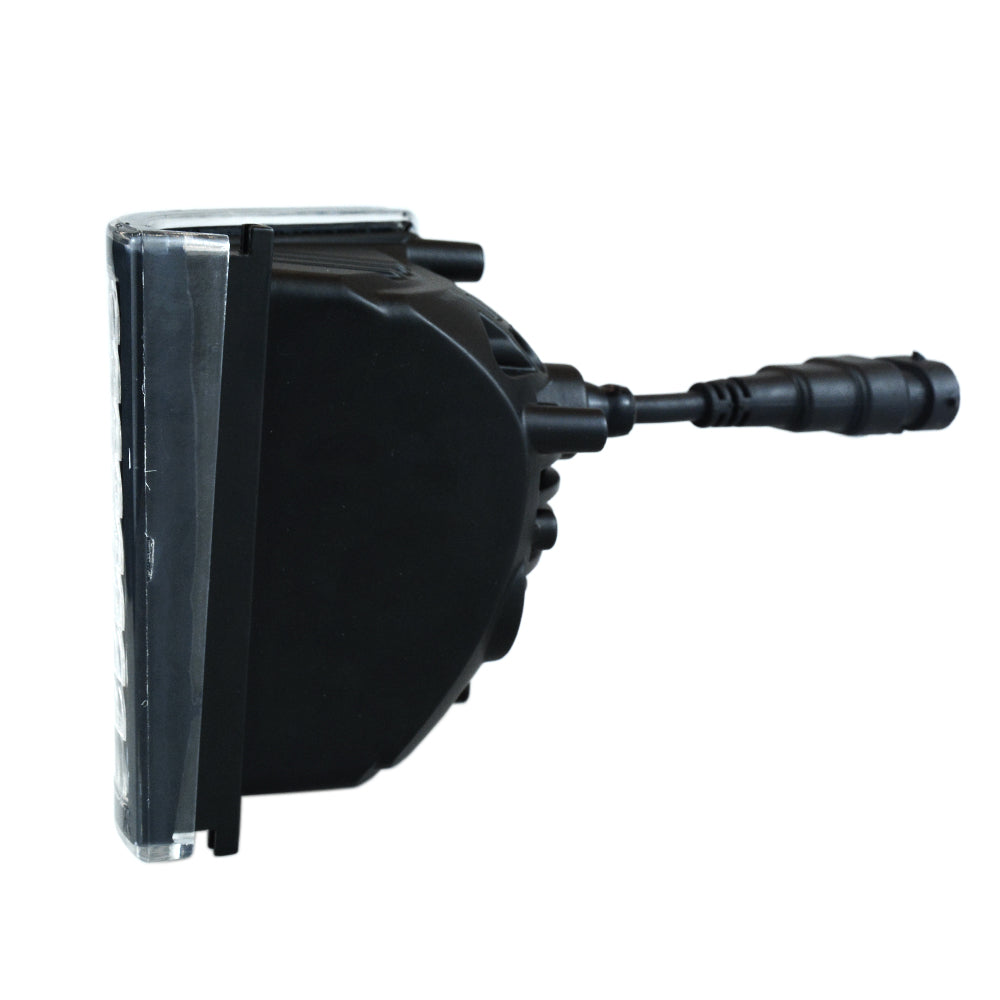

On the tractor, it drops straight into the front-left OEM position using the built-in H11 connector, matched to OEM part number AL78177. No cutting, no improvised crimping, and less risk of electrical gremlins. EMC performance is controlled as well: CISPR 25 Class 4 and ECE R10 approval mean reduced electrical interference with radios, ISOBUS, GPS, and farm control systems.

Rated IP68, this unit is sealed against dust and can withstand prolonged immersion, so pressure washing and filthy conditions are not a concern. It’s specified to operate from -40°C to +60°C, so whether you’re in a cold continental winter or a hot summer harvest, it will switch on and simply work. Dimensions of 92 x 112 x 92 mm keep it close to OEM form factor, so alignment and fit remain as expected.

Key Features

• 40W LED output using 4 x 10W OSRAM LEDs for strong, reliable illumination and long service life
• 3200 lumen light output at 6000K colour temperature for clear, daylight-style visibility around the tractor front corner
• Wide operating voltage 10–30 V DC, suitable for both 12 V and 24 V agricultural electrical systems
• Low current draw – 2.33 A @ 12 V, 1.17 A @ 24 V – reduces load on alternator and wiring while maintaining high output
• IP68 ingress protection, fully dust-tight and resistant to prolonged water exposure, ideal for heavy washing and muddy fields
• -40°C to +60°C operating temperature range, designed for harsh European winters and hot summer work
• Die-cast aluminium housing for strength, impact resistance, and efficient heat dissipation in continuous operation
• Durable PC lens that resists scratching and impact from debris and field hazards
• Built-in H11 connector for clean plug-and-play installation, with no cutting or splicing of the factory loom
• EMC protection to CISPR 25 Class 4 and ECE R10 approved, minimising electrical interference with radios, GPS, and control systems
• Approx. 30,000 hours rated life, giving long-term reliability and reduced maintenance downtime
• OEM equivalent for left side – Part No. AL78177, designed as a direct-fit replacement for the original John Deere corner light

Ideal Applications

• Front-left corner light replacement on compatible John Deere 6000 and 7000 Series tractors
• Upgrade from ageing halogen or failed OEM units on models including:
• 6010, 6100, 6110, 6110L, 6200, 6200L, 6205, 6210, 6210L
• 6300, 6300L, 6310, 6310L, 6310S, 6400, 6400L, 6405, 6410, 6410L, 6410S
• 6500, 6500L, 6505, 6506, 6510, 6510L, 6510S, 6600, 6800, 6810, 6900, 6910, 6910S
• 7200, 7210, 7400, 7410, 7510
• Contractors running mixed fleets who want consistent LED lighting performance across older John Deere machines
• Farm workshops standardising on robust LED work lights to cut failures during night tillage, slurry work or carting
• Fleet managers looking to reduce downtime from failed halogen lamps in all-weather operations

Original equipment names, series numbers and references are used for identification only. They do not imply that LED-Global parts are supplied by or sourced from the original equipment manufacturer.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting that works in real European conditions, not just on paper. Every unit is engineered for reliability, EMC control and proper fit, so you spend less time troubleshooting and more time working. With proven components, clear approvals and straight-talking specifications, you know exactly what you’re fitting – and why it will last.
