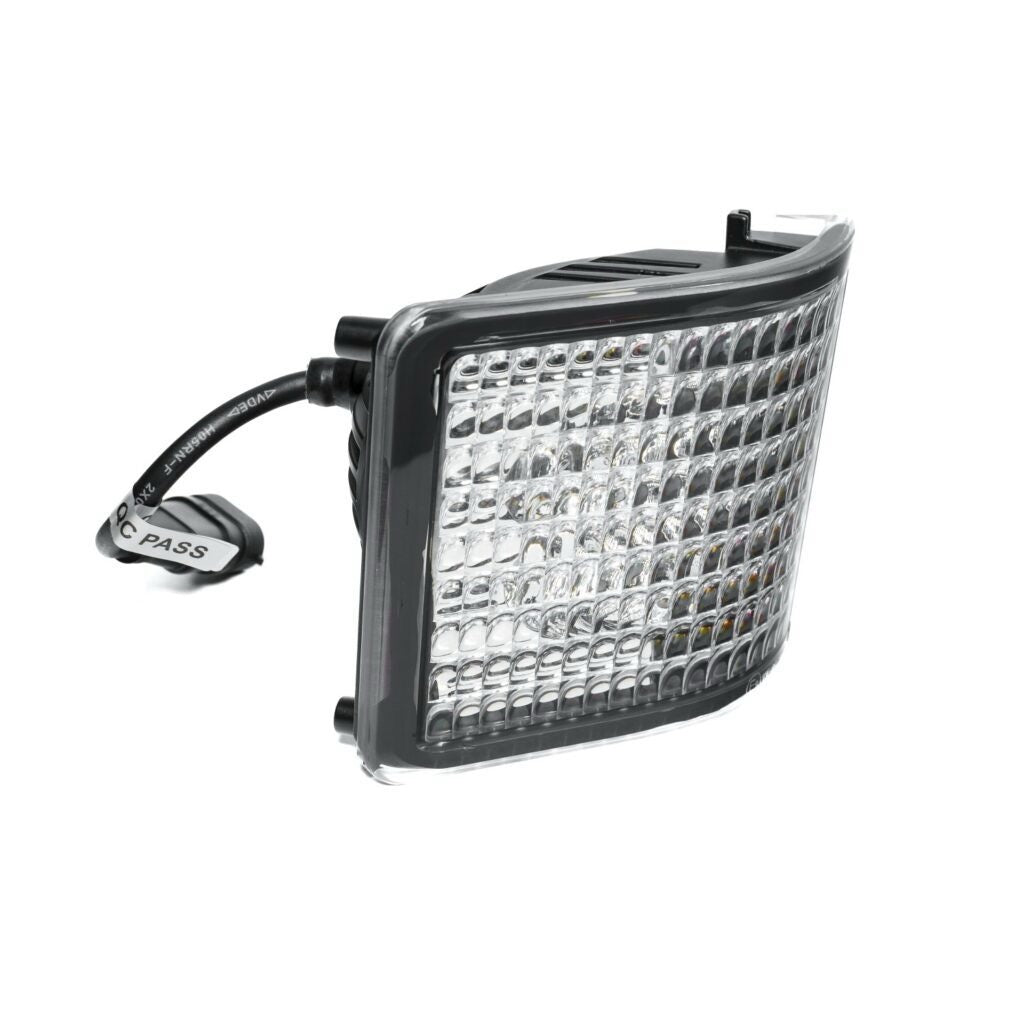

40W LED-Eckleuchte - vorne rechts (*geeignet für John Deere) - LG916R

40W LED Corner Light – Front Right (*Suitable for John Deere) – LG916R

Upgrade tired halogen corner work lights with this 40W LED front-right corner light for John Deere, engineered for clear visibility and clean EMC performance. It drops into the original position, delivers up to 3200 lumen of crisp 6000K light, and runs on 10–30 V DC, so it suits both 12 V and 24 V tractors. ECE R10 and CISPR 25 Class 4 approval mean low electrical interference on modern CAN-bus machines.

This LED corner lamp exists for a simple reason. You need strong, even light at the front corner of the tractor without throwing electrical noise through the cab electronics. The LG916R uses 4 x 10 W OSRAM LEDs to give a focused, high-output beam while keeping current draw modest at 2.33 A @ 12 V and 1.17 A @ 24 V. That means you gain light output without overloading ageing looms or auxiliary circuits.

The light is built on a die-cast aluminium housing with a tough PC (polycarbonate) lens, so it handles hard field work, hedge branches and frequent washing. Rated IP68, it’s sealed against dust and immersion, so heavy rain, slurry splash or pressure washing won’t creep into the enclosure. It’s designed to run in real European weather too, with an operating range from -40°C to +60°C, so frosty morning starts and hot harvest evenings are both covered.

Electrically, this work light has EMC electrical interference protection to CISPR 25 Class 4 and is ECE R10 approved, which helps protect sensitive tractor electronics, radios and GPS guidance from noise. It’s supplied with a built-in H11 connector, so on the correct John Deere models it plugs straight into the existing harness with no cutting or re-terminating. That keeps installation time down and helps preserve OEM reliability.

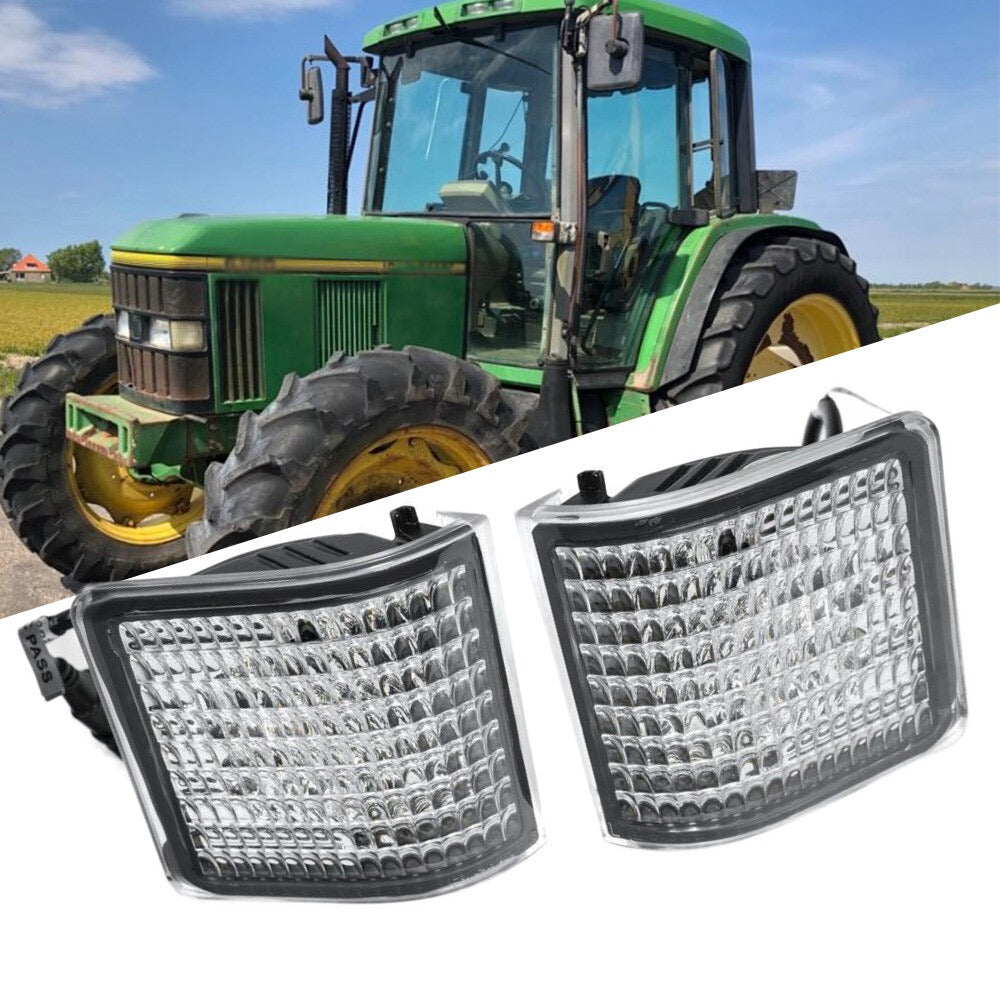

This front-right LED corner light is a direct replacement for OEM part number AL78178 and is suitable for a wide range of John Deere 6000 and 7000 series tractors, including models like 6010, 6110, 6210, 6310, 6410, 6510, 6910, 7200, 7410 and 7510. You get a neat fit, factory-style finish and a proven LED upgrade that matches the tractor’s character. Left and right versions can be paired for a balanced lighting package across the front of the cab.

Key Features

• 40W LED output (4 × 10W OSRAM) delivering up to 3200 lumen for strong, clean white work light at the tractor corner
• Wide operating voltage 10–30 V DC suitable for both 12 V and 24 V electrical systems on agricultural machinery
• Low current draw – 2.33 A @ 12 V, 1.17 A @ 24 V – reduces load on wiring looms and switches compared with halogen
• 6000K colour temperature for daylight-style illumination that improves contrast on implements, tramlines and headlands
• IP68 ingress protection – fully dust-tight and protected against prolonged immersion, ideal for wash-down and wet field work

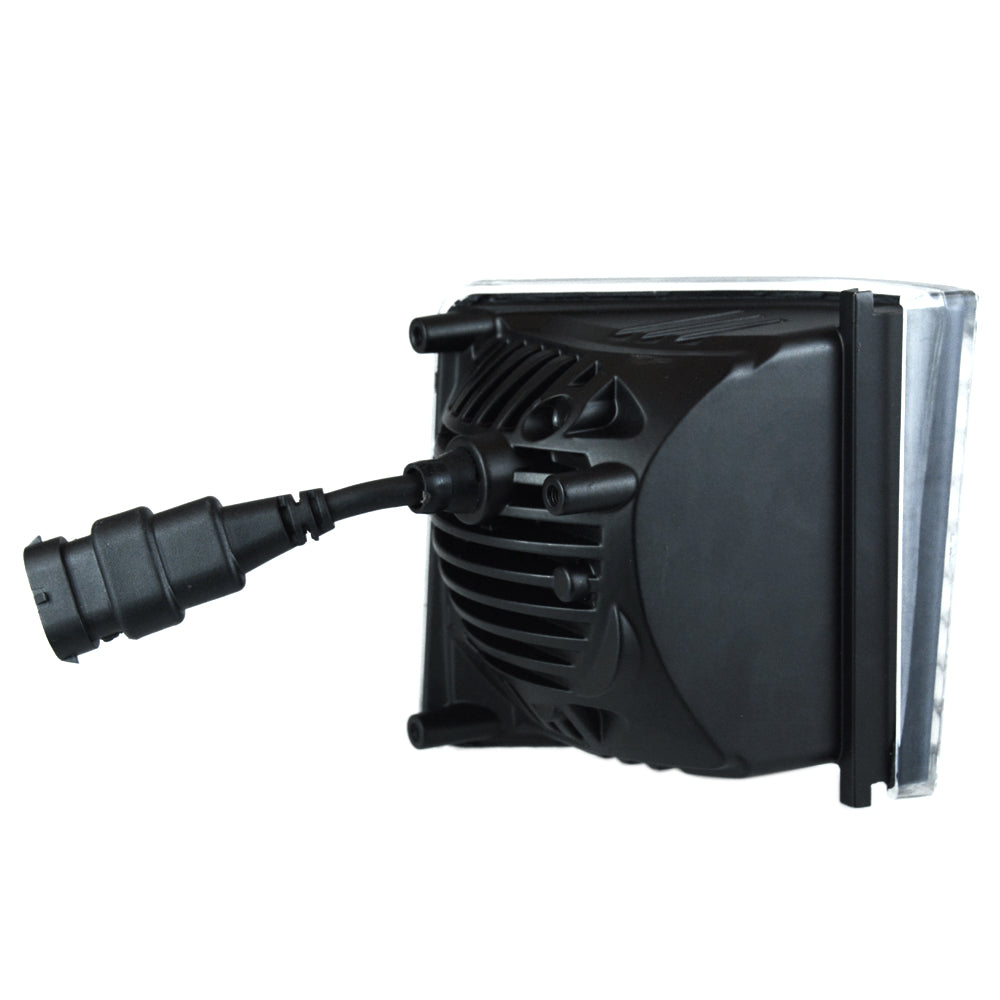

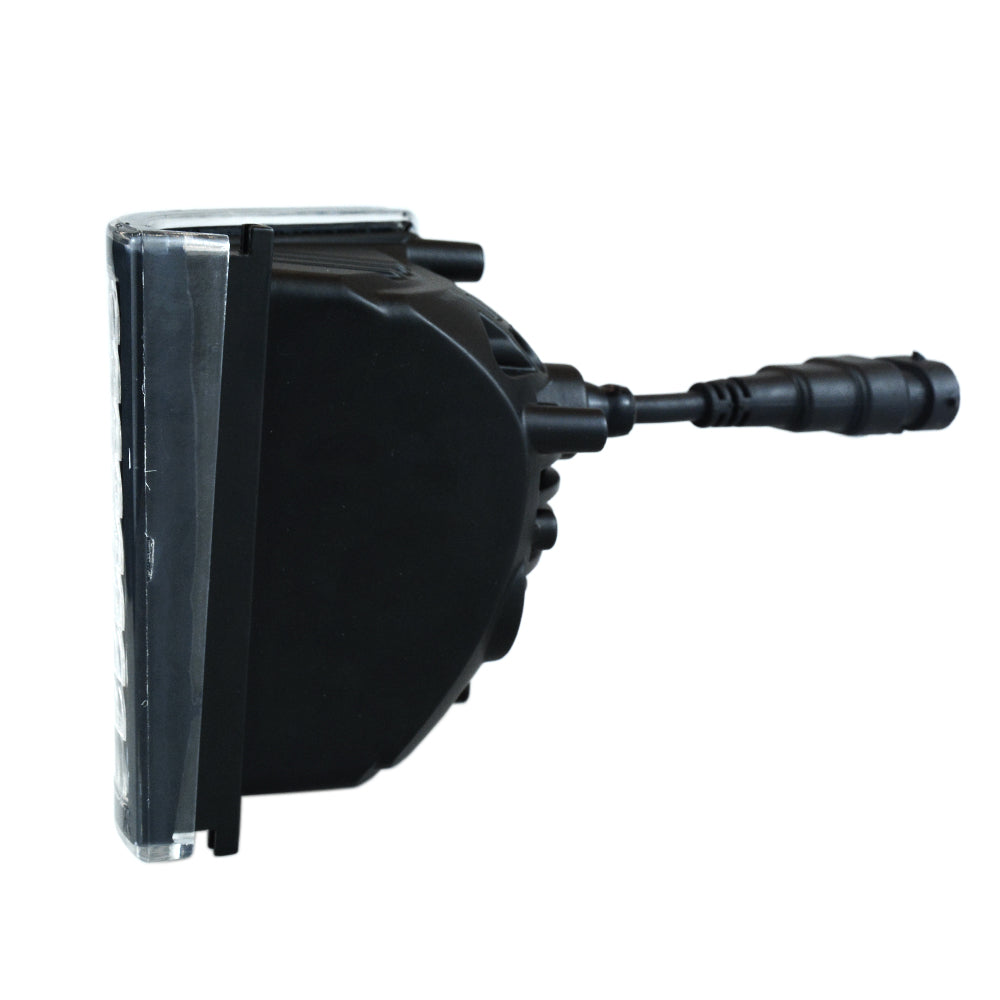

• Robust construction with die-cast aluminium housing and PC lens for impact resistance and efficient heat dissipation
• Long service life – approx. 30,000 hours, cutting bulb changes and downtime over the life of the tractor

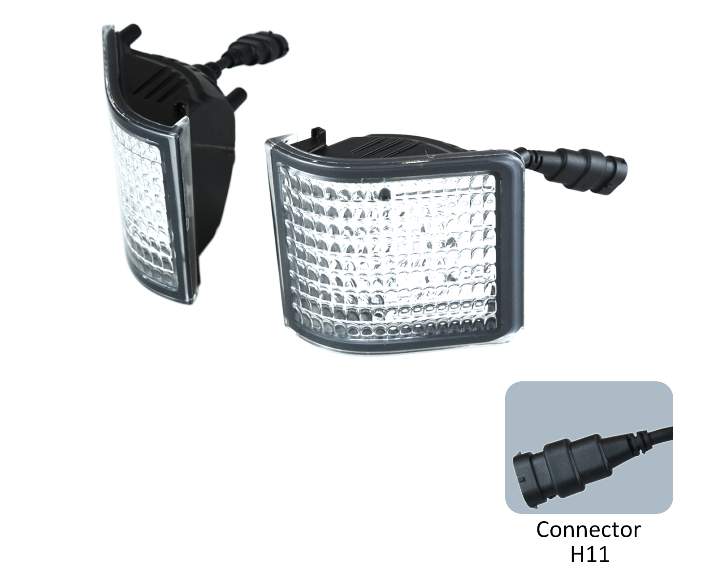

• Built-in H11 connector for plug-and-play connection on compatible John Deere models, avoiding loom modifications
• EMC protection to CISPR 25 Class 4 with ECE R10 approval, helping to minimise interference with radios, GPS and CAN-bus systems
• Compact dimensions: 92 × 112 × 92 mm, designed to sit neatly in the original corner light position

Ideal Applications

• Front-right corner work light upgrade on John Deere 6000 series tractors (e.g. 6010, 6110, 6210, 6310, 6410, 6510, 6600, 6810, 6910)
• Lighting retrofit on John Deere 7000 series including models such as 7200, 7210, 7400, 7410 and 7510
• Field work, loader work and yard operations where you need better side and front corner visibility around the implement
• Contractor fleets looking to standardise on efficient LED work lights with low EMC impact across older and mid-generation Deere tractors
• Mixed arable and livestock farms upgrading from halogen to LED for reduced power draw and improved reliability in harsh conditions

Original equipment names, series numbers and images are quoted for reference only and do not imply that LED-Global replacement parts are supplied as original equipment.
