Blaue LED-Warnleuchte für Gabelstapler - LG857

Blue Spot LED Warning Light for Forklifts – LG857

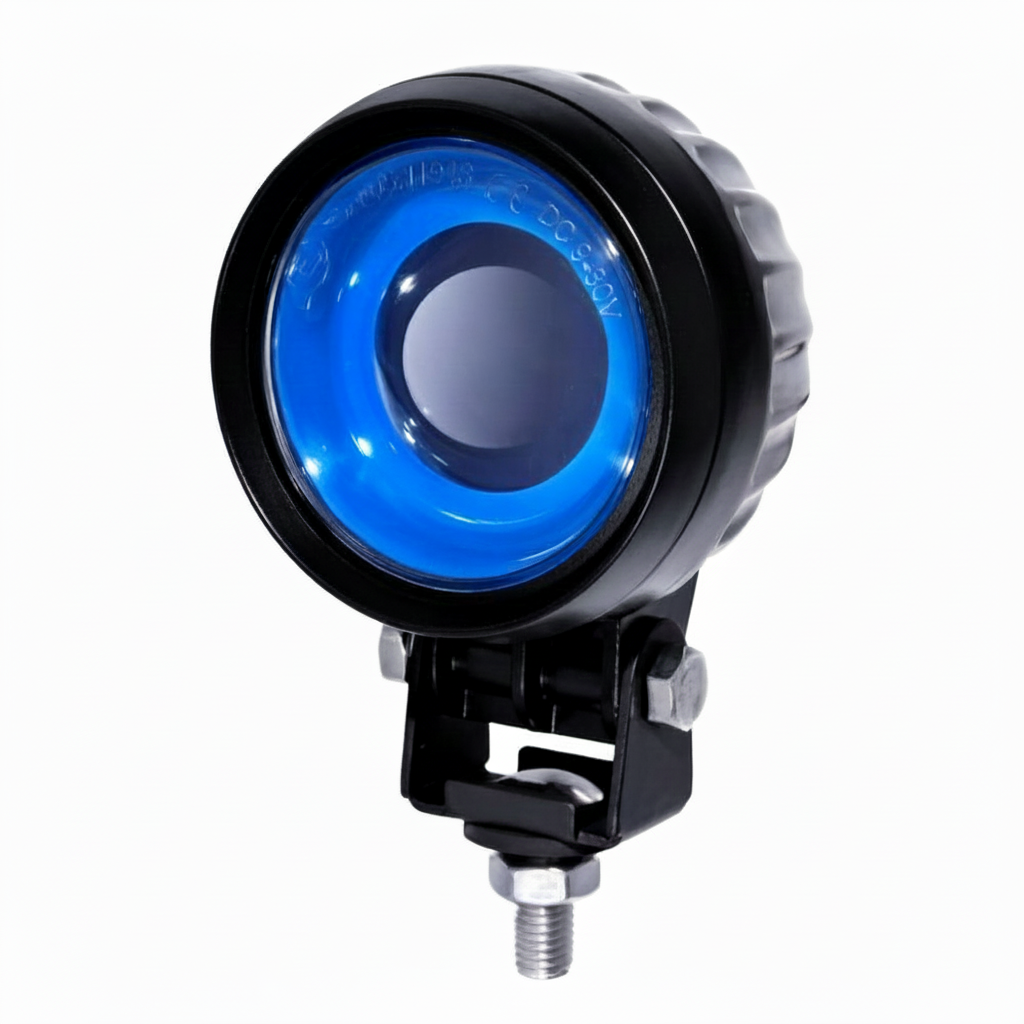

The LG857 Blue Spot LED warning light projects a crisp, highly visible spot on the floor so pedestrians know a forklift is coming before they hear it. It combines a tough die-cast aluminium work lamp housing, high-output 24 W CREE LEDs and proven ECE R10 / CISPR 25 Class 4 EMC performance. Ideal for warehouses, logistics centres and industrial sites that take collision prevention seriously.

The LG857 is built around a 24 W LED work light body and re-engineered as a pedestrian warning marker for forklifts and material handling equipment. It uses high intensity CREE XTE LEDs running at 10–32 V DC, so it works on both 12 V and 24 V trucks and electric forklifts without drama. With a cold white 6000 K output and up to 1,800 lumens of light, the spot beam cuts through bright warehouse lighting and glare.

The die-cast aluminium housing and compact footprint make it easy to mount on mast, overhead guard or rear frame. At 156 mm (W) x 122 mm (H) x 93 mm (D), it’s small enough to tuck out of harm’s way, yet large enough to stay cool and stable under continuous duty. A vibration test rating to 15 G and a 50,000 h LED lifespan mean it’s designed for the abuse forklifts see daily – potholes, dock plates and hard turns.

EMC performance matters in busy fleets. This blue spot lamp is ECE R10 approved and EMC – CISPR 25 Class 4 compliant, so it won’t interfere with radios, fleet telematics, weigh scales or other sensitive electronics. The IP68 rating keeps dust out and allows reliable operation in damp loading bays and washdown areas, without calling it “waterproof”. Supplied with a DT plug & play connector, wiring is straightforward for any competent auto electrician or in-house maintenance team.

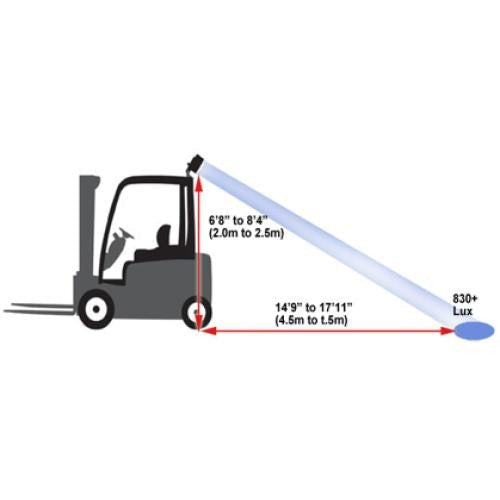

So what does this give you in practice? A clear, predictable visual safety zone projected on the floor in front of or behind the forklift. Pedestrians see the moving spot first, instinctively stop or look, and you get fewer near-misses at aisle crossings, blind corners and trailer entrances.

Key Features

• 24 W high intensity CREE XTE LEDs – strong, focused output for a bright, defined blue warning spot.
• 10–32 V DC operating range – suitable for 12 V and 24 V forklifts, reach trucks and electric pallet trucks.
• Up to 1,800 lumens – powerful light output to stand out against warehouse and yard lighting.
• Cold white 6000 K light colour – crisp, high-contrast beam that keeps the projected spot sharp and easy to see.
• Die-cast aluminium housing – robust body with good heat dissipation for 50,000 h rated LED life.
• IP68 ingress protection – fully dust-tight and protected against prolonged immersion, ideal for damp and dirty environments.
• ECE R10 approved – meets automotive EMC standards for use on road-going equipment.
• EMC – CISPR 25 Class 4 – high level of radio frequency suppression to protect radios and electronic control systems.
• Vibration tested to 15 G – engineered for harsh industrial use on masts and chassis that see constant shock and movement.
• Compact size 156 x 122 x 93 mm – easy to mount on forklift overhead guards, counterweights or side frames.
• Supplied with DT plug & play connector – simplifies installation, service and replacement.

Ideal Applications

• Forklifts and counterbalance trucks in warehouses, logistics hubs and distribution centres.
• Reach trucks, order pickers and VNA trucks needing floor-level pedestrian warning in narrow aisle operations.
• Electric pallet trucks and stackers operating in congested loading bays and cross-dock areas.
• Industrial tugs and yard tractors around loading docks where pedestrians and vehicles mix.
• Manufacturing plants and cold stores that require clear visual warnings in noisy or low-visibility environments.
