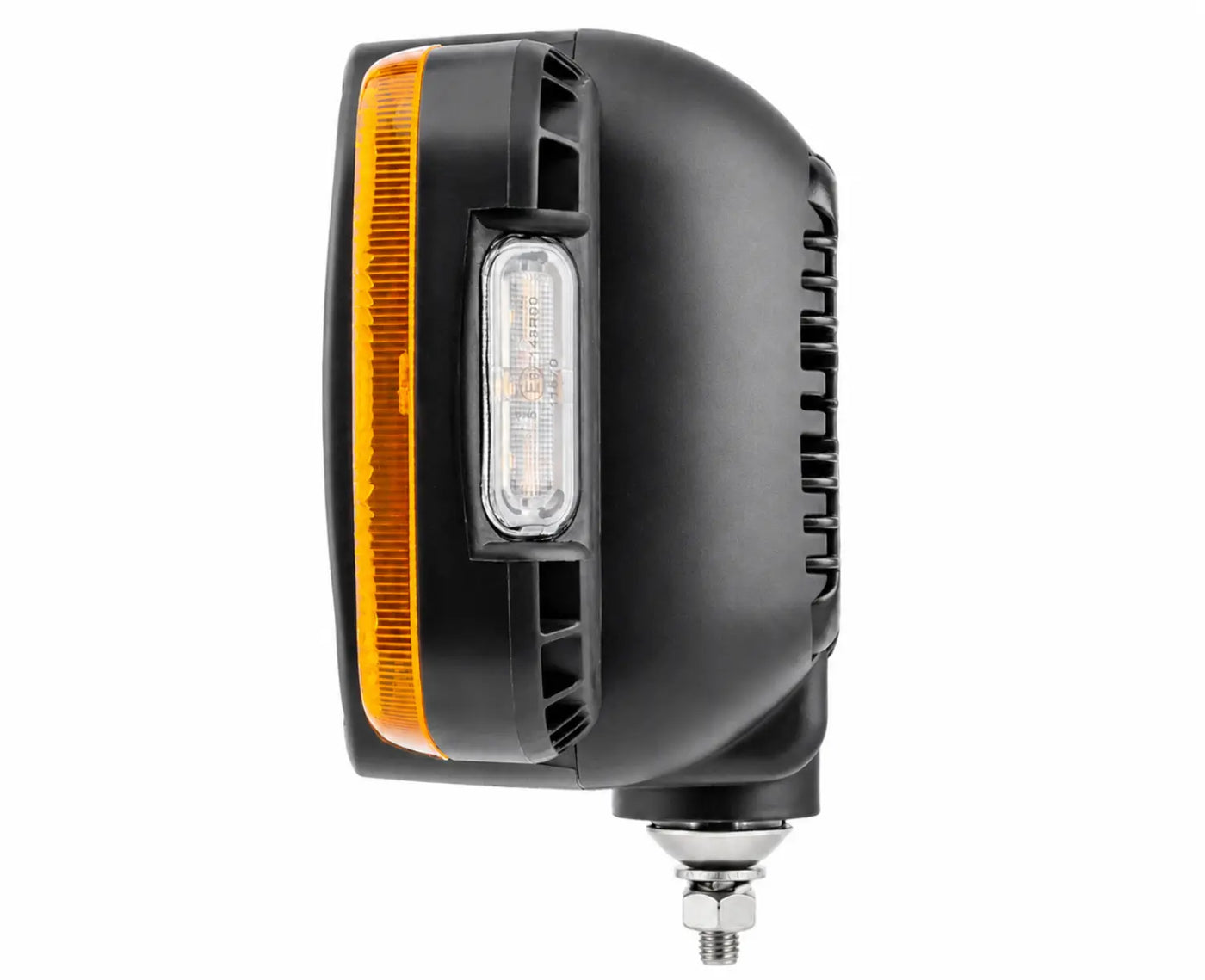

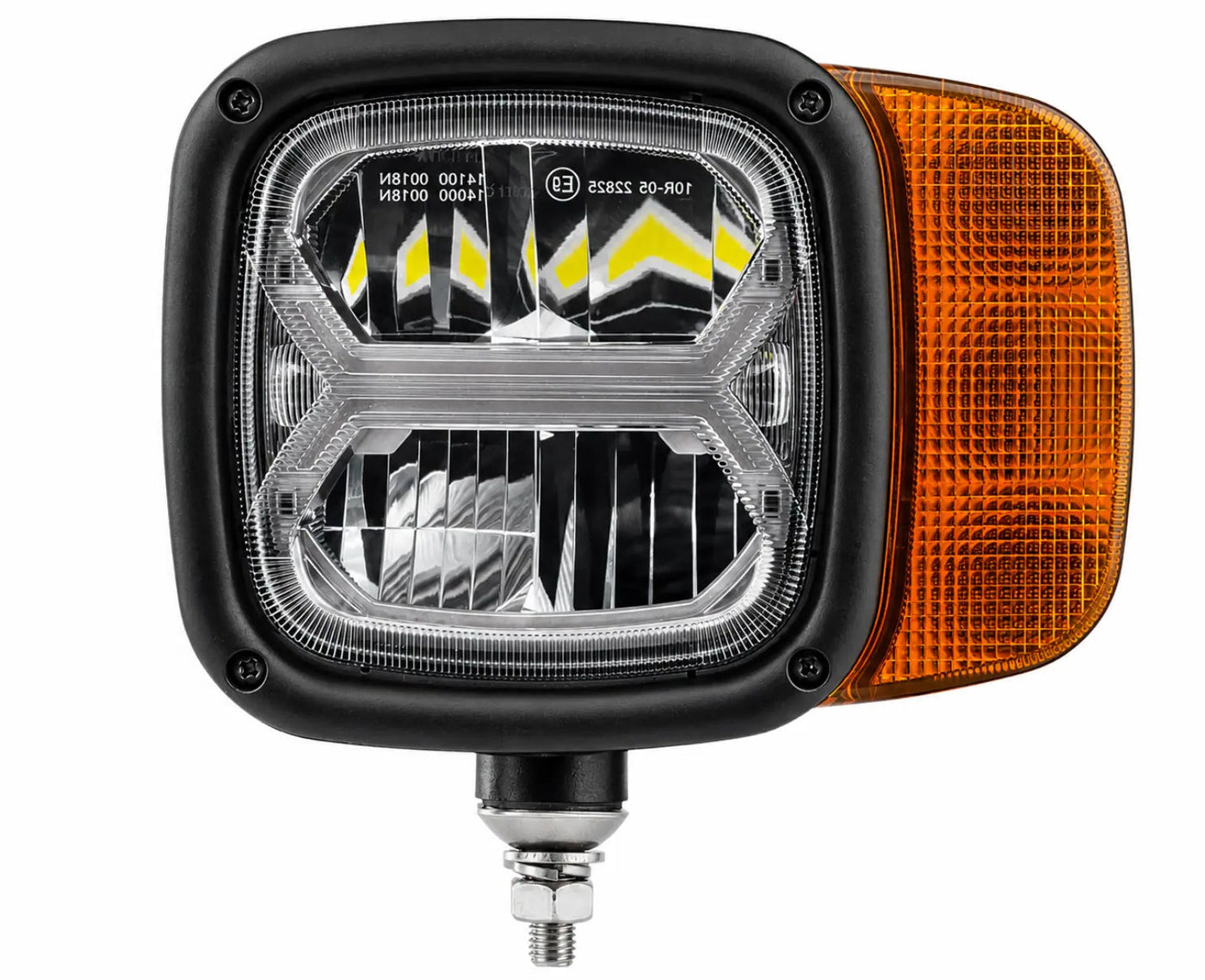

Combo LED Headlight EU Right Side Rear Mount – LG920RLEU

The LG920RLEU combo LED headlight is a right-side rear-mount headlamp designed for agricultural, construction, municipal, industrial and heavy-duty vehicles. It combines high beam, low beam, turn indicator, side direction indicator and parking light functions in one compact EU-approved unit.

With 10–30 V DC operation, IP69K protection, strong high and low beam output, ECE approvals and CISPR 25 Class 3 EMC performance, this headlight is built for professional 12 V and 24 V vehicle systems working in demanding European conditions.

Right-Side Rear Mount LED Headlight

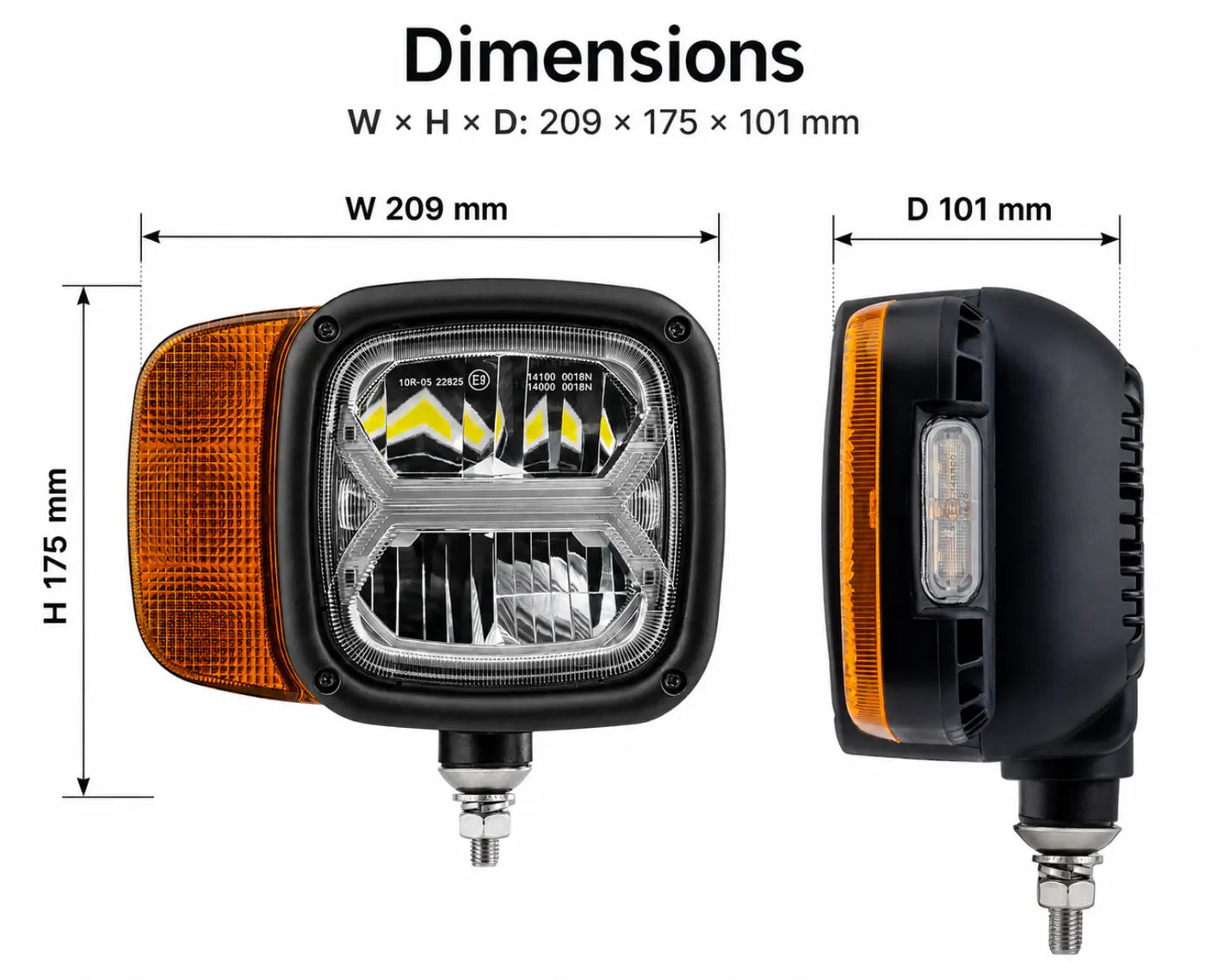

The LG920RLEU is designed for right-side installation with rear mounting. Its compact 209 × 175 × 101 mm housing makes it suitable for vehicles that need a powerful, integrated headlight and signalling solution without multiple separate lamps.

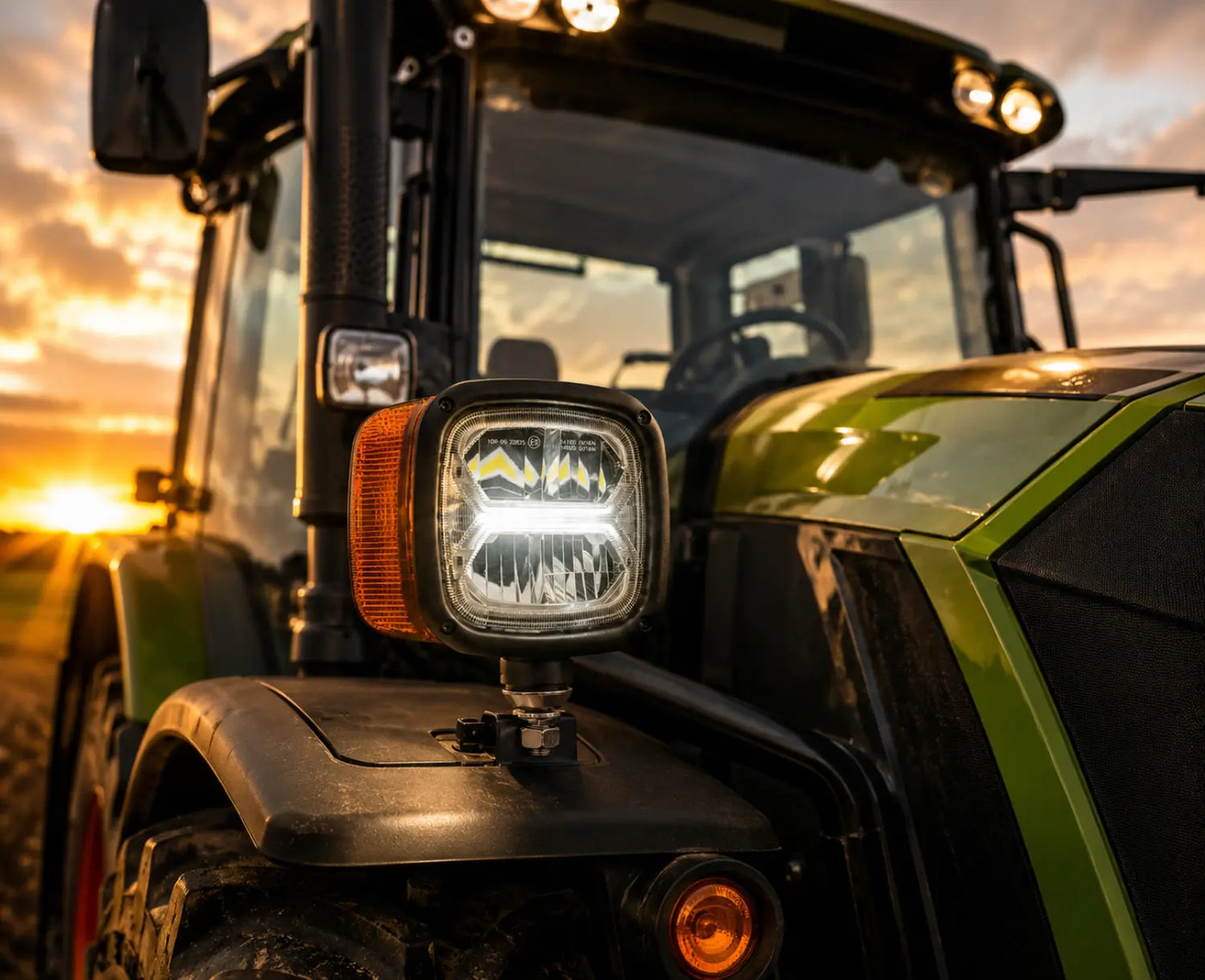

This makes it a practical option for tractors, telehandlers, loaders, municipal vehicles, recovery vehicles, construction machinery and special-purpose vehicle builds.

High Beam, Low Beam and Integrated Signalling

The lamp combines high beam, low beam, turn indicator, side direction indicator and parking light functions in one robust unit. This helps reduce wiring complexity, component count and possible failure points on professional working vehicles.

The high beam produces 7,000 lm raw output, while the low beam produces 4,000 lm raw output. This gives strong forward visibility for road travel, yards, tracks, depots, quarries and worksites.

Reliable Power for 12 V and 24 V Fleets

The wide 10–30 V DC voltage range makes the LG920RLEU suitable for both 12 V and 24 V electrical systems. This is useful for mixed fleets where one headlight type may need to support different vehicle platforms.

Power consumption is clearly defined: 64 W high beam, 40 W low beam, 28 W turn and side direction indicator, and 9 W parking light. This helps installers and fleet engineers plan wiring and electrical loads with confidence.

Built for Harsh Working Conditions

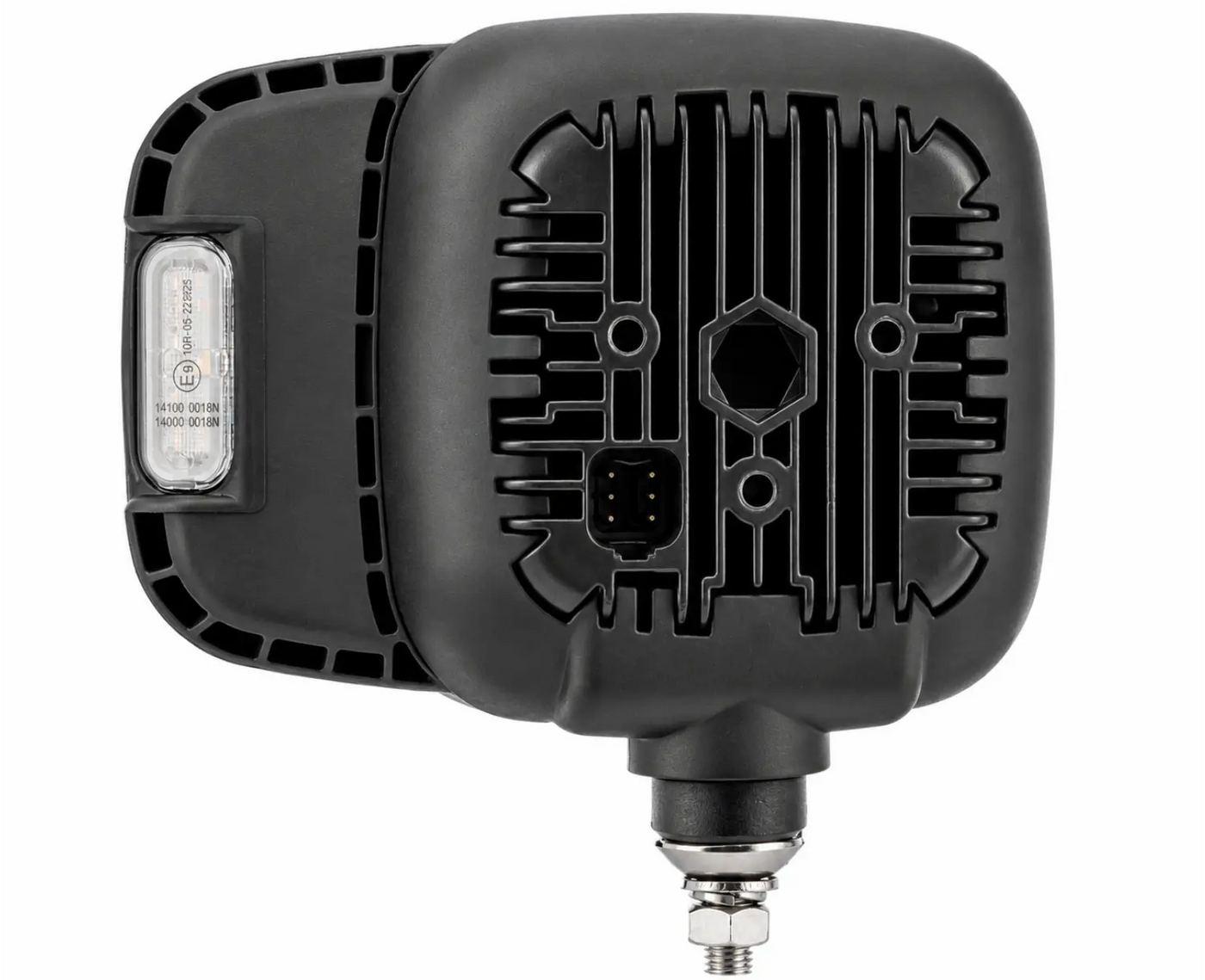

The headlight uses an aluminium alloy body, polycarbonate lens and stainless steel mounts for durability in demanding environments. It is designed to handle vibration, road salt, mud, slurry, dust and regular wash-down routines.

IP69K protection helps guard the unit against dust and high-pressure, high-temperature water cleaning. The operating temperature range of -45°C to +50°C supports reliable performance in cold winters, hot summers and year-round fleet use.

ECE Approved and EMC Safe

The LG920RLEU is approved to ECE R149, ECE R148 and ECE R10, with CE and RoHS compliance. These approvals support professional road-ready applications where the headlight is correctly installed and aligned.

CISPR 25 Class 3 EMC performance helps reduce interference with radios, GPS, telematics, CANbus systems and other sensitive onboard electronics.

Key Features

• Right-side combo LED headlight with rear mounting.
• High beam, low beam, turn indicator, side direction indicator and parking light in one unit.
• High beam raw output: 7,000 lm.
• Low beam raw output: 4,000 lm.
• Power: 64 W high beam, 40 W low beam, 28 W turn and side direction indicator, 9 W parking.
• 10–30 V DC input for 12 V and 24 V systems.
• Aluminium alloy housing for strength and durability.
• Polycarbonate lens for impact resistance.
• Stainless steel mounts for secure installation.
• IP69K protection against dust and high-pressure wash-down conditions.
• Operating temperature range from -45°C to +50°C.
• CISPR 25 Class 3 EMC performance.
• ECE R149 approval for headlamp function.
• ECE R148 approval for position and indicator lighting.
• ECE R10 approval for electromagnetic compatibility.
• CE and RoHS compliant.
• Supplied with DT 6-pin plug and cable.
• Compact size: 209 × 175 × 101 mm.

Ideal Applications

• Agricultural tractors, sprayers, harvesters and telehandlers.
• Construction and quarry machinery.
• Municipal vehicles, gritters, sweepers and maintenance trucks.
• Heavy trucks, low-loaders and recovery vehicles.
• Industrial yard equipment and special-purpose vehicles.
• Vehicle conversions where compact combo lighting simplifies wiring.
• Mixed 12 V and 24 V fleets needing EU-approved LED headlighting.

Why Choose the LG920RLEU Combo LED Headlight?

The LG920RLEU is designed for professional users who need a durable, EU-approved and multi-function LED headlight in a compact right-side rear-mount format. Its high output, integrated signalling, wide voltage range, IP69K protection, ECE approvals and EMC-safe design make it suitable for demanding agricultural, construction, municipal and industrial applications.

For fleet operators, bodybuilders, workshops and machinery owners, this combo LED headlight offers strong visibility, simplified installation and long-term durability in real working conditions.

Important Fitment Note

Please confirm the required side, rear mount layout, connector type, voltage system, original lamp shape and vehicle compatibility before ordering. This is the right-side rear-mount version. The lamp should be securely mounted, correctly wired and aligned in accordance with local road lighting regulations.
