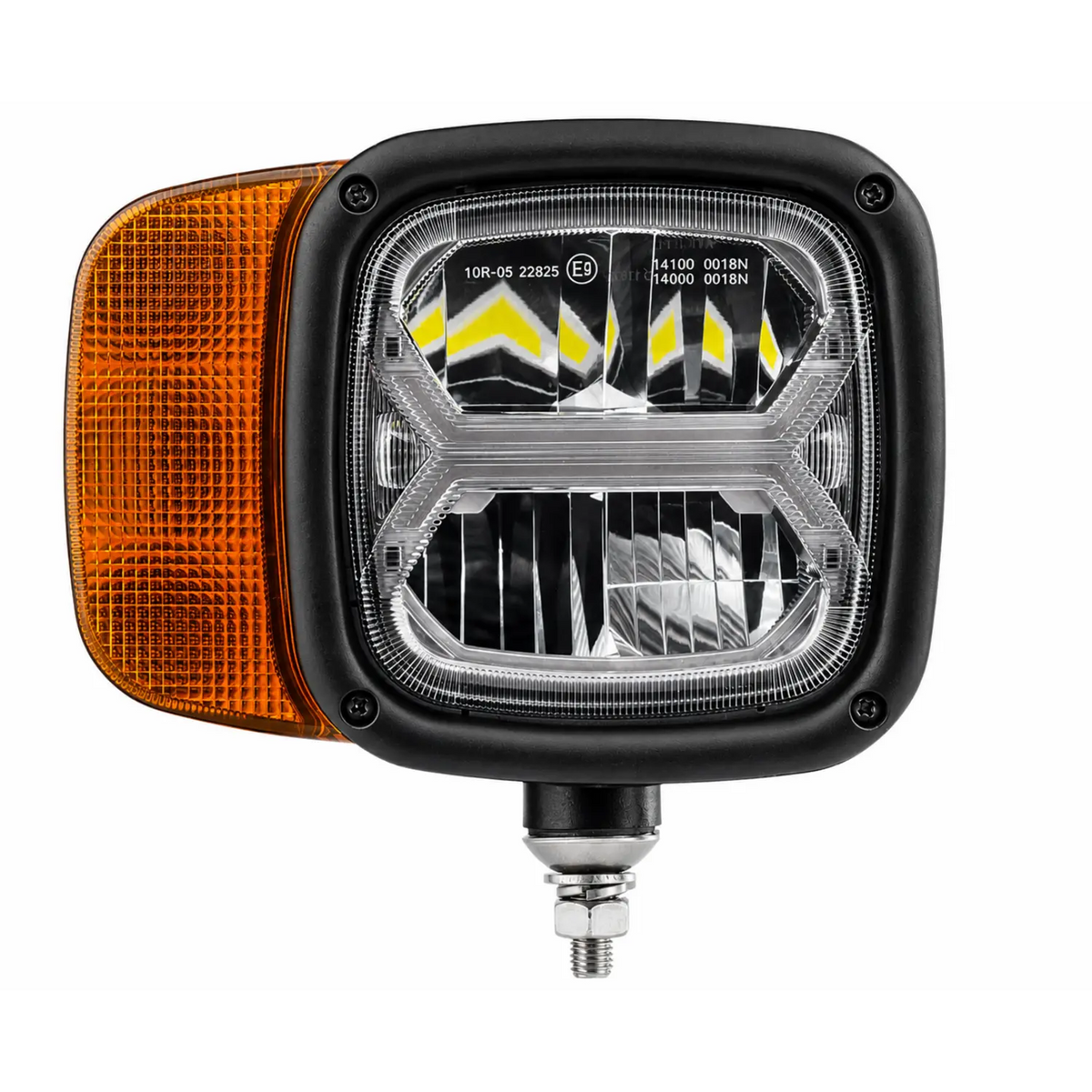

Combo LED Headlight EU Right Side Rear Mount – LG920RREU

The LG920RREU combo LED headlight is a right-side rear-mount headlamp designed for commercial, agricultural, construction, municipal and specialist vehicles. It combines high beam, low beam, turn indicator, side direction indicator and parking light functions in one compact EU-approved unit.

With 10–30 V operation, 7,000 lm high beam output, 4,000 lm low beam output, IP69K protection, ECE approvals and CISPR 25 Class 3 EMC performance, this headlight is built for professional 12 V and 24 V vehicle systems working in demanding European environments.

Right-Side Rear Mount Combo LED Headlight

The LG920RREU is designed for right-hand installation with rear mounting. Its compact 209 × 175 × 101 mm body makes it suitable for crowded front panels, OEM-style installations and retrofit upgrades where space is limited.

By combining multiple lighting functions into one housing, it helps reduce wiring complexity, component count and possible failure points on working vehicles.

High Beam, Low Beam and Integrated Signalling

This combo LED headlight provides high beam, low beam, turn indicator, side direction indicator and parking light functions in one assembly.

The high beam uses 64 W and delivers 7,000 raw lumens, while the low beam uses 40 W and delivers 4,000 raw lumens. The turn and side direction indicator functions use 28 W, and the parking light uses 9 W.

Suitable for 12 V and 24 V Systems

The wide 10–30 V input range makes the LG920RREU suitable for both 12 V and 24 V vehicle systems. This makes it practical for mixed fleets using trucks, tractors, plant machinery, municipal vehicles and specialist equipment.

The supplied DT 6-pin connector and cable help support a clean, secure and professional installation.

Built for Harsh Working Environments

The headlight is built with an aluminium alloy housing, PC polycarbonate lens and stainless steel hardware. This construction helps protect the unit against vibration, impact, corrosion and tough daily working conditions.

IP69K ingress protection means the lamp is designed to withstand dust, heavy spray and high-pressure, high-temperature wash-down conditions when correctly installed. The operating temperature range of -45°C to +50°C supports year-round use in demanding European climates.

ECE Approved and EMC Safe

The LG920RREU is compliant with ECE R149, ECE R112, ECE R148, ECE R7 and ECE R10. It is also CE and RoHS compliant, supporting professional road-ready installations where correctly fitted and aligned.

CISPR 25 Class 3 EMC performance helps reduce interference with radios, GPS, CAN systems, telematics and other sensitive vehicle electronics.

Key Features

• Right-side combo LED headlight with rear mounting.
• High beam, low beam, turn indicator, side direction indicator and parking light in one unit.
• 10–30 V input for 12 V and 24 V vehicle systems.
• High beam: 64 W with 7,000 raw lumens.
• Low beam: 40 W with 4,000 raw lumens.
• Turn and side direction indicator: 28 W.
• Parking light: 9 W.
• DT 6-pin connector and cable supplied.
• Aluminium alloy housing for strength and durability.
• PC polycarbonate lens for impact resistance.
• Stainless steel hardware for corrosion resistance.
• IP69K protection against dust, spray and high-pressure wash-down conditions.
• Operating temperature range from -45°C to +50°C.
• CISPR 25 Class 3 EMC performance.
• ECE R149 and ECE R112 headlamp approvals.
• ECE R148 and ECE R7 position light approvals.
• ECE R10 electromagnetic compatibility approval.
• CE and RoHS compliant.
• Compact size: 209 × 175 × 101 mm.

Ideal Applications

• Heavy trucks and haulage fleets.
• Agricultural tractors and self-propelled machinery.
• Construction and quarry equipment.
• Municipal vehicles, sweepers, refuse trucks and gritters.
• Utility vehicles and service vans.
• Specialist vehicle builds and OEM-style installations.
• Mixed 12 V and 24 V fleets requiring EU-approved combo LED headlights.

Why Choose the LG920RREU Combo LED Headlight?

The LG920RREU is designed for professional users who need a reliable, compliant and space-saving LED headlight solution. Its integrated lighting functions, strong beam output, wide voltage range, IP69K sealing, ECE approvals and EMC-safe design make it suitable for demanding commercial, agricultural, municipal and construction applications.

For fleet operators, installers, bodybuilders and workshops, this right-side rear-mount combo headlight offers a durable and practical lighting solution for vehicles that need dependable performance in real working conditions.

Important Fitment Note

Please confirm the required side, rear mount layout, connector type, voltage system, original lamp shape and vehicle compatibility before ordering. This is the right-side rear-mount version. The lamp should be securely mounted, correctly wired and aligned in accordance with local road lighting regulations.
