5-Zoll Kabelgebundenes Rückfahrkamera-Kit - LG9051

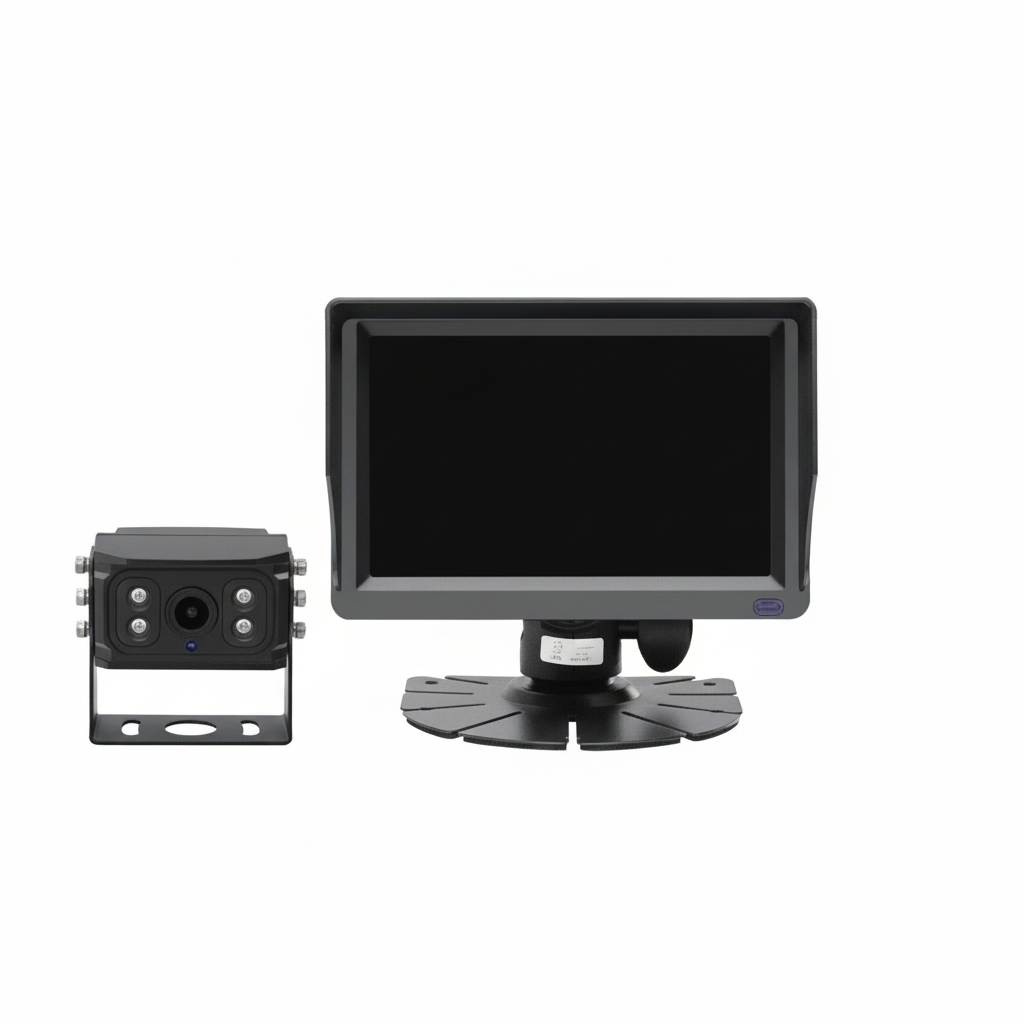

5-inch Wired Reversing Camera Kit – LG9051

This 5-inch wired reversing camera kit is built for professional drivers who need a clear view and a robust system that simply works. AHD 1080P imaging, a heavy-duty monitor and an IP69K camera give you sharp vision in harsh conditions, day and night. Ideal for vans, HGVs, plant, trailers and machinery where blind spots cost time, money and sometimes bodywork.

You know the problem. Tight yard. Poor light. Mirrors full of trailer and guesswork. The LG9051 reversing camera kit removes that guesswork with a 5-inch 16:9 monitor and a 1080P AHD camera, so you see exactly what’s behind you, not a grainy blur. The image is sharp at 800 × 480 RGB on the screen, driven by a camera running 1920 × 1080 effective pixels at 30 FPS for smooth motion.

The system is engineered for real working vehicles. The monitor runs on 12–24 V DC, so it suits mixed fleets from small delivery vans up to 24 V trucks and plant. A heavy-duty housing, compact design and private tooling mean this isn’t a rebadged consumer screen; it’s built to live in a cab that shakes, rattles and runs all day. The 4-pin GX12 connectors and 20 m combined power + video cable give a secure link from cab to rear body or trailer without improvising looms.

The camera itself is designed for rough service. With an IP69K rating, it withstands high-pressure, high‑temperature wash-downs and constant exposure to rain and road spray. A heavy-duty housing with adjustable U bracket makes aiming simple and keeps the camera locked on target. 4 × SMT infrared LEDs, an IR cut filter, AGC (automatic gain control) and BLC (back light compensation) give you 0 lux performance with the IR active, so you still see when the yard lights are off and the sky is black.

Installation is straightforward for any competent auto electrician. One cable. One 4‑pin link. The monitor supports 2 video channels, so you can add a second camera later, for example a side or forward camera, without swapping the display. The system accepts both AHD and CVBS input, which means it’s compatible with a wide range of existing analogue cameras if you’re upgrading an older kit.

Key Features

• 5-inch 16:9 monitor for a compact, clear reversing view that fits neatly in busy dashboards.
• Display resolution 800 × 480 RGB for crisp on-screen detail when manoeuvring close to obstacles.
• Dual video input (2 channels) to run a second camera, such as side or forward-facing, from the same screen.
• Wide voltage range 12–24 V DC, ideal for mixed fleets running both light commercial and heavy goods vehicles.
• AHD & CVBS compatible monitor input, allowing use with modern AHD cameras or legacy analogue (CVBS) cameras.
• 1080P AHD camera (1920 × 1080 pixels) delivering high-definition clarity, so pedestrians, bollards and tow hitches are easy to identify.
• IP69K-rated camera housing, engineered to withstand high-pressure wash-downs and constant road grime.
• 4 × SMT IR LEDs with IR cut filter, providing 0 lux night vision and natural colour by day.
• 120° wide-angle field of view, giving a broad picture behind the vehicle without extreme distortion.
• Heavy-duty housings and 4-pin GX12 connectors for a stable, vibration-resistant connection on working vehicles.
• Included 20 m power + video cable, long enough for most vans, trucks and trailers without extra extensions.

Ideal Applications

• Delivery vans and LCV fleets needing reliable reversing vision in depots, city streets and loading bays.
• HGVs, tippers and rigid trucks where rear blind spots make low-speed manoeuvres risky and expensive.
• Agricultural and construction machinery operating in muddy, low‑light yards and around ground workers.
• Box bodies, refrigerated units and trailers where a rear camera dramatically reduces impact damage.
• Municipal and utility vehicles working in tight residential streets and busy public areas.
