5-Zoll kabelloses Rückfahrkamera-Kit - LG9012

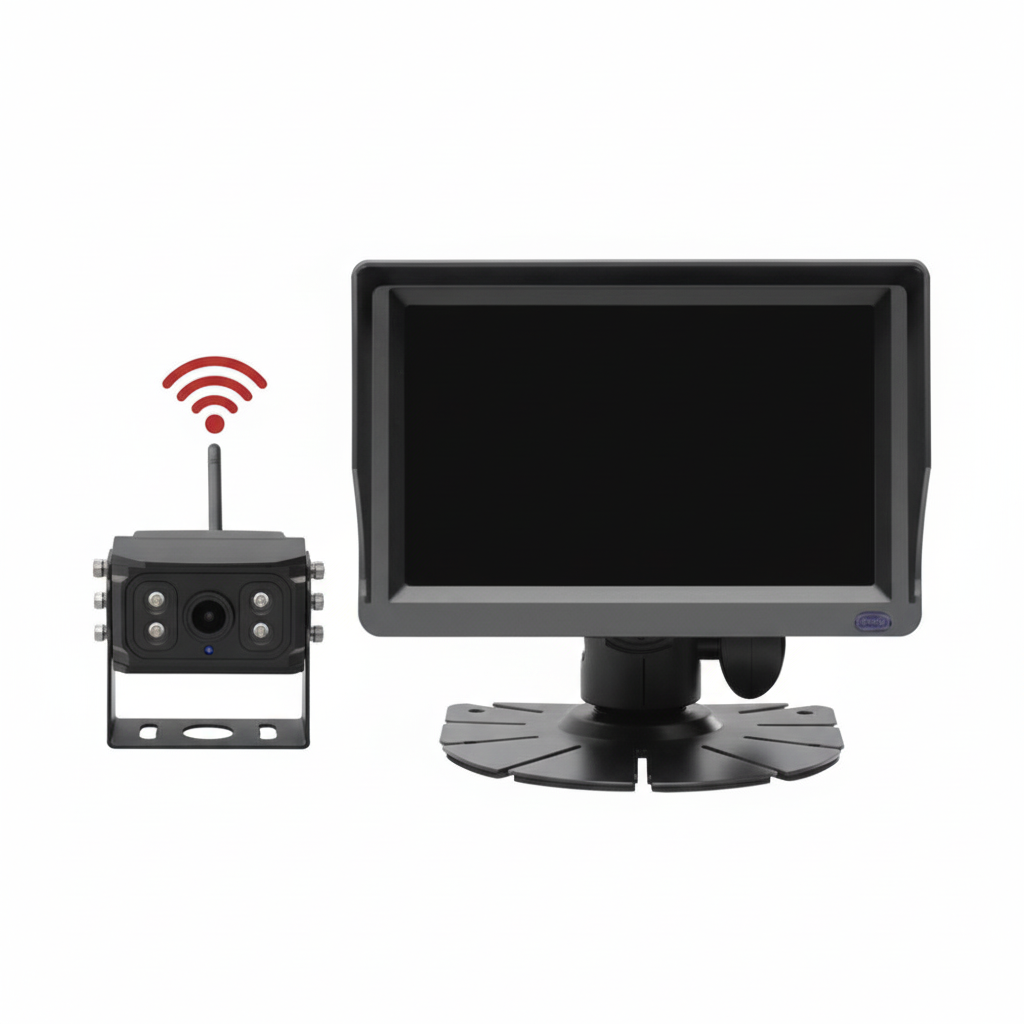

5-inch Wireless Reversing Camera Kit – LG9012

The 5-inch wireless reversing camera kit LG9012 is built for professional drivers who need a clear, stable view behind the vehicle without running long video cables. A 5" digital TFT monitor, 720P wireless camera and heavy-duty housings give you a robust, practical solution for vans, trucks, plant and trailers. Designed for 12–24 V systems, it supports up to four camera channels for full coverage around the vehicle.

A reversing camera is only useful if the picture is sharp and stable. This kit delivers a 5-inch digital TFT LCD with an 800 × 480 RGB panel, so operators see clear detail when backing into tight yards, docking bays or busy sites. The 16:9 aspect ratio gives a modern wide image, while the menu is controlled via OSD (On-Screen Display), so set-up is fast and straightforward for any installer or fleet electrician.

The LG9012 monitor accepts up to 4 channels and can display single, split, triple or quad views. That means you can start with one rear camera, then add side or front cameras later without changing the screen. It supports both AHD and CVBS video signals, so it’s compatible with a wide range of automotive cameras. Heavy-duty monitor housing and a 4-pin GX12 connector give a secure, vibration-resistant connection on working vehicles.

At the back, the 720P wireless camera uses a 1/3" AHD sensor with 4 super IR LEDs to support reversing in low light and yard conditions. A 120° wide-angle lens gives a broad field of view without the extreme distortion you see on cheap kits, while a 30 FPS frame rate keeps motion smooth and predictable for the driver. The camera housing is IP69K rated, so it’s protected against high-pressure, high-temperature wash-down – ideal for tippers, agri kit and construction equipment that get cleaned hard and often.

Because the video link is wireless at 2.4 GHz, there’s no long video cable to run through the chassis or trailer body. You simply provide power to the monitor and to the camera using the supplied 12–24 V power cable set, mount the wireless antenna, and pair the system. That saves labour on installations, reduces potential failure points and makes retrofitting to existing fleets much easier, especially on long wheelbase vehicles, trailers and plant machinery.

Key Features

• 5-inch digital TFT LCD monitor with 800 × 480 RGB resolution for sharp, reliable reversing images
• 16:9 widescreen display for a natural, modern field of view
• Supports up to 4 camera channels with single, split, triple and quad display modes – ideal for rear, side and front coverage
• AHD and CVBS signal support for broad compatibility with automotive cameras and future system expansion
• 12–24 V DC power supply – suitable for cars, vans, HGVs, buses, agricultural and construction machinery
• Heavy-duty monitor housing with 4-pin GX12 connector for secure, vibration-resistant installation
• 720P wireless reversing camera with 1/3" AHD image sensor for clear, detailed pictures
• 2.4 GHz wireless transmission – no video cable required between camera and monitor, reducing installation time
• IP69K-rated camera housing for protection during high-pressure, high-temperature wash-down and harsh on-site conditions
• 4 super IR LEDs for improved low-light performance when reversing at night or in unlit yards
• 120° wide-angle lens balancing wide coverage with usable depth perception for the driver
• 30 FPS frame rate for smooth video without distracting stutter
• 12/24 V compatible camera power input via pigtail for flexible wiring into existing vehicle loom

Ideal Applications

• Light commercial vans and box bodies needing a clean retrofit wireless reversing camera with minimal cable runs
• Rigid trucks, tippers and refuse vehicles where full wash-down and harsh operating environments demand an IP69K camera housing
• Agricultural tractors, telehandlers and trailers where long chassis or implements make wired video runs awkward
• Construction plant, loaders and site vehicles operating in dusty, muddy conditions with frequent cleaning
• Horseboxes, motorhomes and caravans where running video cable through finished interiors is undesirable

Why Choose LED-Global Lighting

LED-Global builds systems for people who work with vehicles every day – fleet managers, fitters, and operators who can’t afford unreliable kit. Our products are engineered in Europe, tested in real commercial environments, and specified with clear, honest data so you know exactly what you’re fitting. With the LG9012 wireless reversing camera kit, you get robust hardware, practical installation, and support from a team that speaks your language – both technical and operational.
