Kombiniertes LED-Scheinwerfer (EU) - rechte Seite, untere Montage - LG920R EU - LG920REU

Combo LED Headlight (EU) – Right Side, Bottom Mount – LG920R EU

This EU-approved combo LED headlight delivers powerful high/low beam, integrated turn and side direction indicator, and parking light in one robust unit. Designed for industrial and agricultural machinery that work long hours in harsh environments, it gives strong road-legal light output with low maintenance. Fully compliant for European road use with ECE R149 / R148 / R10 approvals and IP69K ingress protection.

The LG920R EU is built for operators who need one reliable right-hand LED headlamp that simply does its job, every shift. High beam output of 7 000 lm and low beam of 4 000 lm give clear, wide illumination for work roads, farm tracks and site access, while the integrated indicator, side direction indicator and parking function keep the vehicle compact and tidy. No extra pods bolted on, no messy wiring hanging off the cab.

Electrical compatibility is broad. The light runs on 10–30 V DC, so it’s at home on 12 V and 24 V systems across tractors, telehandlers, loaders, specialist plant and municipal trucks. The raw power draw is 64 W (high beam), 40 W (low beam), 28 W (turn + side DI) and 9 W (parking), which suits modern alternators and keeps load planning predictable for fleet electricians.

Mechanically, it’s built to last. A corrosion‑resistant aluminium alloy body, polycarbonate lens, and stainless steel mounting hardware give the sort of durability you want on machines that live outdoors year‑round. The IP69K rating means it stands up to high-pressure, high-temperature washdowns and fine dust, and the −45 °C to +50 °C operating range covers cold Scandinavian winters and hot southern European summers. With CISPR 25 Class 3 EMC, it’s engineered not to interfere with radios, control systems or GPS equipment.

This version is the right-side, bottom mount variant, with a compact footprint of 209 × 175 × 101 mm (W × H × D). The supplied DT 6‑pin plug and cable makes installation straightforward for any competent auto electrician or workshop technician. Bolt it on, connect to your loom, and you have a clean, professional, road‑legal lighting solution that looks like it came from the factory.

Key Features

• EU-compliant combo LED headlight with high beam, low beam, turn signal, side direction indicator and parking light in one unit

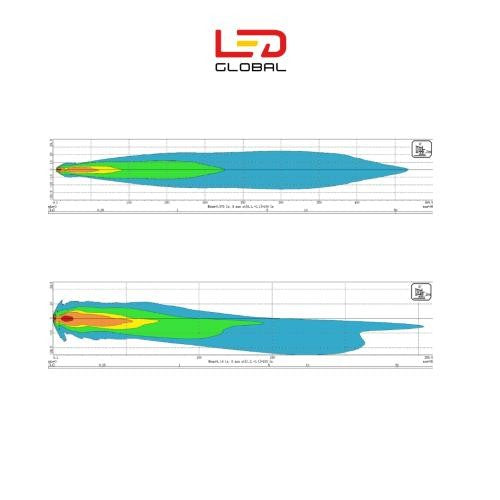

• High output beam pattern – 7 000 lm (high beam) and 4 000 lm (low beam) for clear visibility on roads, farm tracks and job sites
• Wide input voltage 10–30 V DC, suitable for both 12 V and 24 V electrical systems on industrial and agricultural vehicles
• Defined power consumption – 64 W high beam, 40 W low beam, 28 W turn + side DI, 9 W parking for easy load calculation and wiring design
• Heavy‑duty construction with aluminium alloy housing, polycarbonate lens and stainless steel mounts for long service life in corrosive conditions
• IP69K ingress protection, engineered to resist high‑pressure, high‑temperature washdowns and fine dust in real fleet environments
• Wide operating temperature from −45 °C to +50 °C, proven for use in extreme cold and hot climates
• EMC compliant – CISPR 25 Class 3, reducing the risk of interference with radios, CAN‑bus, GPS and other sensitive electronics
• ECE approvals for road use: ECE R149 (replaces R112) for headlamp, ECE R148 (R7) for position/indicator, plus ECE R10, CE and RoHS

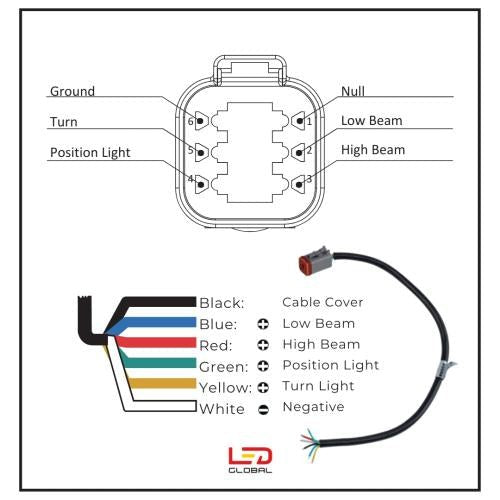

• Right-side, bottom mount design, supplied with DT 6‑pin plug + cable, and compact 209 × 175 × 101 mm body for neat installation

Ideal Applications

• Agricultural tractors, harvesters and sprayers needing robust, road‑legal LED headlamps with integrated indicators
• Construction and quarry machines such as loaders, telehandlers and dumpers that require high output lighting and compact signalling
• Municipal and utility vehicles – gritters, sweepers, refuse trucks and maintenance fleets operating in all‑weather conditions
• Industrial plant and yard equipment where washdowns, dust and vibration demand IP69K‑rated lighting
• Specialist and custom vehicle builds where a single, multi‑function EU‑approved right‑hand headlight simplifies design and wiring

Why Choose LED-Global Lighting

LED-Global focuses on European‑engineered lighting for fleets that cannot afford downtime. Every unit is specified with honest lumen figures, clear approvals and practical mounting options, so electricians and workshop managers know exactly what they’re fitting. Products like the LG920R EU are tested in real working environments, backed by consistent quality control and a team that understands how plant, agricultural and municipal vehicles are actually used.
