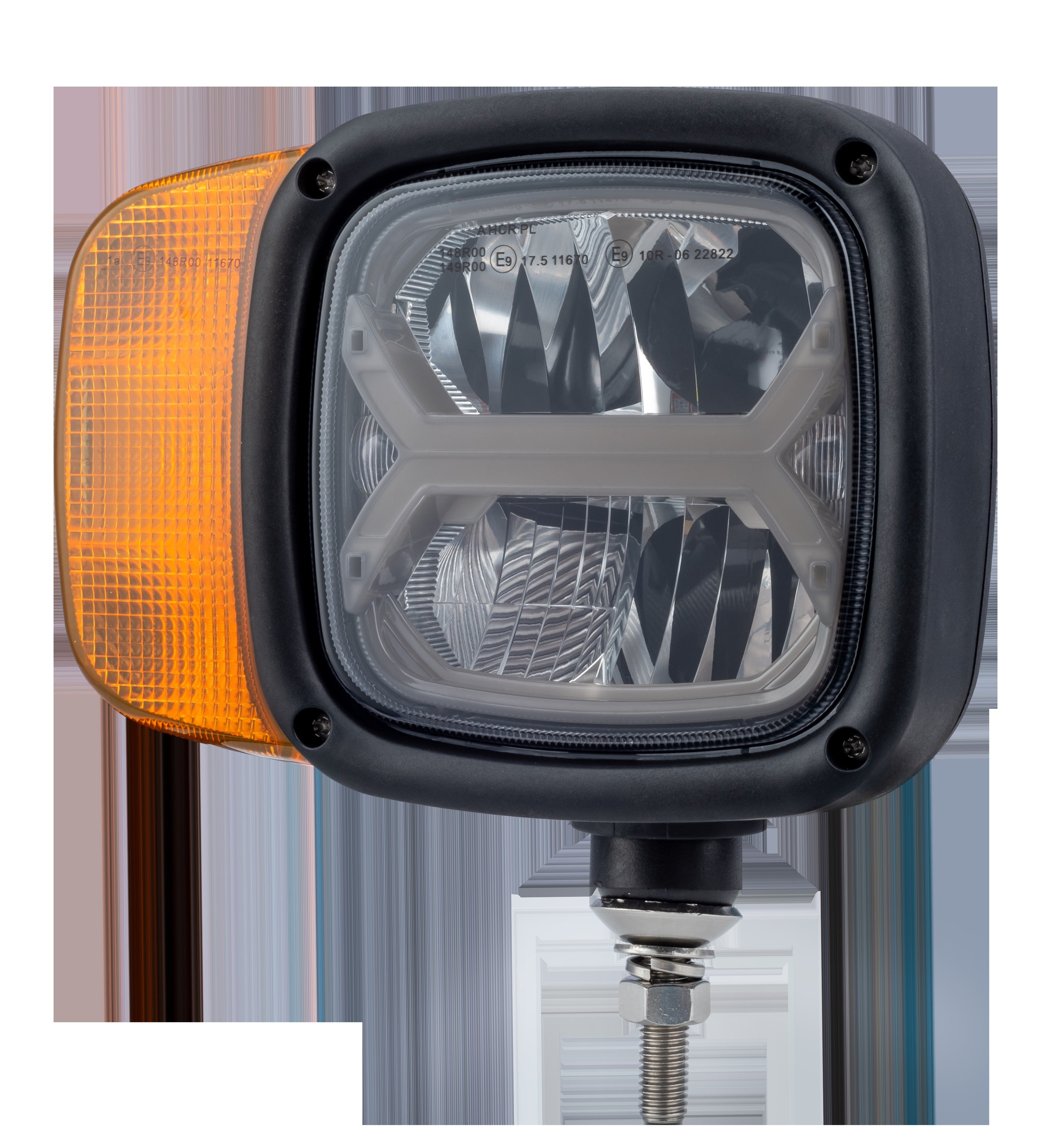

Combo LED Headlight (EU) – Left Side, Bottom Mount – LG920L EU

Heavy‑duty combo LED headlight for the left side with bottom mounting, engineered for industrial and agricultural vehicles that work through long shifts and harsh conditions. Delivers powerful high/low beam, integrated indicator and side direction light, plus parking light in one compact, EU‑approved unit. Fully compliant for road use with ECE R149 / R148 / R10 approvals and IP69K ingress protection.

This LG920L EU combination headlamp is built for machines that don’t get an easy life. Tractors, telehandlers, construction kit – anything that sees mud, dust, high‑pressure washing and vibration. The 10–30 V DC operating range covers both 12 V and 24 V fleets, so one part number can support mixed machinery without headaches for your installers or stores.

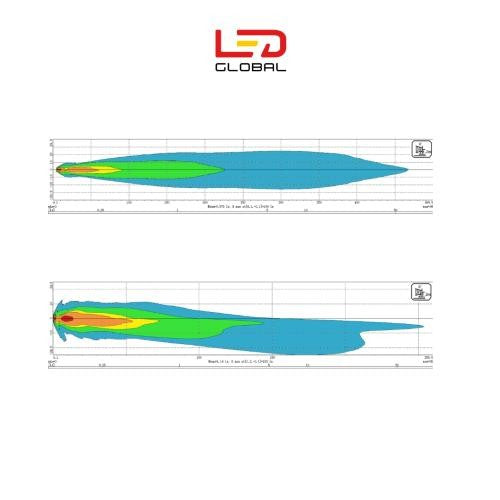

On light output, it’s no compromise. You get 7 000 lm raw high beam and 4 000 lm raw low beam, with clear, efficient optics designed for road‑compliant beam patterns under ECE R149 (R112). The integrated turn and side direction indicator and parking function keep the lamp count down on the vehicle, simplify wiring, and reduce potential failure points. Fewer housings. Fewer brackets. Less downtime.

The body uses a corrosion‑resistant aluminium alloy housing with a tough polycarbonate lens and stainless steel mounts, so it copes with fertiliser, road salt, and daily jet‑washing. Rated to IP69K, it’s sealed against dust and high‑pressure hot water, and the −45 °C to +50 °C temperature range means it’s proven from Nordic winters to Southern European summers. EMC performance meets CISPR 25 Class 3 and ECE R10, so you avoid interference with radios, CAN‑bus systems and control electronics.

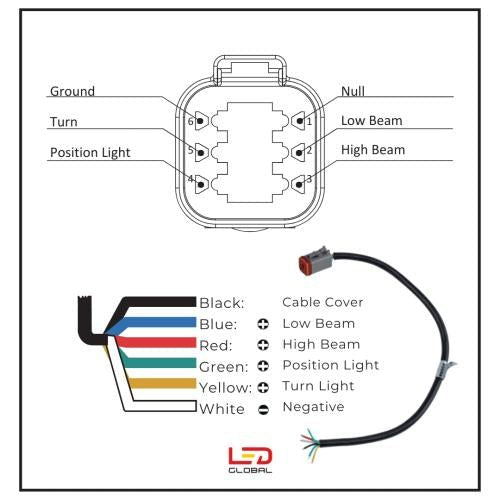

This model is the left‑hand unit with bottom mount, sized at 209 × 175 × 101 mm, making it straightforward to integrate where you need a compact but serious headlamp cluster. Supplied with a DT 6‑pin plug and cable, it drops neatly into professional installations and retrofit projects without improvised connectors.

Key Features

• Multi‑function LED headlight: high beam, low beam, turn indicator, side direction indicator, and parking light in one compact housing to cut component count.
• High light output: 64 W high beam / 40 W low beam / 28 W turn + side DI / 9 W parking, delivering 7 000 lm (high) and 4 000 lm (low) of raw luminous output for strong visibility.
• Wide voltage range 10 – 30 V DC: ideal for mixed 12 V and 24 V fleets across agricultural, industrial, and construction vehicles.
• Heavy‑duty construction: aluminium alloy body, polycarbonate lens, and stainless steel mounts for long‑term resistance to vibration, chemicals, and impacts.
• High ingress protection – IP69K: sealed against dust and designed to withstand high‑pressure, high‑temperature washdown, perfect for farm and site cleaning routines.
• Wide operating temperature −45 °C to +50 °C: proven performance in extreme cold and heat across European climates.
• EMC safety: compliant with CISPR 25 Class 3 and ECE R10, helping prevent electrical noise on vehicle communication and radio systems.
• Road‑legal approvals: ECE R149 (ECE R112) for headlamp functions and ECE R148 (ECE R7) for position/indicator lighting, plus CE and RoHS compliance.
• Bottom mount, left‑side configuration: designed for left side installation with bottom mounting, simplifying correct orientation and replacement.
• Compact footprint: 209 × 175 × 101 mm size offers strong output in a manageable package for OEM integration and retrofits.

Ideal Applications

• Agricultural machinery: tractors, sprayers, harvesters and telehandlers needing robust, EU‑approved LED headlighting with integrated indicators.
• Construction and earth‑moving equipment: wheel loaders, excavators, dumpers and road rollers working long hours on and off road.
• Municipal and utility vehicles: sweepers, refuse trucks, service vans and maintenance vehicles that demand reliable combo headlights.
• Industrial and yard equipment: terminal tractors, tug units, and material‑handling machines operating in dusty, wet or wash‑down environments.
• Retrofit upgrades: replacing ageing halogen or sealed‑beam units with modern, efficient LED headlamps on mixed 12/24 V fleets.

Why Choose LED-Global Lighting

LED‑Global focuses on European‑engineered, professional‑grade lighting for people who rely on their vehicles to earn a living. Every product is selected and tested with real‑world use in mind – from approvals and EMC performance to how it stands up to years of mud, salt and washing. With clear specifications, consistent quality and technical support from an engineering‑led team, you get lighting that simply works, shift after shift, season after season.
