Combo LED-Scheinwerfer (EU) - linke Seite, Heckmontage - Lg920rl EU - LG920RLEU

Combo LED Headlight (EU) – Right Side, Rear Mount – LG920RLEU

This EU-approved combo LED headlight delivers powerful high/low beam, turn, side direction indicator and parking light functions in one compact unit. Built for right-side, rear-mount fitment, it’s designed for professional fleets that need reliable road-legal lighting under hard, daily use. With ECE approvals, CISPR 25 EMC control and IP69K protection, it’s engineered for European roads and harsh working environments.

If you run plant, agricultural or heavy road vehicles, you know poor lighting costs time and money. This combo LED headlamp solves that by combining 7,000 lm high beam and 4,000 lm low beam output with integrated signalling, all running from 10–30 V DC systems. One robust housing, multiple functions, less wiring and fewer failure points.

The LG920RLEU uses a die-cast aluminium alloy body and a polycarbonate lens, so it shrugs off vibration, stone chips and pressure washing. Rated IP69K, it stays dust-tight and withstands high-pressure, high-temperature water jets, which is exactly what you want when vehicles are washed daily or work in mud, slurry or winter road salt. Stainless steel mounts lock it in place on rear-mount brackets, with a clear right-side orientation for correct beam pattern on EU roads.

Electrically, it’s stable across mixed fleets. The wide 10–30 V DC range covers 12 V and 24 V systems, and the DT 6‑pin plug with cable keeps installation tidy. Power draw is predictable: 64 W high beam, 40 W low beam, 28 W turn + side indicator, and 9 W parking light, so you can spec alternators and looms with confidence. Operating between −45 °C and +50 °C, this unit is proven in winter service work, forestry, quarry operations and hot-road summer shifts.

Safety and compliance are baked in, not an afterthought. The headlight is approved to ECE R149 (includes R112) for high/low beam performance, ECE R148 (includes R7) for signalling and parking functions, and ECE R10 for electromagnetic compatibility, so it won’t interfere with radios, GPS or telematics. CISPR 25 Class 3 EMC grade adds another layer of assurance for sensitive modern electronics. CE and RoHS compliance match European procurement requirements and make it straightforward for fleet engineers to sign off.

Key Features

• EU-approved combo LED headlight with high beam, low beam, turn, side direction indicator and parking light in one housing
• 10 – 30 V DC input suitable for mixed 12 V and 24 V commercial and off‑highway fleets
• High output LEDs delivering 7,000 lm high beam and 4,000 lm low beam for clear night and bad-weather visibility
• Defined power consumption: 64 W high beam, 40 W low beam, 28 W turn + side DI, 9 W parking for easy electrical planning
• Ingress protection IP69K – sealed against dust and resistant to high-pressure, high-temperature washdown, ideal for plant and municipal fleets
• Robust construction with aluminium alloy body, polycarbonate lens and stainless steel mounts for long life under vibration
• Rear mount – right side configuration for correct ECE-compliant beam pattern on EU vehicles

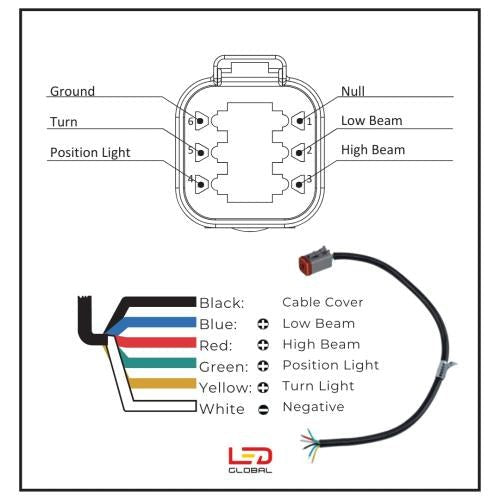

• Supplied with DT 6‑pin plug + cable for fast, clean installation and straightforward replacement in the field
• EMC-safe design meeting CISPR 25 Class 3 and ECE R10, helping protect radios, CANbus and telematics from interference
• Approved to ECE R149 (incl. R112), ECE R148 (incl. R7), CE and RoHS, supporting road-legal and environmentally compliant installations
• Compact footprint with dimensions 209 × 175 × 101 mm (W × H × D), making it suitable for tight bodywork and retrofit projects

Ideal Applications

• Agricultural tractors, sprayers and telehandlers needing robust, road-legal front lighting with integrated indicators
• Construction and quarry machinery where vibration, dust and aggressive washdown are daily realities
• Municipal and utility vehicles such as gritters, sweepers and maintenance trucks working year-round in all weather
• Heavy trucks, low-loaders and recovery vehicles that require reliable LED headlamps for night operations
• Special-purpose vehicles and conversions where space-saving combo lights simplify wiring and approvals

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered, approval-led lighting that stands up to real site conditions, not just catalogue claims. Every unit is built to repeatable standards, with clear data sheets, recognised ECE approvals and EMC control, so fleet managers and installers know exactly what they’re fitting. When you choose LED-Global, you get proven products, consistent specifications and long-term parts support, all from a specialist dedicated to high-performance vehicle lighting.
